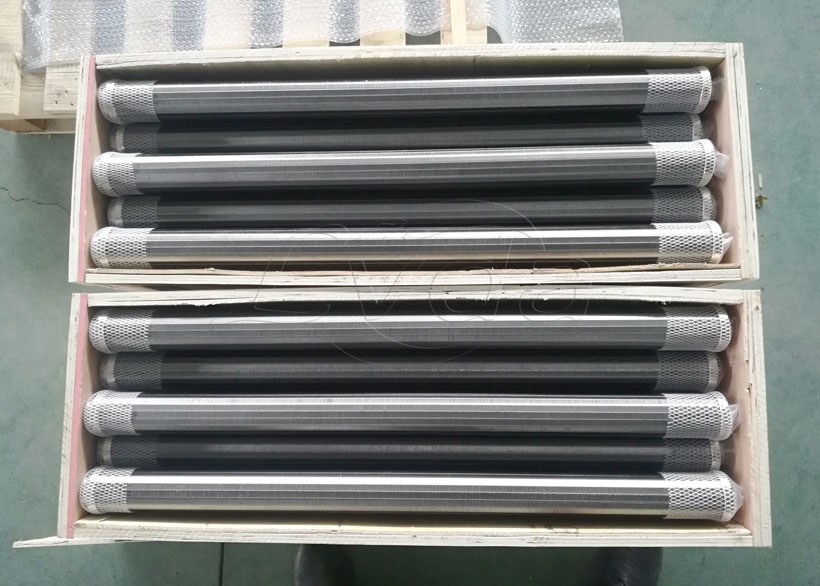

LVDA Wedge Wire Filters superior in precision and durability

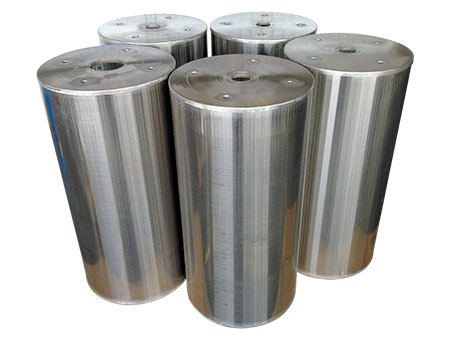

Technological Excellence and Product Quality

Core Technological Breakthroughs

The foundation of LVDA’s success lies in its proprietary V-shaped wedge wire welding technology. Unlike traditional rectangular wire filters, LVDA employs fully automatic laser welding to seamlessly join high-precision trapezoidal wires with support bars. This creates uniformly distributed wedge-shaped filtration gaps that offer superior structural stability and filtration accuracy.

· Filtration Precision: The filter elements offer a customizable accuracy range from 25 to 800 microns, with the capability to achieve fine filtration down to 20 microns when combined with filter aids. The gap error is strictly controlled within 5 microns, ensuring consistent performance.

· High Flux Capacity: The unique V-shaped groove structure acts as a flow guide, increasing the effective filtration area by more than 50% compared to traditional wound filter elements. This design doubles the flow rate under identical operating conditions while preventing clogging.

· Self-Cleaning Mechanism: The "outer-wide, inner-narrow" gap design ensures that impurities are trapped on the outer surface while allowing fluid to flow inward smoothly. Under pressure differentials, this facilitates efficient backwashing, where only 2-5% of the total flow is required for cleaning, significantly reducing maintenance frequency.

2 Material Superiority and Durability

LVDA filter elements are engineered to withstand the harshest industrial environments. The company utilizes premium materials including 304 and 316L stainless steel, Hastelloy, titanium alloys, and low-carbon steel.

· Corrosion Resistance: These materials provide excellent resistance to strong acids, alkalis, and high-temperature steam, operating effectively across a pH range of 0-14.

· Thermal and Pressure Stability: The filters can withstand temperatures up to 480°C (with specific customizations reaching 600°C) and pressures up to 8MPa (with some designs handling instantaneous differentials exceeding 50MPa).

· Structural Integrity: The cold rolling process induces a work-hardening effect, achieving a hardness of over HRC45. This makes the filter elements three times more wear-resistant than conventional screens, with a service life often exceeding 5 years in continuous operation.

3 Advanced Manufacturing Processes

LVDA’s production facilities utilize German-imported laser welding equipment and automated CNC systems to ensure precision. Every weld point undergoes rigorous testing to guarantee a tensile strength of no less than 200 N. The manufacturing process includes multiple stages such as wire drawing, straightening, cutting, and optional surface treatments like passivation and electrochemical polishing to enhance corrosion resistance and eliminate secondary contamination.

Extensive Industry Applications

LVDA Wedge Wire Filter Elements have become the preferred solution across a wide spectrum of industries, addressing specific filtration challenges with tailored engineering.

1 Petrochemical Industry

In the petrochemical sector, where conditions involve high temperatures, high pressures, and corrosive media, LVDA filters excel.

Application: Filtration of crude oil to remove sand, paraffin, and other impurities.

Performance: Capable of operating stably at temperatures up to 110°C and high pressures. The self-cleaning feature reduces clogging frequency, extending service life to 3-5 times that of traditional filters.

Impact: Significant reduction in downtime and maintenance costs, ensuring continuous operation of large-scale refinement processes.

2 Water Treatment Sector

From municipal sewage to drinking water purification, LVDA provides precise solutions for varying water quality requirements.

Municipal Sewage: Utilizes 1-3mm gap filters to intercept suspended particles, helping facilities meet discharge standards and enabling water recycling.

Industrial Wastewater: Employs 0.02-0.5mm high-precision filtration to remove heavy metals and pollutants, with excellent resistance to acidic and alkaline effluents.

Drinking Water: Uses food-grade stainless steel with mirror-polished surfaces to ensure safety and compliance with health standards. The integrated welded structure prevents bacterial growth and secondary contamination.

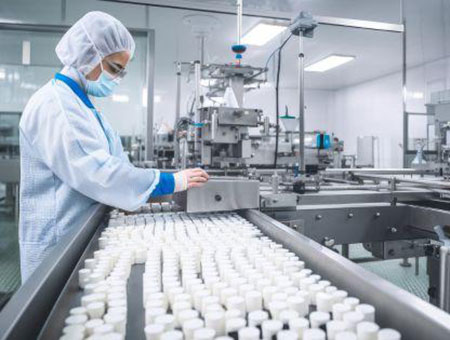

3 Food Processing and Pharmaceutical Industries

Hygiene and purity are paramount in these sectors. LVDA filters are designed to meet GMP and FDA certification standards.

Sanitary Design: Features smooth, burr-free surfaces and zero-volume structures to prevent microbial growth.

Customization: Tailored gap sizes accommodate different viscosities of food and pharmaceutical liquids. Quick-install interfaces facilitate rapid disassembly for cleaning and sterilization.

Outcome: Ensures product purity, enhances production flow efficiency, and eliminates the risk of fiber shedding or material contamination.

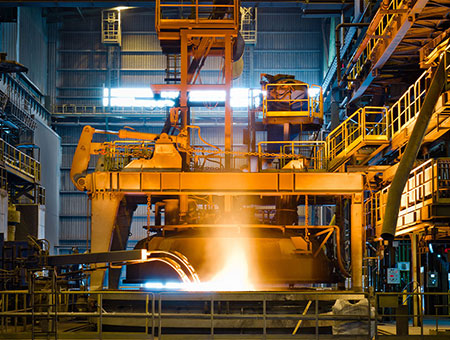

4 Mining, Metallurgy, and Power Generation

Mining & Metallurgy: Effective in pulp solid-liquid separation and ore processing, handling abrasive slurries with high wear resistance.

Power Industry: Used in boiler feedwater pretreatment and condenser cooling water systems. A case study noted that transforming a coal-fired power plant’s condenser system with LVDA filters reduced annual carbon emissions equivalent to planting 12,000 fir trees due to reduced replacement frequency.

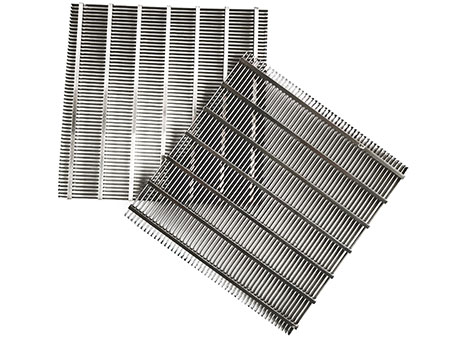

Unparalleled Customization Capabilities

Recognizing that standardized solutions often fail to meet complex industrial needs, LVDA places customization at the core of its service model.

1 Precision Parameter Control

LVDA offers precise control over every aspect of the filter element:

Filtration Accuracy: Adjustable from 20 to 800 microns.

Dimensions: Outer diameters ranging from 19mm to 914mm, with custom lengths and shapes (cylindrical, fan-shaped, flat plates, basket-style, conical).

Interface Design: Supports threaded, flanged, and dual-end open connections, ensuring 100% interchangeability with major brands like BOLL without requiring equipment modification.

2 Material and Structural Adaptability

Material Selection: Flexibility to choose from over 10 premium materials including specialized alloys for extreme corrosion or high-temperature environments.

Functional Enhancements: Options to add reinforcing ribs for pressure resistance, handles for easier installation, or specialized coatings for enhanced wear resistance.

Complex Geometries: Ability to design irregular structures to maximize space utilization in constrained equipment layouts.

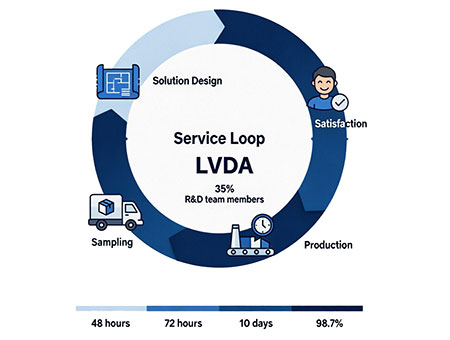

3 Rapid Response and Service Loop

LVDA’s professional R&D team, comprising 35% of its workforce, ensures a swift turnaround:

· Solution Design: Customized solutions provided within 48 hours.

· Sampling: Urgent sample delivery within 72 hours.

· Production: Standard orders fulfilled within 10 days.

· Satisfaction: Achieved a 98.7% customer satisfaction rate for small-batch customization in 2024.

Supplier Qualifications and Reliability

Choosing LVDA means partnering with a supplier backed by authoritative certifications and a proven track record.

1 Authoritative Certifications

LVDA Factory is a National High-Tech Enterprise holding triple system certifications:

· ISO9001: Quality Management System.

· ISO14001: Environmental Management System.

· ISO45001: Occupational Health and Safety Management System.

2 Intellectual Property and R&D

Supported by 17 core patented technologies, LVDA continuously innovates to stay ahead of industry standards. The company invests heavily in R&D, maintaining a dedicated team to simulate operating conditions and design integrated solutions covering demand research, scheme design, and post-sales guidance.

3 Global Trust and Market Presence

With operations in over 60 countries and regions, LVDA serves a diverse clientele ranging from Fortune 500 petrochemical giants to specialized SMEs. Notably, 82% of its business comes from repeat purchases and word-of-mouth recommendations, a testament to its reliability and product quality.

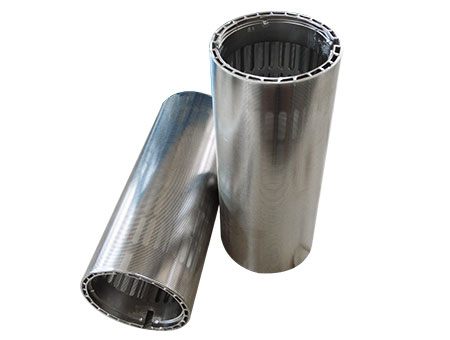

Equipment Compatibility and Installation Ease

One of the critical pain points in filtration upgrades is compatibility. LVDA addresses this through meticulous design and engineering.

1 Global Installation Compatibility

· Direct Replacement: LVDA filters are designed to be direct replacements for existing elements from major international brands. The precise matching of dimensions and interface types eliminates the need for costly equipment modifications.

· Versatile Connection Options: Support for threads, flanges, and other connection methods ensures seamless integration into diverse filtration systems, from automatic backwash filters to drum fine grates.

2 User-Friendly Installation and Maintenance

· Lightweight Design: The integrated fusion-welded structure combines durability with lightweight properties, allowing for single-person installation without specialized tools.

· Efficient Backwashing: The smooth, edge-free surface and wedge-shaped gap structure enable highly efficient backwashing, reducing cleaning water consumption and extending replacement cycles.

· Comprehensive Support: LVDA provides full-process assistance, from pre-sales parameter verification to on-site installation guidance and commissioning, ensuring a hassle-free experience.

Bulk Supply Capability and Supply Chain Resilience

In an era where supply chain disruptions can halt production, LVDA offers robust bulk supply capabilities to ensure business continuity.

1 Elastic Production Capacity

· High Volume Output: With a monthly production capacity of 100,000 standard filter cartridges, LVDA can handle large-scale orders effortlessly.

· Flexible Manufacturing: The implementation of a flexible production system allows for line switching within 24 hours, accommodating urgent orders and special requirements without delaying standard production.

· Strategic Reserves: A "deep reserve warehouse" maintains stock levels far exceeding industry averages, utilizing big data to predict market fluctuations and ensure availability of both standard and special material models.

2 Modular Intelligent Manufacturing

LVDA employs a modular design approach, decomposing filters into standardized functional modules. This enables "customization at scale," where personalized products can be manufactured with the efficiency of mass production. The parametric design system allows rapid adjustment of dimensions, precision, and strength parameters.

3 Digital Collaboration and Logistics

A full-link digital management platform provides transparency throughout the order lifecycle. Customers receive real-time updates on production progress and logistics tracking. Integrated with mainstream supply chain networks, LVDA ensures safe and timely delivery, even offering VMI (Vendor Managed Inventory) partnerships to act as a reliable caretaker for client inventory needs.

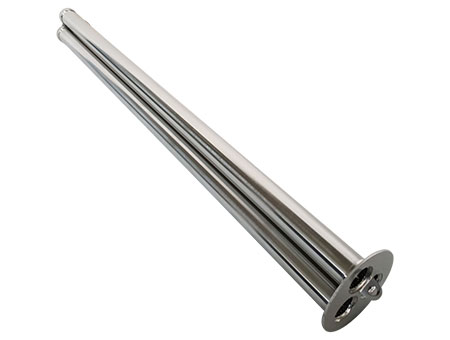

Environmental Compliance and Sustainability

As global environmental regulations tighten, LVDA ensures its products not only meet but exceed compliance standards.

1 Adherence to Global Standards

LVDA filters comply with stringent domestic and international regulations, including:

· China: HJ/T269-2006, GB 21900-2008 (Electroplating).

· International: EPA standards, EU Directive 2020/2184.

2 Pollution Prevention and Control

· Material Safety: Use of certified stainless steels and alloys prevents material leaching. Comprehensive treatment processes like acid washing and passivation eliminate production residues.

· Wastewater Treatment: In electroplating, LVDA filters facilitate the deep removal of heavy metals (Ni, Cr, Cu) to ppm levels. In chemical industries, they prevent salt crystal adhesion, supporting Zero Liquid Discharge (ZLD) initiatives.

· Oil Removal: Specialized coalescent wedge filters achieve an oil removal rate exceeding 95%, addressing compliance issues in mechanical processing.

3 Sustainable Impact

The long lifespan and durability of LVDA filters significantly reduce metal consumption and waste generation. By minimizing replacement frequency, they contribute to lower carbon footprints and support corporate ESG (Environmental, Social, and Governance) goals.

Cost Optimization and Economic Benefits

LVDA Wedge Wire Filter Elements offer a compelling value proposition by balancing initial costs with long-term economic benefits.

1 Cost Reduction Strategies

Material Innovation: Substitution of imported special materials with domestic high-strength alloys has reduced material costs by 35% without compromising performance.

Intelligent Manufacturing: Automation has increased production efficiency threefold and reduced labor costs by 50%. Digital quality control minimizes defect rates, hiding fewer costs in the final price.

Modular Design: Standardization of 80% of components reduces R&D costs and shortens the development cycle for non-standard products by 60%.

2 Operational Efficiency Gains

Increased Throughput: The high porosity design increases flux by 40-50%, boosting overall production line efficiency by up to 18% in food processing applications.

Maintenance Savings: Self-cleaning capabilities and extended service life reduce annual maintenance costs by more than 60% and filter replacement frequency by 70%.

Quality Improvement: Enhanced filtration precision leads to higher product quality. For instance, a car parts manufacturer reduced its hydraulic system defect rate from 2.3% to 0.5% after adopting LVDA filters.

3 Strategic Value

Beyond direct cost savings, LVDA filters provide strategic advantages such as reduced downtime, enhanced production capacity, and improved brand reputation through compliance and quality assurance. The total cost of ownership (TCO) is significantly lower compared to traditional filtration solutions.

Conclusion

The LVDA Wedge Wire Filter Element represents a paradigm shift in industrial filtration. By combining cutting-edge technology, rigorous quality control, extensive customization, and a customer-centric service model, LVDA delivers solutions that drive efficiency, ensure compliance, and optimize costs.

From the petrochemical fields of the Middle East to the pharmaceutical labs of Europe and the water treatment plants of Asia, LVDA has proven its capability to adapt and excel in diverse environments. Its commitment to innovation, sustainability, and reliability makes it not just a vendor, but a vital partner in the global pursuit of industrial excellence.

For enterprises seeking to upgrade their filtration systems, reduce operational risks, and achieve sustainable growth, LVDA offers a proven path forward. With its robust bulk supply capabilities, transparent pricing, and unwavering dedication to quality, LVDA stands ready to empower industries worldwide with uninterrupted filtration power.

Choose LVDA – Where Technology Meets Reliability, and Efficiency Drives Success.
