Product Details

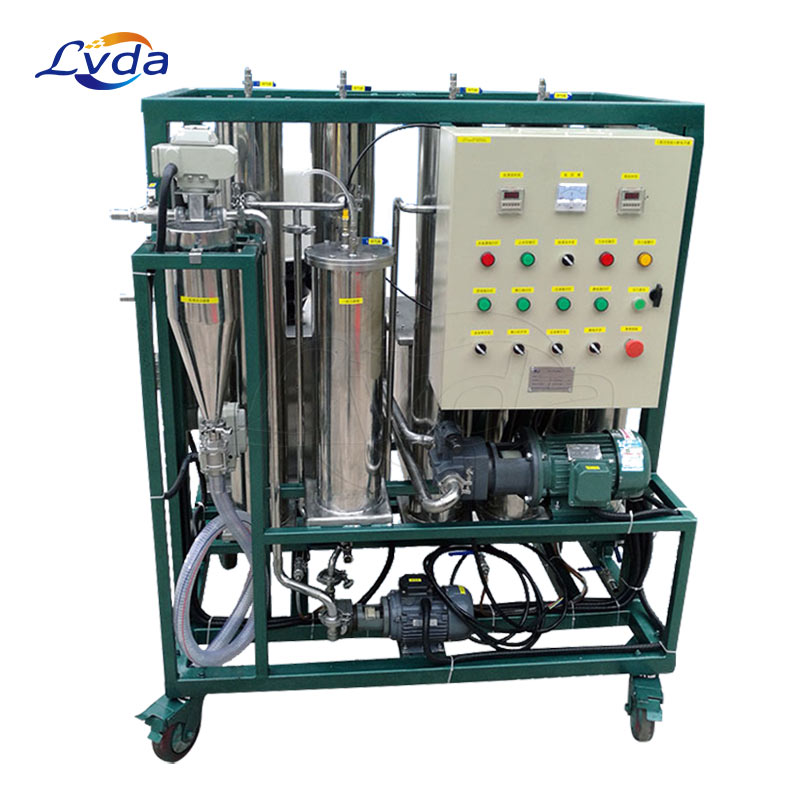

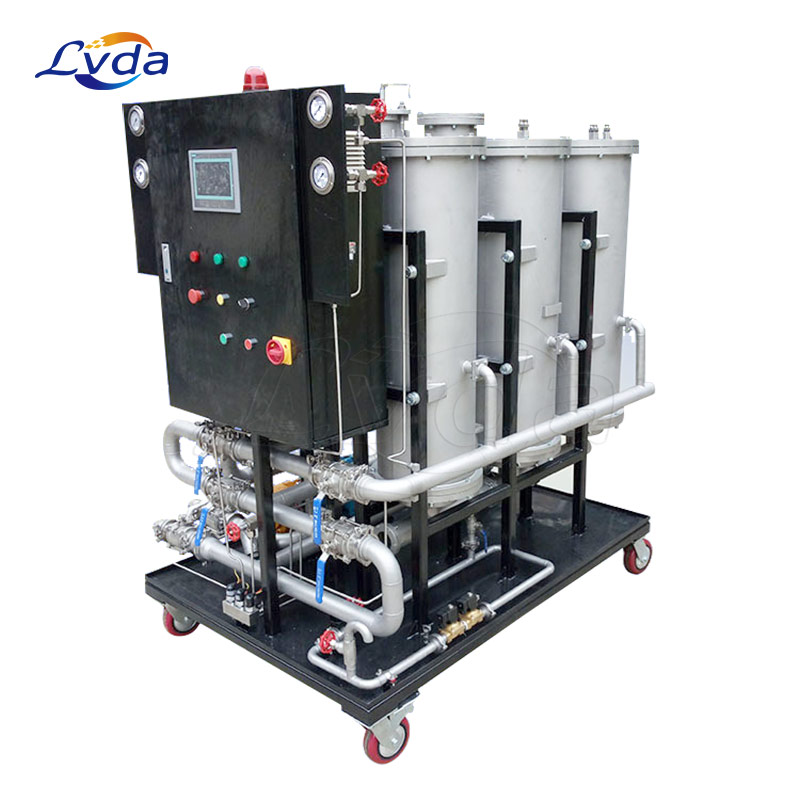

This high viscosity mobile transformer oil purifier from portable oil filtration is mainly used to deal with various types of transformer oils,unqualified gear oil, high-viscosity oil filtration, etc. The high viscosity mobile transformer oil purifier from portable oil filtration device handles values of oil viscosity (150-680). This high viscosity mobile transformer oil purifier from portable oil filtration machine is usually equipped with three or more filtration systems, and can also be equipped with more than five filtrations according to customer requirements. The high viscosity mobile transformer oil purifier from portable oil filtration equipment is light and flexible, and the operation is simple. high viscosity mobile transformer oil purifier from portable oil filtration series is equipped with a heater system and a constant temperature control system, which can set the heating temperature arbitrarily and automatically control the working state of the heater, especially suitable for filtration of high-viscosity lubricating oil. The treated lubricating oil has low emulsification value, high filtration precision and low impurity content, which can meet the parameter requirements after filtration, and can be used repeatedly in high-precision hydraulic, pneumatic, and lubrication equipment at home and abroad. The machine can also be used for long-distance, high-lift refueling and oil filling. It is suitable for purification and regeneration of various lubrication in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and other industries.It is used in various gear transmission devices to prevent tooth surface wear, abrasion, sintering, etc., prolong its service life, and improve the transmission power efficiency. Gear oil should have good anti-wear, load resistance and suitable viscosity. In addition, it should also have good thermal oxidation stability, anti-foaming, water separation performance and anti-rust performance. Since the gear load is generally above 490 MPa (MPa), and the hyperbolic tooth surface load is as high as 2942 MPa, in order to prevent the tooth surface from wear and abrasion caused by oil film rupture, extreme pressure anti-wear agents are often added to the gear oil, and sulfur is commonly used. - Phosphorus or sulfur-phosphorus-nitrogen type additives.
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features
*The oil filter machine used special high-viscosity oil pump, having advantages of transmission fluid smooth, pulseless, low noise, small vibration and strong self-absorption capacity.
*Can filter a variety of corrosive media, particularly suitable for filling and purifying the high viscosity oil.
*Optional heating function, when the temperature is too low or the oil viscosity is too large, you can start the heater for heating oil, the maximum temperature is up to 120 °C.
*The pipe with overflow protection devices, which can effectively protect the safety of the hydraulic system.
*The use of thermal relay protection to prevent motor damage caused by motor overload.
*The coarse filtration of suction port can protect the pump and extend the life of the main filter.
*The precision filter chosen by different users for different precision, and can achieve the desired results.
*Precision oil filtration housing with quick open structure, which can quickly open the cover and replace the filter without any tools.
*Pressure gauge equipped on the panel, can show the continuous indication of the degree of contamination of the system operating conditions and filter.
Applications
1. Filtration of high viscosity transformer oils
2. The filling of high viscosity transformer oils
3. The bypass filtration when high viscosity transformer oil system at work
