Product Details

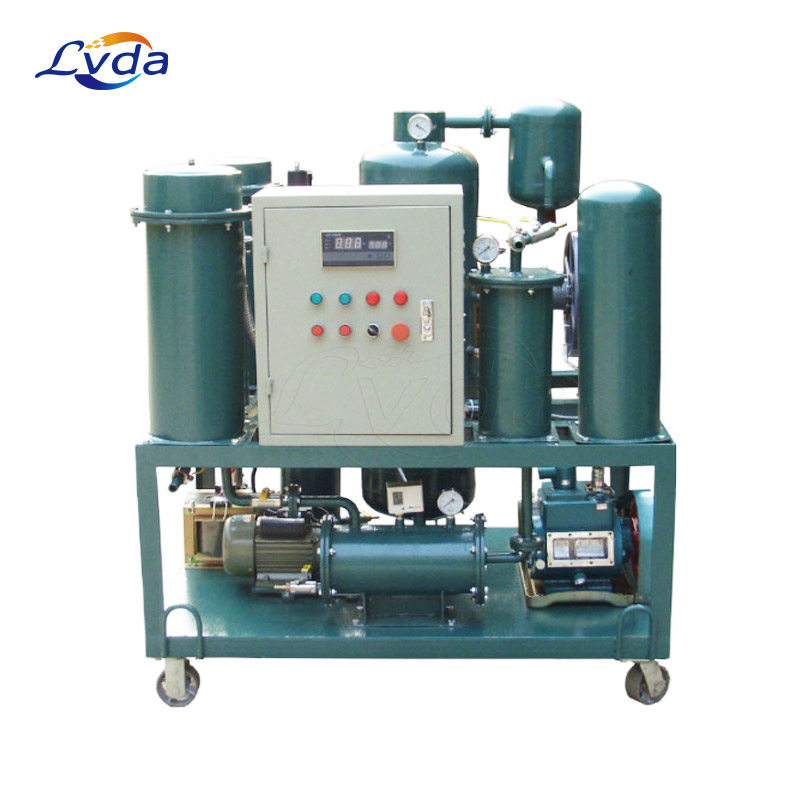

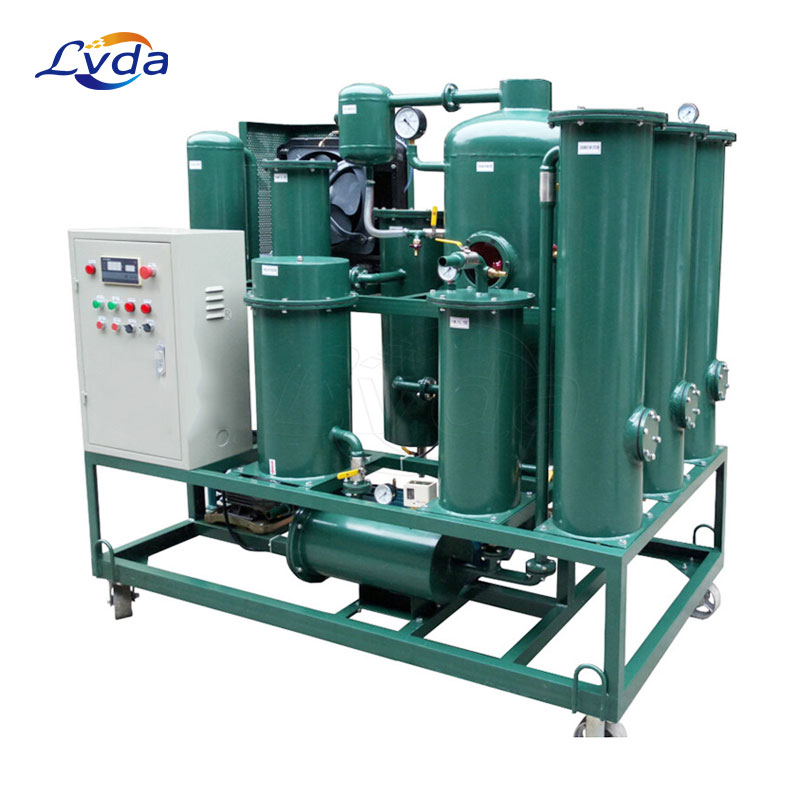

Oils inside transformers are mainly for insulating purpose- apart from which they also suppress corona and arcing, and also act as coolants inside the machines. These oils must be maintained absolutely clean and dry in order to achieve and sustain the optimal insulating performance and dielectric strength. Here rises the need for transformer oil purification process. Metalic Canopy covered Insulating Oil Purifier Plant is the key to transformer reliability, performance and longevity. Your transformer's insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages. Even some new oils may require treatment to limit these contents to acceptable levels.
Product parameters
| Technical item | Unit |
|
|
| Model |
|
|
|
|
| AD-30 | AD-50 | AD-100 | AD-150 | AD-200 | AD-250 | AD-300 |
| Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 |
| Average power | Kw/h | 7 | 7 | 9 | 9 | 12 | 15 | 15 |
| Heating power | Kw/h | 3 | 4.5 | 6 | 6 | 9 | 9 | 11 |
| Working vacuum | Mpa |
|
|
| -0.04～-0.098 |
|
|
|
| Working oil temperature | ℃ |
|
|
| 30～160 |
|
|
|
| Working pressure | MPa |
|
|
| ≤0.8 |
|
|
|
| With power supply | V |
|
|
| 380 |
|
|
|
| Noise | db(A) |
|
|
| ≤70 |
|
|
|
Features
*Pure physical cryogenic distillation technology.
*High efficiency
*High-speed separation and micro-filtration system.
*Unique world-leading decolorization system.
*Pure physical treatment to dehydrate, degassing, removing impurities, and decolorizing the oil, without affecting the components and performance of the oil.
*The machine is equipped with pressure protection, automatic temperature control heating, automatic level control, automatic separation of the condensed water drainage device, onlineoperation, simple operation, safety, and reliability.
*Adopts high-quality filter material, a large amount of sewage, corrosion resistance, high-temperature resistance, high mechanical strength, in addition to impurities, high precision, long service life.
*Unique degassing and dewatering system: using three-dimensional evaporation technology, multi-level oil-water separation technology, can rapidly separate water, gas, and impurities in the oil.
Applications
Electric power, petroleum, chemical industry, metallurgy, mining, machinery, aviation, shipbuilding, railway and many other industries. The machine is mainly used for filtrating various types of transformer oils.
