Product Details

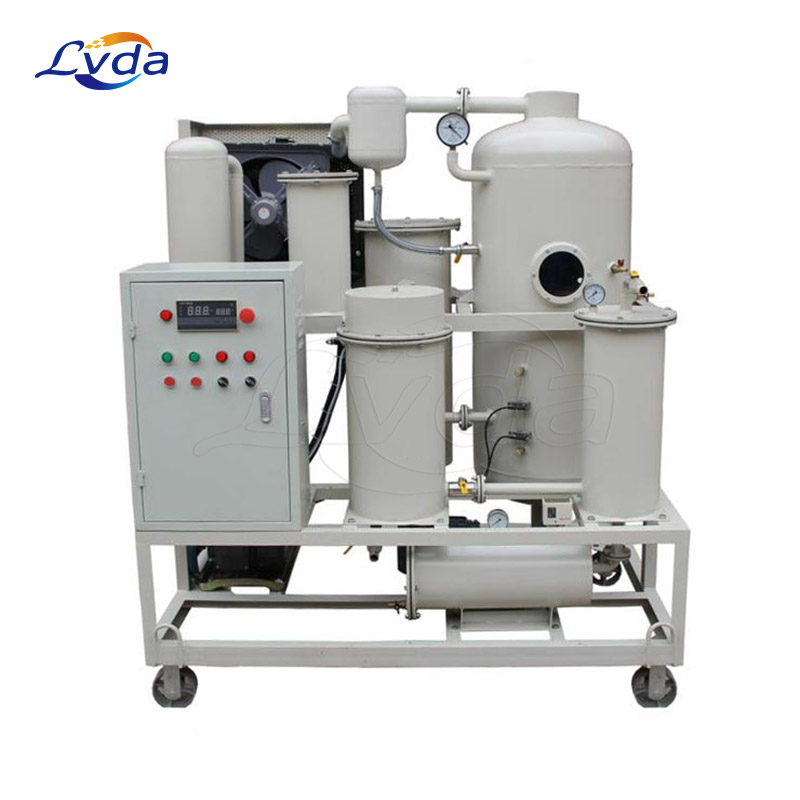

This High viscosity vacuum oil filter purifier regeneration filtration machine is widely used for power plants,steel mills,mine machinery, metallurgy, cement, petroleum, railway,chemical industry,textile,instrumentation oil depots and factories and enterprises.It plays a significant role in the purification and regeneration of various high-viscosity oils that are polluted.extend machine life span and maintenance period.
The equipment has been professionally configured according to the technical requirement and standards of various equipment oils.
The machine can remove oil pollutants such as water,gas,carbon black,mechanical impurities etc. effectively and improve the kinematic viscosity,flash point,emulsified characteristics of oil,make the oil nearing or meeting new fresh oil requirement.
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features
1.Super emulsion breaking and impurities removing ability,easy to isolate a lot of moisture from oil-in-water type,but also can remove water from water-in-oil type effectively.
2.Due to the use of thin film evaporation technology and molecular evaporation technology specialized,fast breaking,the oil becomes clear and transparent.
3.The use of high quality filter elements and the original connection sealing material,corrosion resistance,high temperature resistance,good mechanical strength.
4. Strong ability to filter out impurities,wash the filter to remove a large number of impurities in oil,a large area of deep level precision filter can remove the fine particles in the oil,which can replace the oil system cleaning device.
Applications
High viscosity oil,waste used oil,liquid oil,transformer oil etc.
