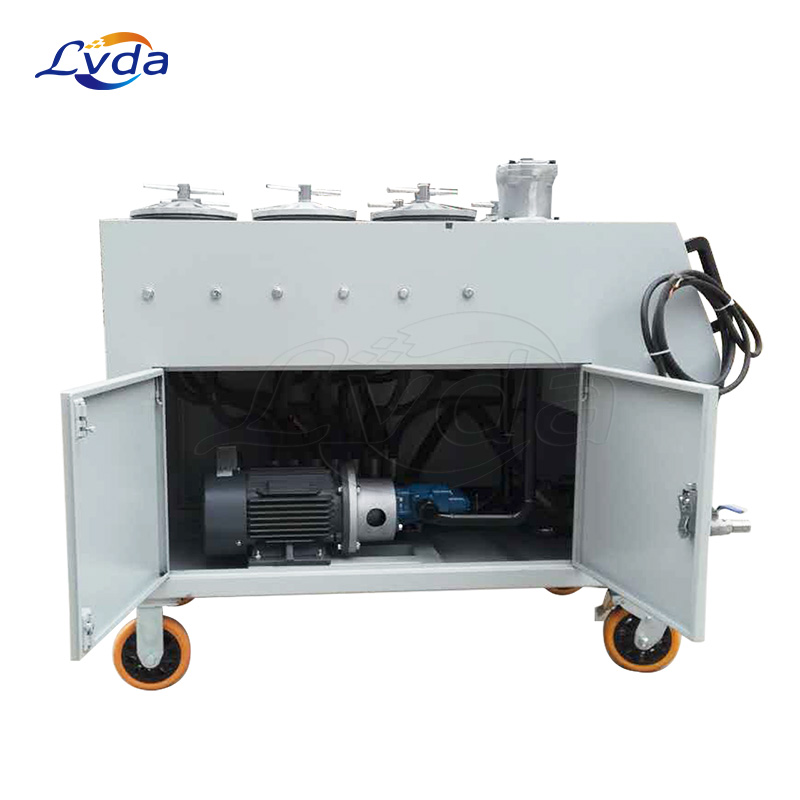

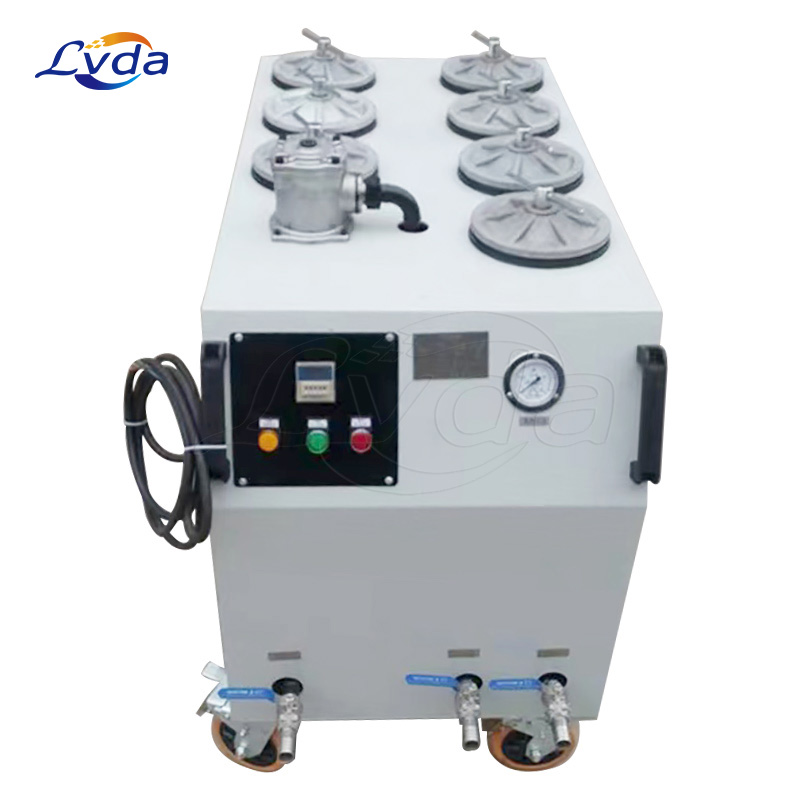

Portable high precision oil purifier unit
Portable high precision oil purifier unit
Portable high precision oil purifier unit

Portable high precision oil purifier unit

Transformer Oil Purifier

Model Number:

Rated pressure(MPa) : 1.6

Differential pressure : 0.8Mpa

Working temperature(°C) : 5-80

Recommended viscosity(cSt) : 10-180

Voltage(V) : ​AC380V(Three- phase)、50Hz

Get Quotation

Product Details

Our core business lies in meeting customer's expectations and for this we are engaged in providing the outstanding quality portable high precision oil purifier. Our offered purifier is manufactured by utilizing supreme quality material in line with industry standards. In addition, this purifier is available in diverse specifications as per the demands of our customers. This is widely acclaimed for its impeccable designs and cost effective nature. Further, this portable high precision oil purifier is a portable system for transformer oil cleaning and filtration, based on centrifuge technology.

Technical parameter

Model

AOP-S-

1R-*

AOP-S-2

R-*

AOP-S-3

R-*

AOP-S-4

R-*

AOP-S-5

R-*

AOP-S-6

R-*

AOP-S-7

R-*

Rated flow(L/min)36912151824
Rated pressure(MPa)1.6
Mpa(MPa)≤0.25
Coarse filter precision(μm)100
Fine filter precision(μm)NAS1638 3-6 Grade
Differential pressure0.8Mpa
Working temperature(°C)5-80
Recommended viscosity(cSt)10-180
Voltage(V)AC380V(Three- phase)、50Hz
Motor power(kw)0.20.20.40.40.550.750.75
Weight(kg)668690108112120135
Dimensions(mm)380x500x680380x500x680600x500x680600x500x680860x500x1000

1100x500x1000

100x500x1000


Features

Available with rust proof construction, strong construction and smooth operation.

The portable high precision oil filtering as well as filling machine series deals with lubricating oil, unqualified insulating oil, turbine oil etc.

It is incorporated with motor- driven special gear pumps as well as multi-stage filters for filtrating dirty oils and withdrawing assorted sizes of particles & waste materials.

Offered with a small size and flexible design, which enable easy operation and need no filter paper or contamination to the ground.

It has a wider utilization in comparison with mediocre filter press and is accessible with extended serviceability.

Standing as an optimal substitute for frame filter press, it can also be utilized for oil filling/transferring at working fields, suited for the aerial work and field portable assignments

Provided with compact structure, easy carriage, small volume, light weight, easy to carry.

Filtration precision is insured with various product specifications, can be used at unsafe working ares as well.

Employment of patented technology to attain fuzzy control technology, high-effective separating separation tower, degassing and dewatering very effectively.

Proffered with the function of filling oil under vacuum status.

Oil suction point is equipped with coarse filters so as to give protection to pumps and extend the functional life of two filters.

Filter precision can be changed and adjusted in accordance with client's actual requirement.

The machines are capable to execute the task of precision filtering.

It is usually equipped with three-stage filters and can also equipped with four & five stage filters in accordance with requirements.

The products is light weight and come with effortless operation.

Utilized as the oiling machines for high-lift as well as long distance oiling works.

Pressure gauge monitors are employed for monitoring the working status of machines and pollution levels consistently.

Provided purifiers have large routes and efficient capability to hold dirt.

Stable and innocuous operation with reduced noise.

Applications

Feed stocks to protect catalytic reactor beds

LPG, gasoline, diesel, and jet fuel final products

Many other contaminated products that can be

found in a variety of storage tanks in a plant

Amine (rich and lean)

Aromatic extraction solvents

Dehydration solvents

Sour water

Make-up water

Pre-filtration for liquid/liquid separations
