Product Details

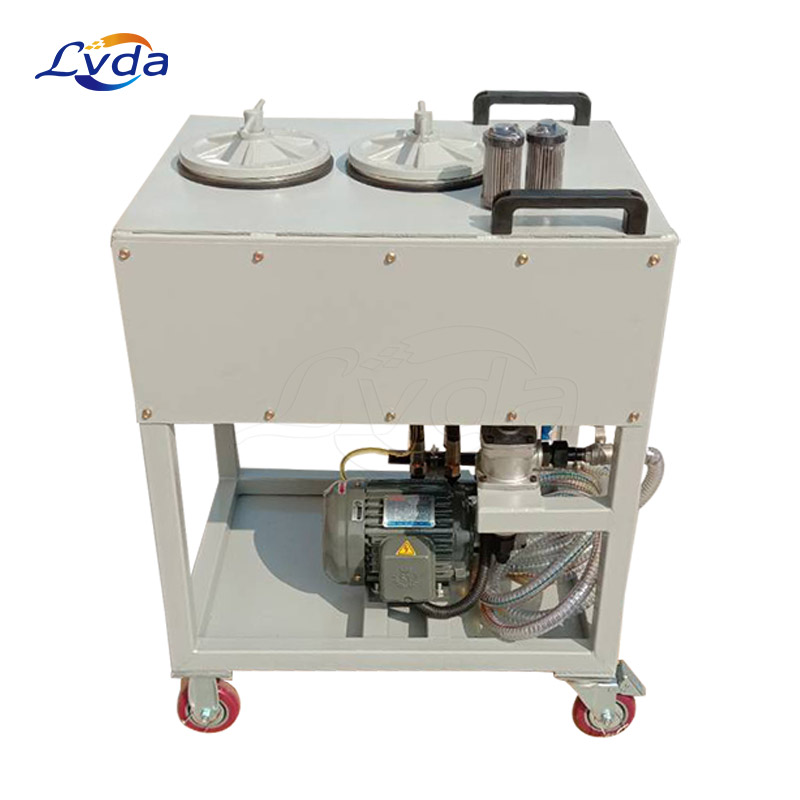

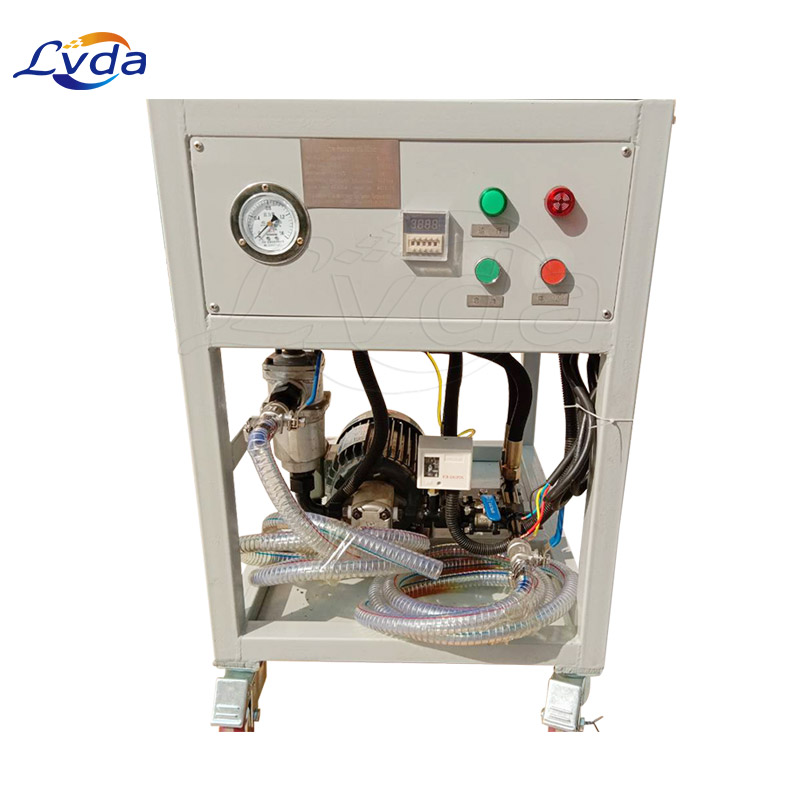

The precision oil purifier and oiling machine uses a multi-stage filtration system. It is easy to operate and easy to maintain. Besides, our precision oil purifier and oiling machine is suitable for filtering various impurities such as insulating oil, turbine oil, mechanical oil and hydraulic oil. It can be equipped with different filter elements. Low cost and high filtration precision are the regenerative products of plate and frame pressure oil purifiers.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
The precision oil purifier and oiling machine apply vacuum flash separation technology and steps evaporation technology, high-efficiency dehydration, and emulsification to make oil quickly reach the standard of use.
The safe and reliable electric heating system adopts carbon fiber heating technology to ensure heating and uniform oil temperature stability while reducing energy consumption.
Chinamade a multi-stage precision filter element, which can effectively remove all kinds of impurities and encrypt it step by step, with a large amount of dirt and long service life.
Our mobile precision oil purifier and oiling machine adopts the technology to ensure that the equipment will not spray oil during operation, safe and stable operation.
Automatic overload protection, automatic pressure shutdown, ensuring the safe operation of the whole machine.
This machine is equipped with a trailer device on the basis of the oil filter machine to facilitate fieldwork.
In addition to oil filter equipment, we also provide products for testing oil, as well as dry air generators, etc., and have a variety of customized equipment to choose from.
Applications
This machine can be widely used in the industries such as power station, electricity factory,power electrical substation of industrial and mineral enterprise, lube oil depot, tractor station, petroleum, chemical engineering, metallurgy, national defense unit, etc, filtering water and impurities of transformer oil, turbine oil, engine oil, EP gear oil, machine oil, diesel oil, kerosene, hydraulic oil, aviation hydraulic oil, as well as edible oil while using stainless steel plates and frame.
