Product Details
Our high precision portable oil filter machine, used industrial oil purifer is specially designed for purifying various industry oil, effectively remove water and mechanical impurities from oil, improve oil quality and ensure safety operation of industrial equipment.
This machine can be widely used in the industries such as power station, electricity factory,power electrical substation of industrial and mineral enterprise, lube oil depot, tractor station, petroleum, chemical engineering, metallurgy, national defense unit, etc, filtering water and impurities of transformer oil, turbine oil, engine oil, EP gear oil, machine oil, diesel oil, kerosene, hydraulic oil, aviation hydraulic oil, as well as edible oil while
using stainless steel plates and frame. It is also a great choice for pre-treatment, prior to high vacuum oil purifier machine.

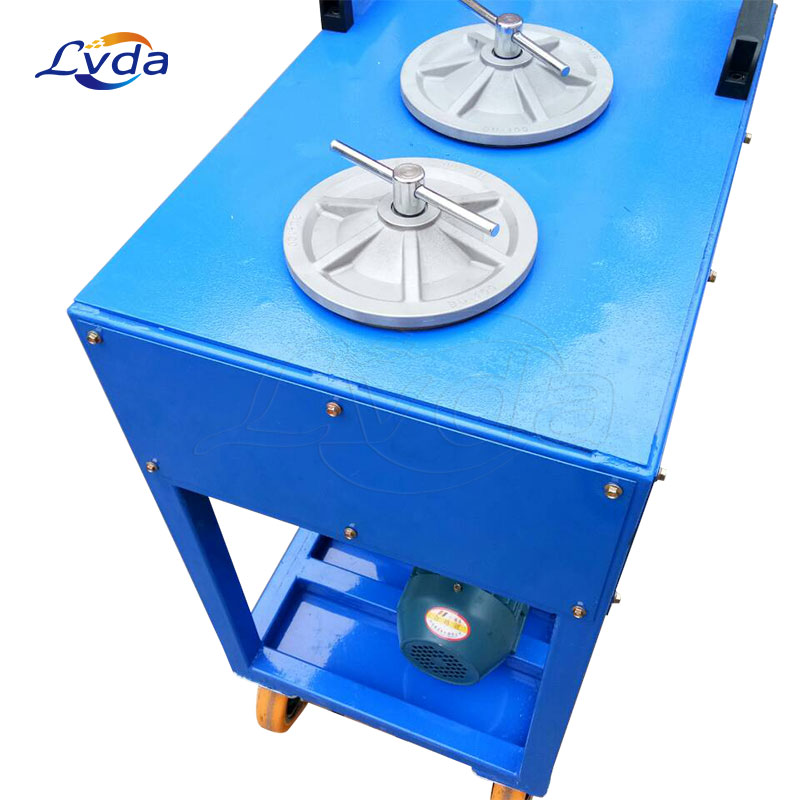

This machine consists of fitering bed, oil pump and primary fiter. This machine use filter paper, filter fuse or fliter cloth as filtration media, which are installed and fixed between the filter plate and filter frame.
The filter paper, filter fuse or filter cloth plays a very important role of filtering.
When you operate the battening device, there will form a single independent filtering room under the pressure of the packing device, then the water content and impurities are removed by filter media.
WORKING PRINCIPLE
It takes the fiter paper as the fiter element, the waste oil is injected into the machine under high oil pressure, which produced by the oil pump. The impurity is hold up by the superimposed fliter paper.
When the value of oil pressure excess to a setting value or the flter paper is wet, we just need to change the new fiter paper, then it can work normally.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
1. Simple structure, plate pressure type fitering method, flter paper,fiter fuse or fiter cloth as fiter media.
2. No heating, the additives in the oil are well prevented from degradation or deterioration.
3. Easy to operate, with simple structure, small volume, light weight, easy to carry and operate.
3. Low operation cost, low maintenance time and cost

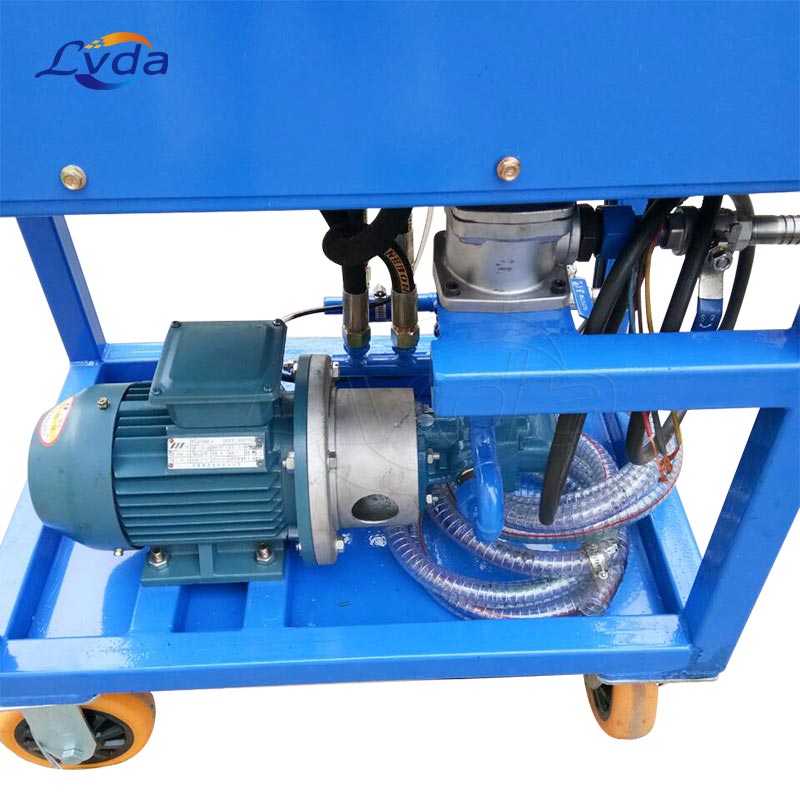

4. Special boosting type oil pump has strong suction ability and make the machine to be used in more oil types.
5. Low noise, quick and convenient to replace the filter paper.
6. High efficiency, can effectively purity the tiny and fine mechanical impurity from oil.
Applications
Transformer oil filtration and purification
Hydraulic lubrication system fltration during refueling
Bypass filration during operation of hydraulic lubrication system
Cyclic filtration of hydraulic lubrication system before operation
Comprehensively improve the cleanliness of hydraulic lubrication system
It’s popular as oil filtering and oil delivery device for power industry, petroleum, chemical, metallurgy, mechanics and railway. Also it is suitable on impurity removal of mutual inductor, lathe, and oil breaker which do not use large quantity of oil.
