Product Details
High precision/accuracy transformer oil filter purify system is composed of four-stage oil filter element. And as designed to be trolley type, so it is portable.This unit is simple and easy to operate, low cost. So it is a three-stage oil purification system which has strong filtering capacity for many different kind of contaminated oil, which has high capacity impurities, or low, and big particles or small, it’s suitable for all occasions use and most requirements can be satisfied well at one time. it’s also very portable and easy to move for on-site filtration work with trolley design. high accuracy oil filtration purifier system unit can be customized for different filtering requirements depends on customer’s actual needs so to satisfy different use application. It can effectively purify the big particles, and tiny& fine mechanical impurity from contaminated oil fast and thoroughly as required.

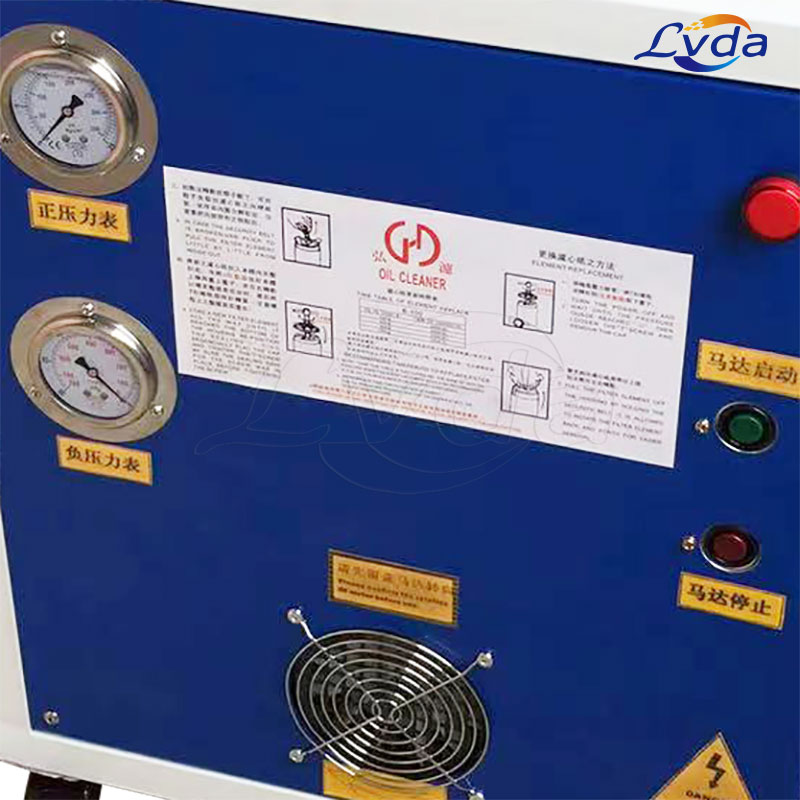

Our high precision/accuracy transformer oil filter purify system consists of several parallel pipes of precision oil filters, and is equipped with a pump motor, vacuum gauge, pressure gauge, suction filter, electromagnetic switch, iron frame, etc. to form a filtering system, and is equipped with wheels for easy mobile use , suitable for centralized filtration or all kinds of mechanical rotation filtration of the same oil, the filtration process is simple, the effect is good, the economy is affordable, and the scope is wide.
This High precision/accuracy transformer oil filter purify system is simple and easy to operate, very low price, and low consumption for spare parts. It is no need of purification paper, and no contamination to the ground. This oil purifier machine is an ideal substitute of the board-frame oil purifier and the centrifugal oil purifier. It is also can serve as precise filtering and oiling.
During the operation of hydraulic oil, mechanical oil, cooling oil and other lubricating oils, moisture, gas, volatile substances and impurities are inevitably mixed into the lubricating oil due to various reasons, which accelerates the oxidation of the oil and promotes foam, fouling and sludge. The formation of oil reduces the lubrication, heat dissipation, dispersion, cooling and other properties of oil. At the same time, it causes corrosion and wear of metal parts, which affects the normal operation of hydraulic system, power system and lubrication system. This high precision/accuracy transformer oil filter purify system can quickly remove moisture, gas, impurities and volatiles (gasoline, diesel, kerosene, etc.) from oil. Improve oil quality, restore lubricating oil viscosity, flash point and performance. Ensure the normal operation of hydraulic system, power system and lubrication system.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
-High-fficiency electric heating system, automatic control, less power consumption.
-Strong ability of demulsific ation, separating oil and water fficinty.
-Large area three-dimensional flash disillation technology.
-Three stage filtration system (primary flter, secondary filter, fine filter).
-Interlocking protection mechanism.
-Automatic oil level controller.
-Humanized design, easy control for operation and supervision.
-Automatic pressure protect system.
Applications
Transformer oil filtration and purification
Hydraulic lubrication system fltration during refueling
Bypass filration during operation of hydraulic lubrication system
Cyclic filtration of hydraulic lubrication system before operation
Comprehensively improve the cleanliness of hydraulic lubrication system
It’s popular as oil filtering and oil delivery device for power industry, petroleum, chemical, metallurgy, mechanics and railway. Also it is suitable on impurity removal of mutual inductor, lathe, and oil breaker which do not use large quantity of oil.
