Product Details

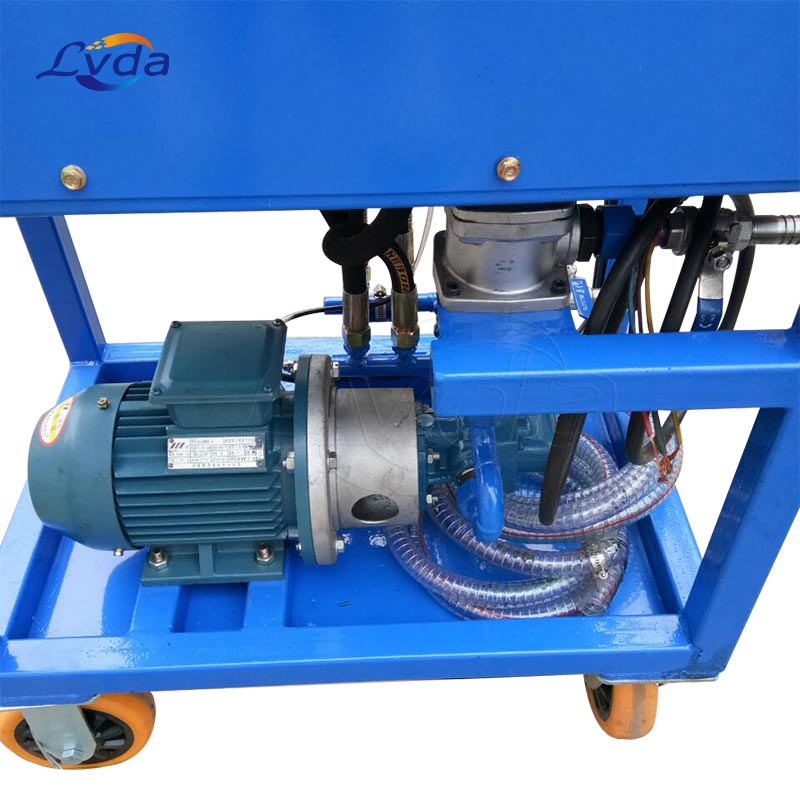

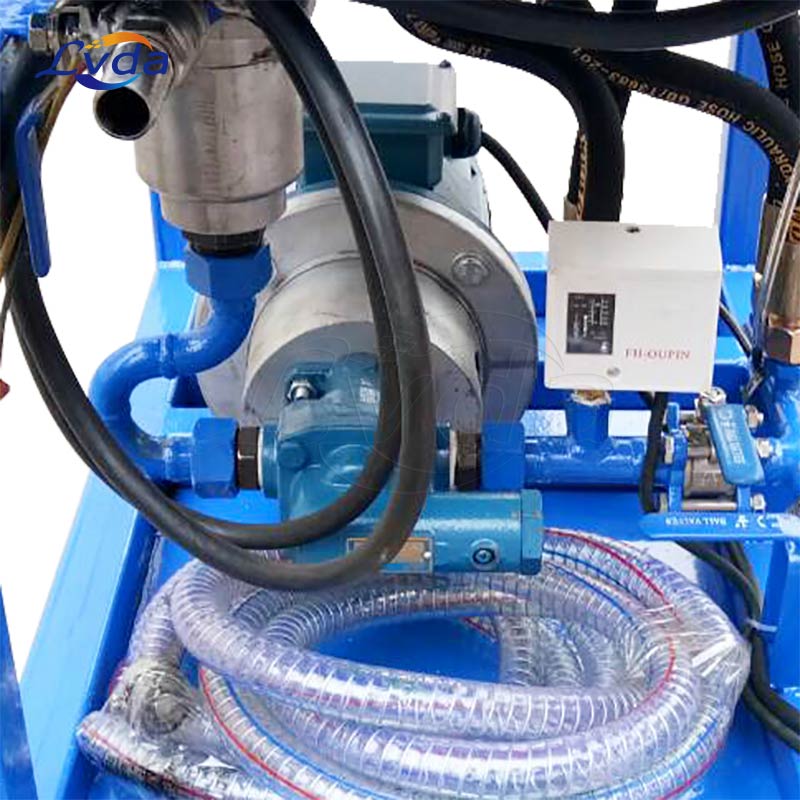

Our Pressure pressing type high precision oil filtration unit series is made up of filtering bed, boosting type oil pump and rough filter. There are filtering media, such as filtering paper or filtering fuse, installed between the steel filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering. Special boosting type oil pump has strong suction ability and make the machine to be used in more oil types. Low noise, Quick and convenient to replace filter paper, Simple structure, Easy to use, Lower operation cost.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
-High-fficiency electric heating system, automatic control, less power consumption.
-Strong ability of demulsific ation, separating oil and water fficinty.
-Large area three-dimensional flash disillation technology.
-Three stage filtration system (primary flter, secondary filter, fine filter).
-Interlocking protection mechanism.
-Automatic oil level controller.
-Humanized design, easy control for operation and supervision.
-Automatic pressure protect system.
Applications
Our Pressure pressing type high precision oil filtration unit series is a great choice as oil pre-treatment equipment prior use before vacuum oil purifier machines. It’s widely used for power station, electricity factory, power electrical substation of industrial and mining enterprise, lube oil depot, tractor station, petroleum, chemical engineering, metallurgy, national defense industry, etc.
Pressure pressing type high precision oil filtration unit series is specially designed for filtering water content and impurities of transformer oil, turbine oil, engine oil, EP gear oil, machine oil, diesel oil, hydraulic oil and as well as filtering edible oil.
