Transformer Oil Purifier

Model Number:

Rated pressure(MPa) : 1.6

Differential pressure : 0.8Mpa

Working temperature(°C) : 5-80

Recommended viscosity(cSt) : 10-180

Voltage(V) : ​AC380V(Three- phase)、50Hz

Get Quotation

Product Details

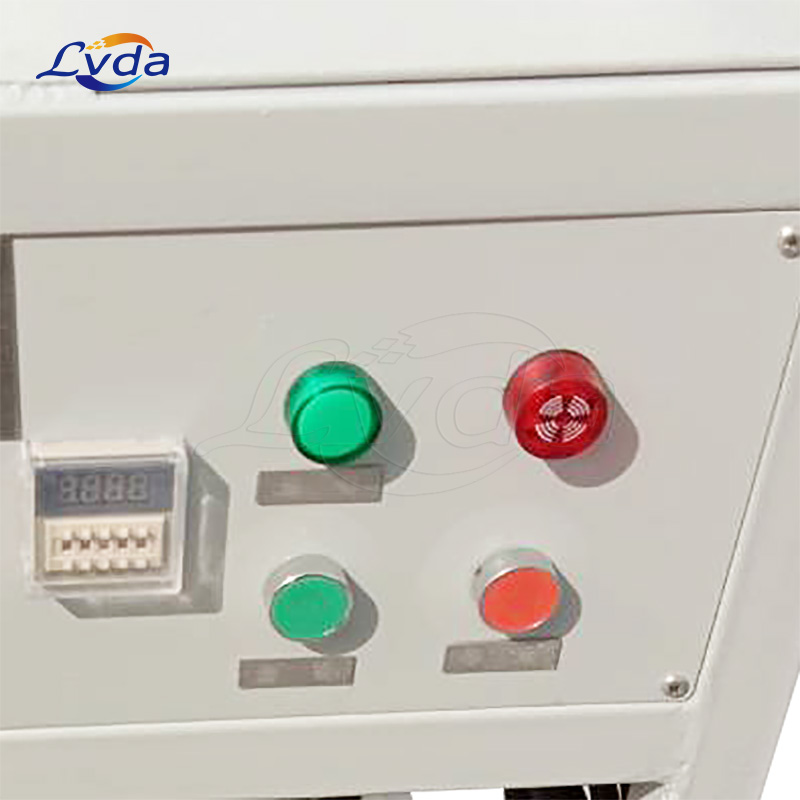

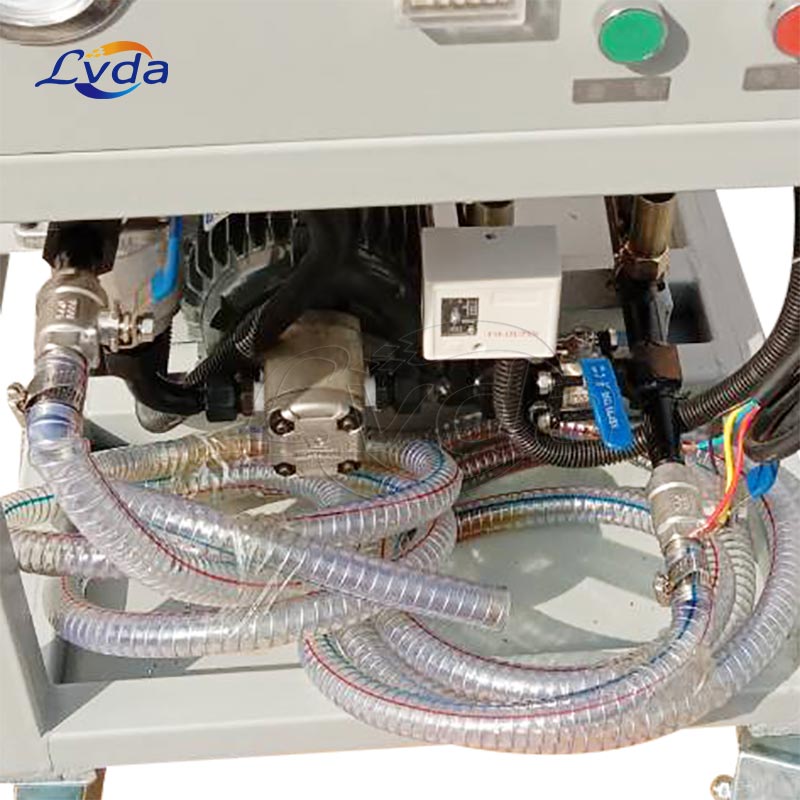

Our high accuracy oil purifier consists of several parallel pipes of precision oil filters, and is equipped with a pump motor, vacuum gauge, pressure gauge, suction filter, electromagnetic switch, iron frame, etc. to form a filtering system, and is equipped with wheels for easy mobile use , suitable for centralized filtration or all kinds of mechanical rotation filtration of the same oil, the filtration process is simple, the effect is good, the economy is affordable, and the scope is wide.

Technical parameter

Model

AOP-S-

1R-*

AOP-S-2

R-*

AOP-S-3

R-*

AOP-S-4

R-*

AOP-S-5

R-*

AOP-S-6

R-*

AOP-S-7

R-*

Rated flow(L/min)36912151824
Rated pressure(MPa)1.6
Mpa(MPa)≤0.25
Coarse filter precision(μm)100
Fine filter precision(μm)NAS1638 3-6 Grade
Differential pressure0.8Mpa
Working temperature(°C)5-80
Recommended viscosity(cSt)10-180
Voltage(V)AC380V(Three- phase)、50Hz
Motor power(kw)0.20.20.40.40.550.750.75
Weight(kg)668690108112120135
Dimensions(mm)380x500x680380x500x680600x500x680600x500x680860x500x1000

1100x500x1000

100x500x1000


Features

-High-fficiency electric heating system, automatic control, less power consumption.

-Strong ability of demulsific ation, separating oil and water fficinty.

-Large area three-dimensional flash disillation technology.

-Three stage filtration system (primary flter, secondary filter, fine filter).

-Interlocking protection mechanism.

-Automatic oil level controller.

-Humanized design, easy control for operation and supervision.

-Automatic pressure protect system.

Applications

*Transformer oil filtration

*Hydraulic lubrication system fltration during refueling

*Bypass filration during operation of hydraulic lubrication system

*Cyclic filtration of hydraulic lubrication system before operation

*Comprehensively improve the cleanliness of hydraulic lubrication system
