Product Details

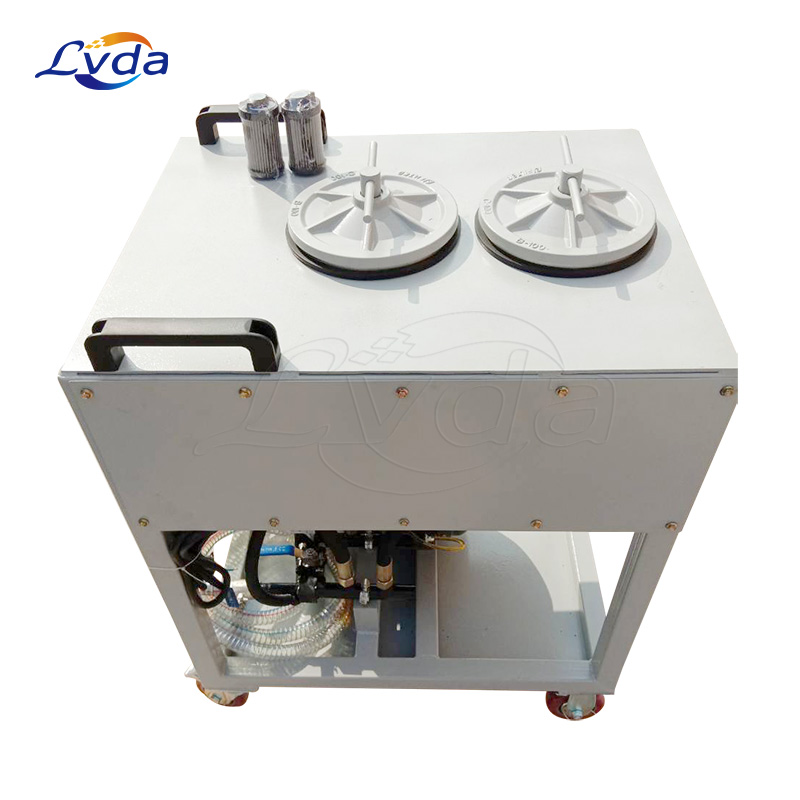

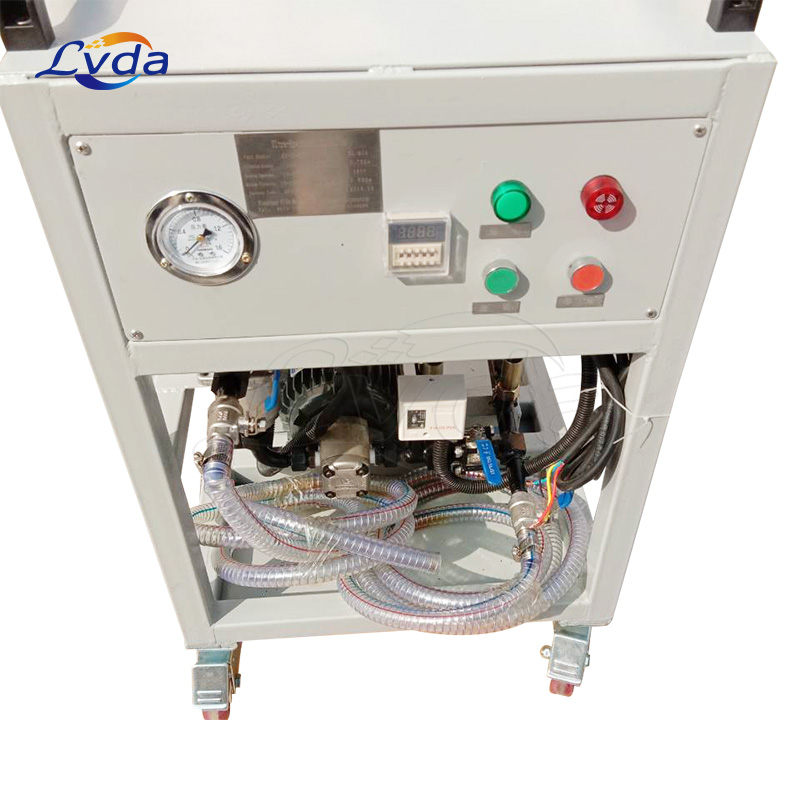

Our precision oil filter purifier consists of several parallel pipes of precision oil filters, and is equipped with a pump motor, vacuum gauge, pressure gauge, suction filter, electromagnetic switch, iron frame, etc. to form a filtering system, and is equipped with wheels for easy mobile use , suitable for centralized filtration or all kinds of mechanical rotation filtration of the same oil, the filtration process is simple, the effect is good, the economy is affordable, and the scope is wide.
When different types of transformer oils, mechanical oil, hydraulic oil, lubricating oil and other cooling oils are in operation state, particles like moisture, gas, volatile substances and impurities are inevitably mixed into the lubricating oil due to various reasons, which accelerates the oxidation of the oil and promotes foam, fouling and sludge. The formation of oil reduces the lubrication, heat dissipation, dispersion, cooling and other properties of oil. At the same time, it causes corrosion and wear of metal parts, which affects the normal operation of hydraulic system, power system and lubrication system. This series ofprecision oil filter purifier can quickly remove moisture, gas, impurities and volatiles (gasoline, diesel, kerosene, etc.) from oil. Improve oil quality, restore lubricating oil viscosity, flash point and performance. Ensure the normal operation of hydraulic system, power system and lubrication system.
Technical parameter| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
High-fficiency electric heating system, automatic control, less power consumption.
Strong ability of demulsific ation, separating oil and water fficinty.
Large area three-dimensional flash disillation technology.
Three stage filtration system (primary flter, secondary filter, fine filter).
Interlocking protection mechanism.
Automatic oil level controller.
Humanized design, easy control for operation and supervision.
Automatic pressure protect system.
Applications
*Transformer oil purification
*Transformer oil system filtration during refueling
*Bypass filration during operation of transformer oil system
*Cyclic filtration of transformer oil system before operation
*Comprehensively improve the cleanliness of transformer oil system
