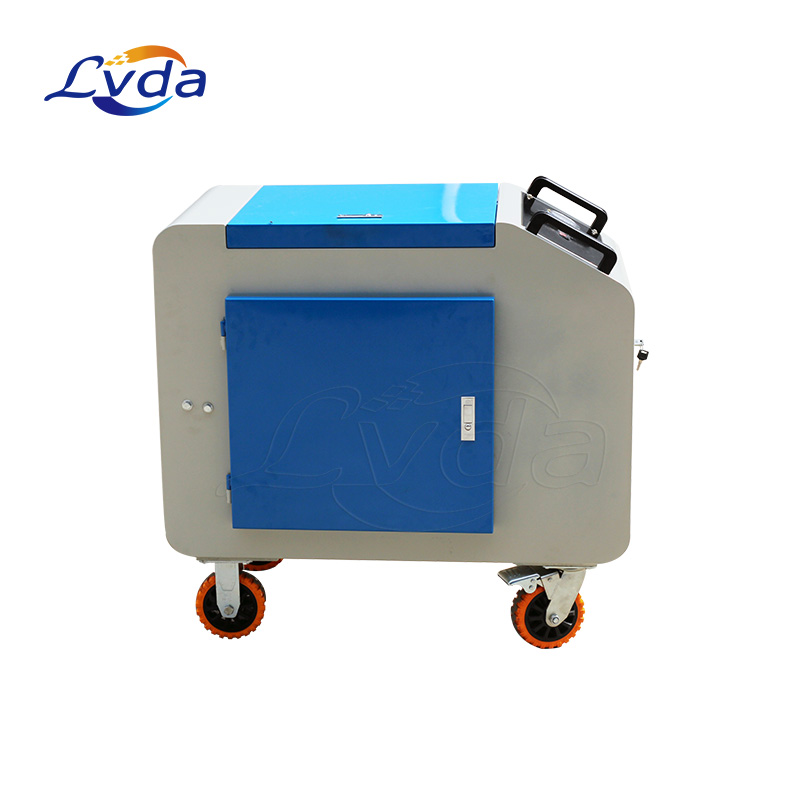

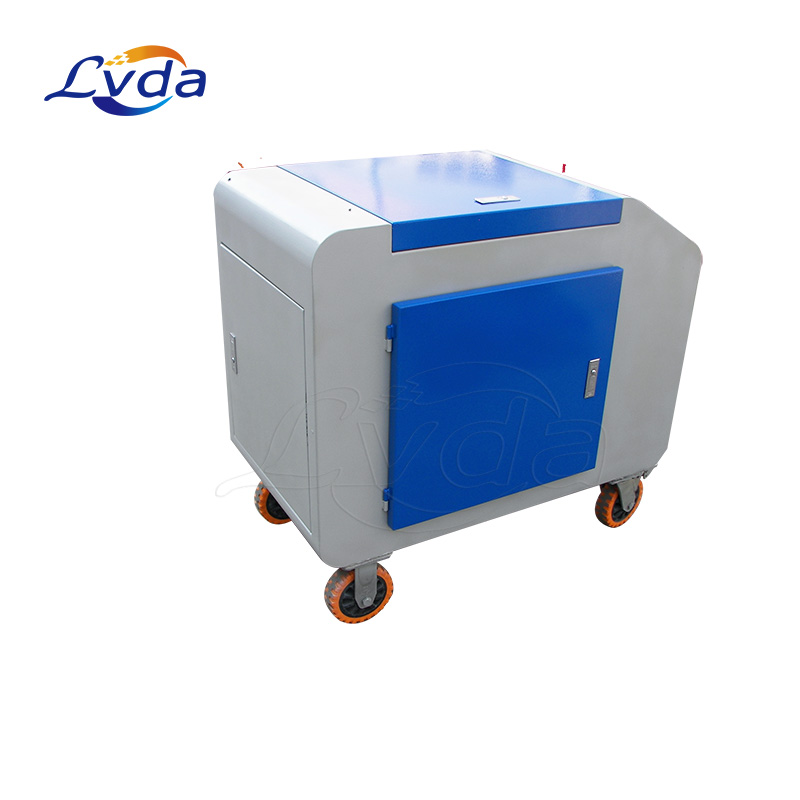

Box type/enclosed doors type dielectric oil treatment machine

Box type/enclosed doors type dielectric oil treatment machine is a ultra high vacuum oil dehydration system for Dielectric Transformer Oil Purification and Oil Regeneration. This dielectric oil filtration system can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipment working safely and normally. It's particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. The box type/enclosed doors type dielectric oil treatment machine can be used for filtration of more than 110V substation live line work on-site. Meanwhile, it can be used as independent vacuum resource with functions of vacuum drying and vacuum oiling.

Technical parameter


Model

A0P-B32-*/**

AOP- B40-*/**

AOP- B50-*/**

AOP-B63-*/**

AOP-B100-*/**

Rated flow(L/min)32
405063100
Rated pressure(MPa)0.6
Mpa(MPa)≤0.02
Coarse filter precision(μm)100
Grade 1 filter precision( μ m)3、5、10、20
Grade 2 filter precision( μ m)3、S-W
Differential pressure0.2Mpa
Working temperature(°C)5-80
Recommended viscosity(cSt)10-160
Voltage(V)AC 380V(Three- phase)、50Hz
Motor power(kw)0.751.11.11.12.2
Weight(kg)135145150156182
Dimensions(mm)
950 x 560 x 900950 x 560 x 900950 x 560 x 900950 x 560 x 9001100 x 660 x 1000

Features

Box type/enclosed doors type dielectric oil treatment machine is an upgrade material compared with normal metal metrial, it's better looking, and it can performweather proof, raining proof functions well, as new material covers, which is completely water proof, dust proof, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use. So you can take use of the machine in any weather and many circumstances for any on-site transformer oil filtration project.

Applications

All types of transformer oils, such as high-grade transformer oil, super-voltage transformer oil and new transformer oil, and etc..
