Tank-type oil filter mobile oil filter series for hydraulic or transformer oil purification
Tank-type oil filter mobile oil filter series for hydraulic or transformer oil purification
Tank-type oil filter mobile oil filter series for hydraulic or transformer oil purification

Tank-type oil filter mobile oil filter series for hydraulic or transformer oil purification

Transformer Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 100

Differential pressure : 0.2Mpa

Working temperature(°C) : 5-80

Recommended viscosity(cSt) : 10-160

Get Quotation

Product Details

Tank-type oil filter mobile oil filter series for hydraulic or transformer oil purification


Our tank-type oil filter mobile oil filter for hydraulic or transformer oil purification is the series of box-type mobile oil filters.

It is not like other box-type oil filters, our tank-type oil filter mobile oil filter series for hydraulic or transformer oil purification can choose oil filters of different volumes as oil holding tools according to clients' needs to facilitate oil filtration.Our Tank-type oil filter mobile oil filter series for hydraulic or transformer oil purification has an oil tank, it is mainly used in mining, metallurgy, petroleum, railway, mechanical and chemical industry, textile, cement, power plant, instrument and other departments.

Technical parameter

Model

A0P-B32-*/**

AOP- B40-*/**

AOP- B50-*/**

AOP-B63-*/**

AOP-B100-*/**

Rated flow(L/min)32
405063100
Rated pressure(MPa)0.6
Mpa(MPa)≤0.02
Coarse filter precision(μm)100
Grade 1 filter precision( μ m)3、5、10、20
Grade 2 filter precision( μ m)3、S-W
Differential pressure0.2Mpa
Working temperature(°C)5-80
Recommended viscosity(cSt)10-160
Voltage(V)AC 380V(Three- phase)、50Hz
Motor power(kw)0.751.11.11.12.2
Weight(kg)135145150156182
Dimensions(mm)
950 x 560 x 900950 x 560 x 900950 x 560 x 900950 x 560 x 9001100 x 660 x 1000


Feartures

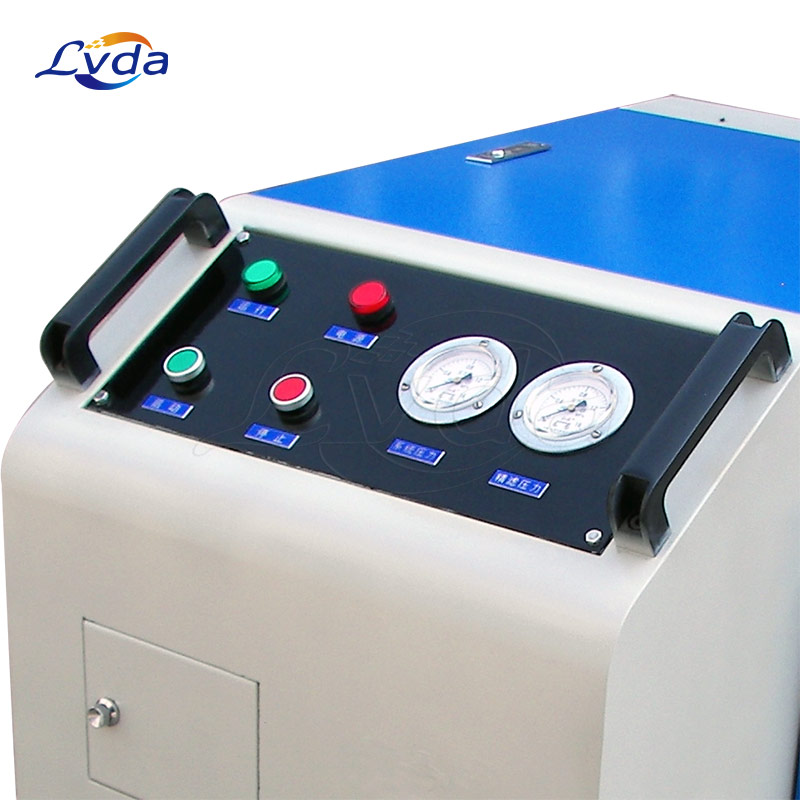

-The top design alows quick opening of the structure for easy replacement of the filter element.

-The magnetic starter is equipped with thermal relay protection to protect the motor and is durable.

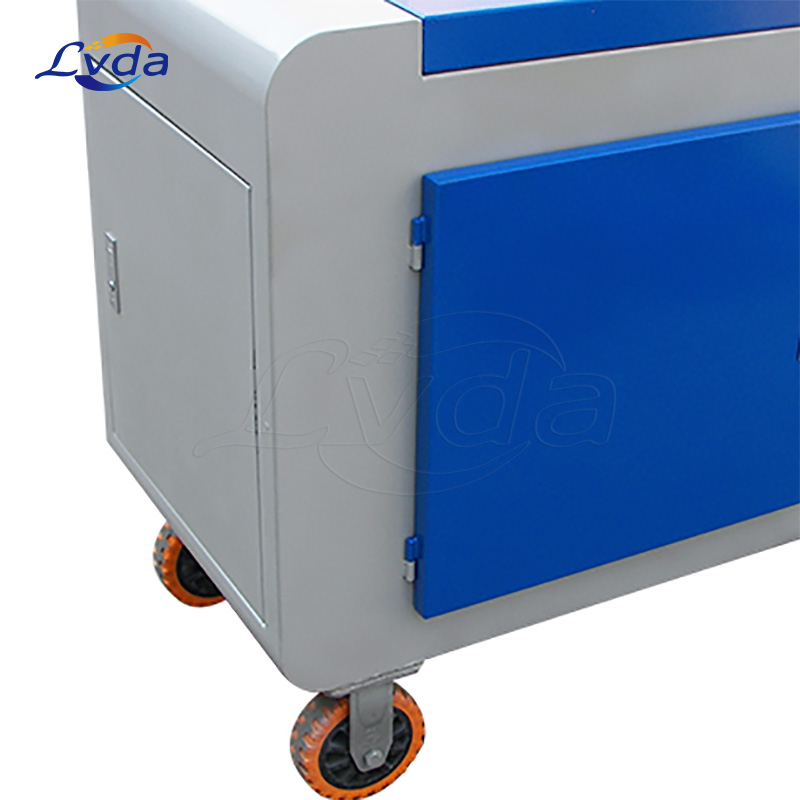

-High quality wheels, bearings, smooth running, no noise.

-Pre-iltration, fine filtration, double filtration area, long service life, and optional dewatering filter.

-The houseing can be made with stainless steel material.

Applications

The filtration and purification unit is mainly used in mining, metallurgy, petroleum, railway, mechanical and chemical industry, textile, cement, power plant, instrument and other departments. Applicable oils: Hydraulic Oil,Turbine Oil,Gear Oil,Lubrication Oil,Engine Oil,Compressor Oil,Thermic Fluids,Transformer Oils,Honing Oil,Quenching Oil,Edible Oil,Flushing Fluids,Testing Oils,Water Glycols,Fire Resistant Fluids,Rust Preventive Oils,EDM Oil,Solvents etc..
