Carton type mobile oil purifier
Carton type mobile oil purifier
Carton type mobile oil purifier

Carton type mobile oil purifier

Transformer Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 100

Differential pressure : 0.2Mpa

Working temperature(°C) : 5-80

Recommended viscosity(cSt) : 10-160

Get Quotation

Product Details

Carton type mobile oil purifier

Carton type mobile oil purifier can be optionally carried in a tank type. Comes with a fuel tank. The oil in the self-provided oil tank can be directly injected into the system after the self-circulation filtration reaches the standard. It is especially suitable for hydraulic systems containing precise components such as servo valves and proportional relief valves.

Overview:

1.Carton type mobile oil purifier uses a refined shell to wrap all components to protect the equipment from external pollution, especially suitable for occasions with high requirements for the use environment.

2.Carton type mobile oil purifier includes a special gear pump driven by a motor, which has the characteristics of low voice, strong self-priming ability and smooth operation.

3. The high pressure pipeline of the Carton type mobile oil purifier is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system. Adopt thermal relay protection to prevent motor damage caused by motor overload.

4. The oil suction port coarse filter of Carton type mobile oil purifier protects the oil pump and prolongs the service life of the main filter.

5. There are two-stage fine filters behind the pump of the Carton type mobile oil purifier, so that the oil can quickly reach a high degree of cleanliness.

6. The fine filter of the Carton type mobile oil purifier can be selected according to the different needs of users. Different precisions can be selected to achieve the required results.

7. The housing of the Carton type mobile oil purifier oil filter adopts a quick-opening structure, which can quickly and quickly open the upper benefit and replace the filter element without special tools.

8. The panel of our Carton type mobile oil purifier is equipped with a pressure gauge, which continuously indicates the operating condition of the system and the pollution degree of the filter element during operation.

Technical parameter

Model

A0P-B32-*/**

AOP- B40-*/**

AOP- B50-*/**

AOP-B63-*/**

AOP-B100-*/**

Rated flow(L/min)32
405063100
Rated pressure(MPa)0.6
Mpa(MPa)≤0.02
Coarse filter precision(μm)100
Grade 1 filter precision( μ m)3、5、10、20
Grade 2 filter precision( μ m)3、S-W
Differential pressure0.2Mpa
Working temperature(°C)5-80
Recommended viscosity(cSt)10-160
Voltage(V)AC 380V(Three- phase)、50Hz
Motor power(kw)0.751.11.11.12.2
Weight(kg)135145150156182
Dimensions(mm)
950 x 560 x 900950 x 560 x 900950 x 560 x 900950 x 560 x 9001100 x 660 x 1000

Features

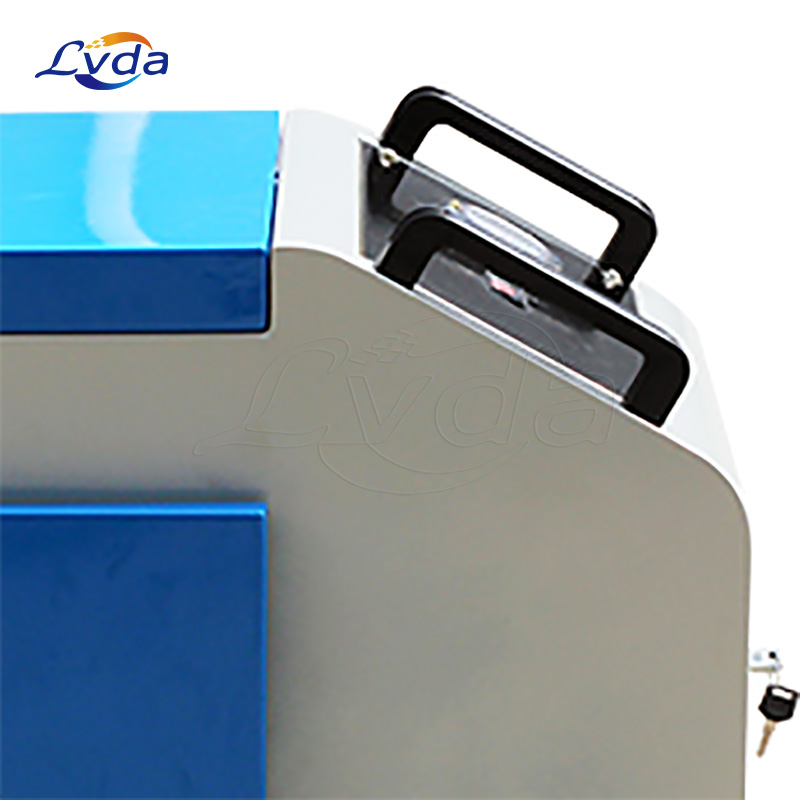

1. Fully clad car body

Neat and beautiful, fully protects all components.

2. Double stage fine filter

Pre and fine two-stage filtration, double filtration area. Longer service life and optional dewatering filter.

3. Filter element

Selected high-precision filter material, large filter area. Keep up with the international advanced level of structural design.

4. End cap

Top design. Quick opening structure, easy to replace the filter element.

5. Connect

All use hydraulic pipe joints, reliable connection and sealing, and zero leakage.

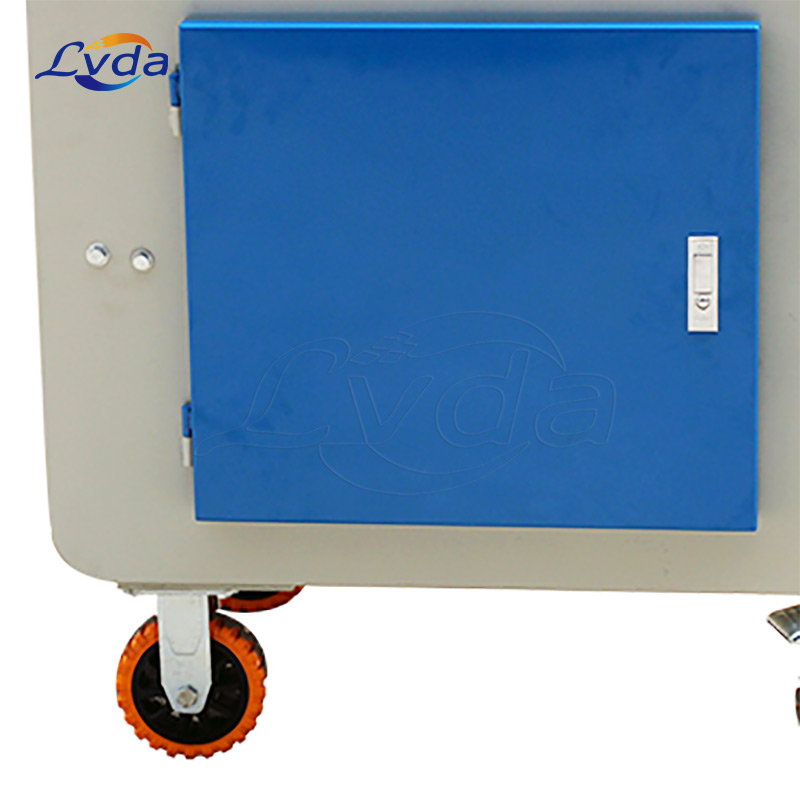

6. Wheels

Premium polyurethane wheels. Brand-name bearings, running smoothly and without noise.

7. Electrical control

It adopts magnetic starter and built-in thermal relay protection, which can effectively protect the motor and is sturdy and durable.

8. Oil suction filter

High-strength woven mesh is used to protect the oil pump from damage.

9. Pressure indication

The box-type mobile oil filter truck is equipped with a pressure gauge. It indicates the system pressure and prompts to replace the filter element in time.

10. Gear pump

Internal gear pump, quiet operation, reliable performance and long life.

11. Explosion-proof

The explosion-proof type can be selected, which is suitable for the occasions where the petroleum, chemical, aerospace and other industries are used to filter flammable and explosive media such as gasoline, diesel oil, and kerosene.

12. Bring your own fuel tank

Carton type mobile oil purifier can be optionally carried in a tank type. Comes with a fuel tank. The oil in the self-provided oil tank can be directly injected into the system after the self-circulation filtration reaches the standard. It is especially suitable for hydraulic systems containing precise components such as servo valves and proportional relief valves.

Applications

Carton type mobile oil purifier can be used for filtration of all types of transformer oils in power plants.

Carton type mobile oil purifier is connected to the hydraulic lubrication system to comprehensively improve the cleanliness of the system

Applicable oils: turbo oil, hydraulic oil, insulating oil, transformer oil, all kinds of engine oils, and etc..
