Mobile portable unit for transformer oil
Our mobile portable unit for transformer oil is ideal for transformer oil. It is designed for filtering new fluids during transfer and replenishment, flushing fluids already in service, removing particulate and water contamination, and conditioning bulk oil before use. The two stage filtration offers the advantage of removing both particulate and water contamination. We also offer a particle counter as well as 3-Stage By-Pass option.
The mobile portable unit for transformer oil is constructed with a strong, lightweight aluminum cart with puncture-resistant tires. It is available with china-made rated Microglass and Water Absorbing filter elements. It also includes oil sampling ports on the inlet and outlet connections to provide ISO 4406 code comparisons. This will allow you to meet your target ISO cleanliness codes and prolong the life of your equipment and fluids.
On average new oil delivered from a drum has a cleanliness level of ISO cleanliness code of 22/21/19. Water content from new oil averages 200 to 300 PPM. A Pneumatic Pump with Pulsation Dampener is available as an option. There is customization service for our products.
Parameters
Model | AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
Rated flow(L /min) | 25 | 32 | 40 |
50 | 63 | 100 | 150 |
Rated pressure(MPa) | 0.6 | ||||||
Mpa(MPa) | ≤0.02 | ||||||
Coarse filter precision(μm) | 100 | ||||||
Grade 1 filter rating(μm) | 10、20、40 | ||||||
Grade 2 filter rating(μm) | 3、5、 10、S-W | ||||||
Differential pressure | 0.2Mpa | ||||||
Working temperature(°C) | 5-80 | ||||||
Recommended viscosity(cSt) |
10- 160 | ||||||
Voltage(V) |
AC 380V(Three-phase)、50Hz | ||||||
Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 |
2.2 |
3.0 |
Weight(kg) | 46 |
78 |
90 |
96 |
102 |
120 |
160 |
Dimensions(mm) | 520x350 x950 |
520 x350x950 |
720x 680 x 1020 |
720 x<680 x 1020 |
720 x 680x 1020 |
720x 750x 1020 |
720x750x 122 |

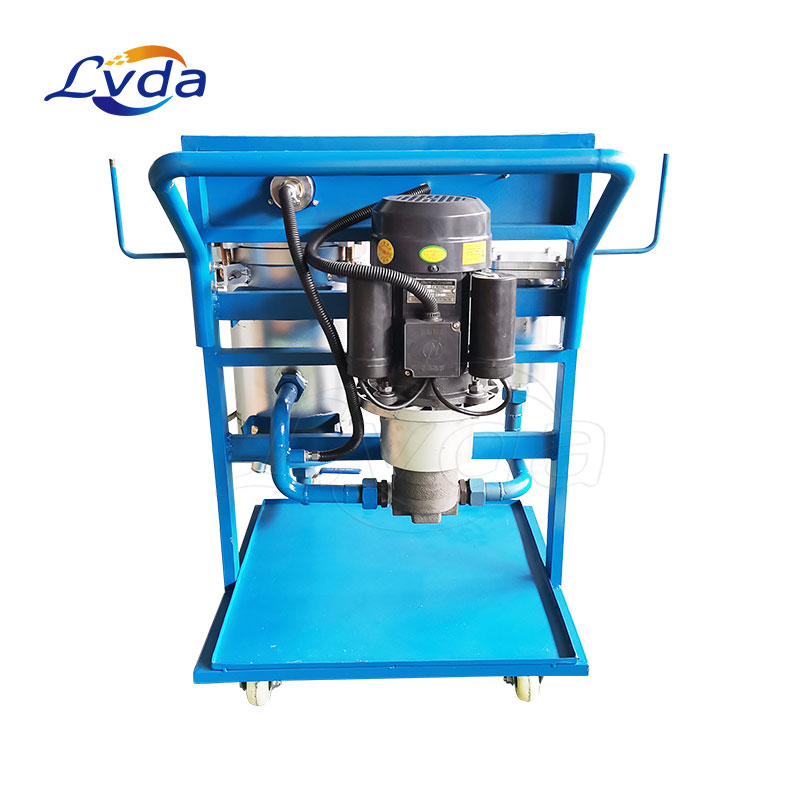

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.

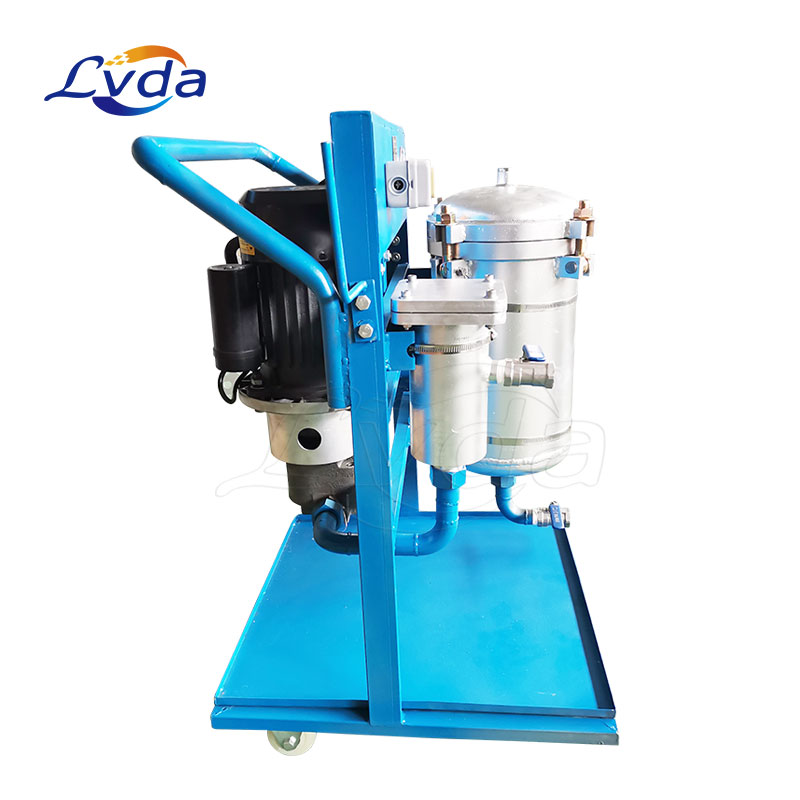

The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Available with all features and options of other portable filters. Mounted on a four-wheel dolly with drip edge.
For those who treat fluids at different locations, these units can be towed to the site for use.
PD cartridges will remove water and particulate from the fluids.
Available with pumps to 50 gpm.
Movable, high filtration precision, easy to operate
Small size and portable, low-noisy.
No need of filter paper, no contamination to ground and at very economical price.
Can be installed with well-sealed anti-explosion electric control cabinet.(optional)
ISO Viscosity Range of ISO 22 to ISO 320
Seamless Stainless Steel Tubing with JIC Fittings
Our mobile portable unit for transformer oil can transfer oil from long distance and high lift.
Applications
Acid reduction as well as particulate removal. Multiple stages accomplish different, off-site conditioning of transformer oils.
