Compact purification and filtration trolley for industrial oils
Compact purification and filtration trolley for industrial oils
Compact purification and filtration trolley for industrial oils

Compact purification and filtration trolley for industrial oils

Transformer Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 100

Working temperature(°C) : 5-80

​Voltage(V) : AC 380V(Three-phase)、50Hz

Recommended viscosity(cSt) : 10~160

Get Quotation

Product Details

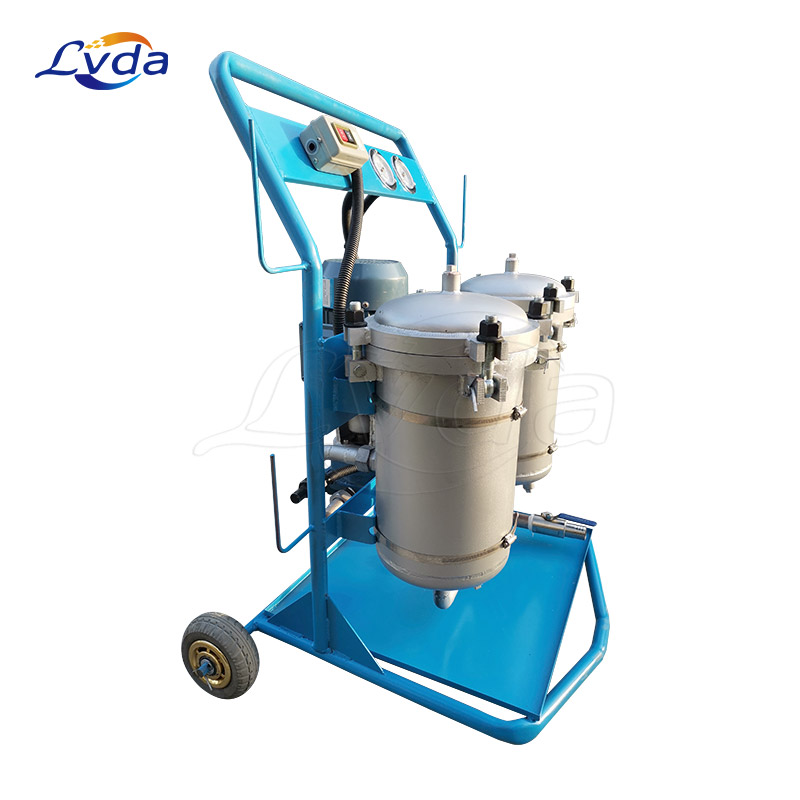

Compact purification and filtration trolley for industrial oils

Our compact purification and filtration trolley for industrial oils increases the reliability of power transformer, eliminates unscheduled repairs and downtime, and also saves money on purchases of fresh oils. We produce customized oil filtration plants for individual orders, supervise installation and commissioning and assist with the startup of equipment. In addition, it is possible to add new features and functions.

We offer a wide range of mineral oil purification systems, most commonly used for purification of electrical insulating oil, suitable for any specific application.

One important feature of our compact purification and filtration trolley for industrial oils is the capability to operate with energized transformers. To do so, the oil purification machine and the transformer are connected using a Transformer Safety System. This device takes a reading of oil level inside the transformer prior to operation and keeps the level unchanged throughout processing. Using quick coupling makes connecting our oil purification systems to transformers incredibly simple.

Transformer oil often contains water that has a significant adverse effect on the quality and performance of the oil, decreasing breakdown voltage and accelerating aging. Our company offers a range of products for transformer oil filtration and purification. These systems rid the oil from water, gas and solid particles.

Parameters

Model AOP-B25

-*/**

A0P-B32

-*/**

A0P-B40

-*/**

A0P-B50

-*/**

A0P-B63

-*/**

A0P-B100

-*/**

A0P-B150

-*/**

Rated flow(L /min) 25 32

40

50 63 100 150
Rated pressure(MPa) 0.6
Mpa(MPa) ≤0.02
Coarse filter precision(μm) 100
Grade 1 filter rating(μm) 10、20、40
Grade 2 filter rating(μm) 3、5、 10、S-W
Differential pressure 0.2Mpa
Working temperature(°C) 5-80

Recommended viscosity(cSt)

10- 160

Voltage(V)

AC 380V(Three-phase)、50Hz
Motor power(kw) 0.55 0.75 1.1 1.1 1.5
2.2
3.0
Weight(kg) 46
78
90
96
102
120
160
Dimensions(mm) 520x350 x950
520 x350x950
720x 680 x 1020
720 x<680 x 1020
 720 x 680x 1020
 720x 750x 1020
720x750x 122

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.

The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.

Use thermal relay protection to prevent the motor from being damaged due to motor overload.

The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.

There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.

Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.

The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

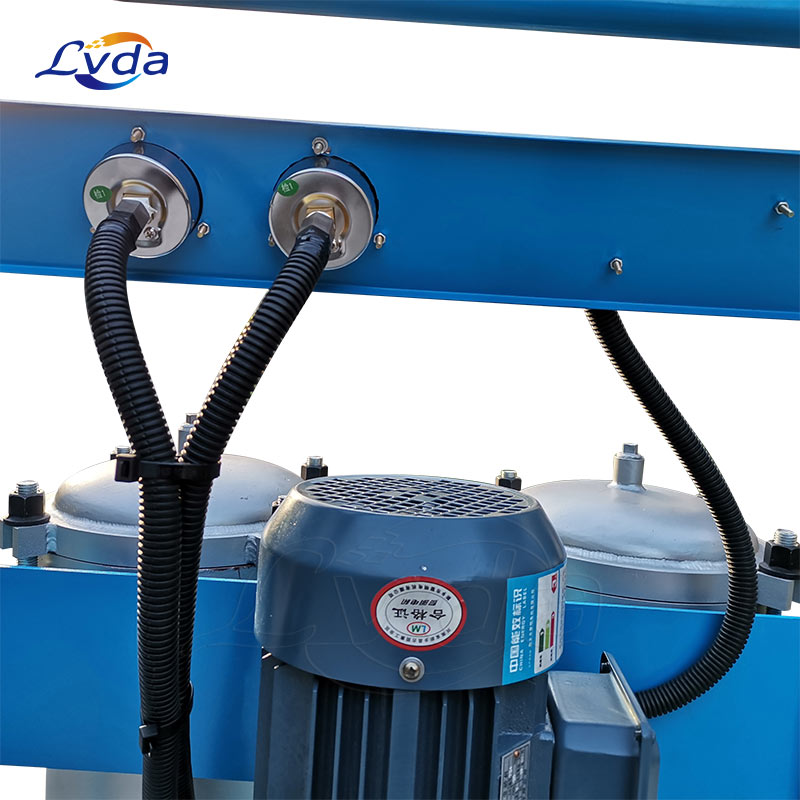

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.

Features

Explosion proof

Can process oil with extremely high water content, as high as 50/50 % and above;

The processed material is not subjected to heating, chemicals or other factors that can adversely affect its properties;

Low power consumption;

Relative compact dimensions;

High mobility

Applications

We manufacture and supply equipment for transformer oil filtration, industrial oils, turbine and other types of oils.

All types of turbine oils, turbine oils with water content

Turbine Oil Conditioning

Particulate and Water Removal

Gearbox Flushing & Oil Change

Filtration System Upgrades

Refinery Upset Conditions

Complete System Flushing

High Viscosity Lubrication and Hydraulic Oils

Transfer and Replenishment of New Fluids
