Product Details
Transformer oil filter mobile portable system equipment trolley
We provide a full range of transformer oil filter mobile portable system equipment trolley to meet every critical industrial filtration need, available for purchase so that you can filtrate your transformer oils. Our most popular systems, our transformer oil filter mobile portable system equipment trolley, are ideal for use in industrial plants and with many other applications because they are versatile, reliable, and portable. A portable filter cart can be used to filter nearly any type of hydraulic fluid, including insulating oils, lubricating oils, and coolants.
We can do customize your transformer mobile filtration system to meet your demands. Our transformer oil filter mobile portable system equipment trolley is perfect for removing particulate and water contamination from hydraulic fluids, such as high-viscosity transformer oil. A transformer oil filter mobile portable system equipment trolley can also help transfer and replenish new fluids, as well as flush fluids that are already in service with high-efficiency elements.
Our transformer oil filter mobile portable system equipment trolley can treat flow rates as low as 0.7 GPM all the way to higher flow rates (such as 20 GPM) that are required in most industrial applications. We offer a large variety of materials and types of construction, including stainless steel and explosion-proof functions!
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

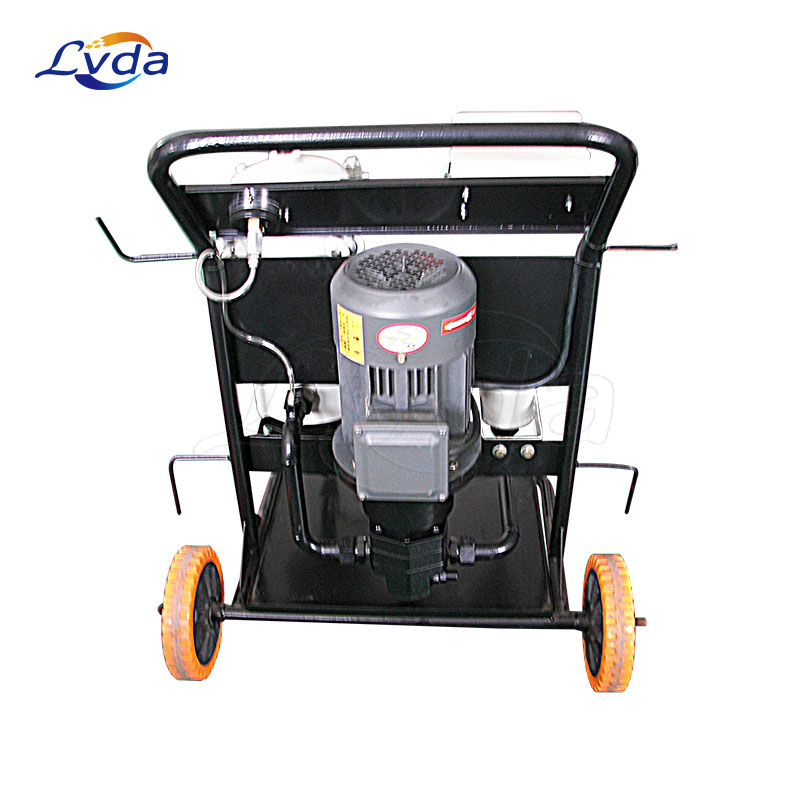

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

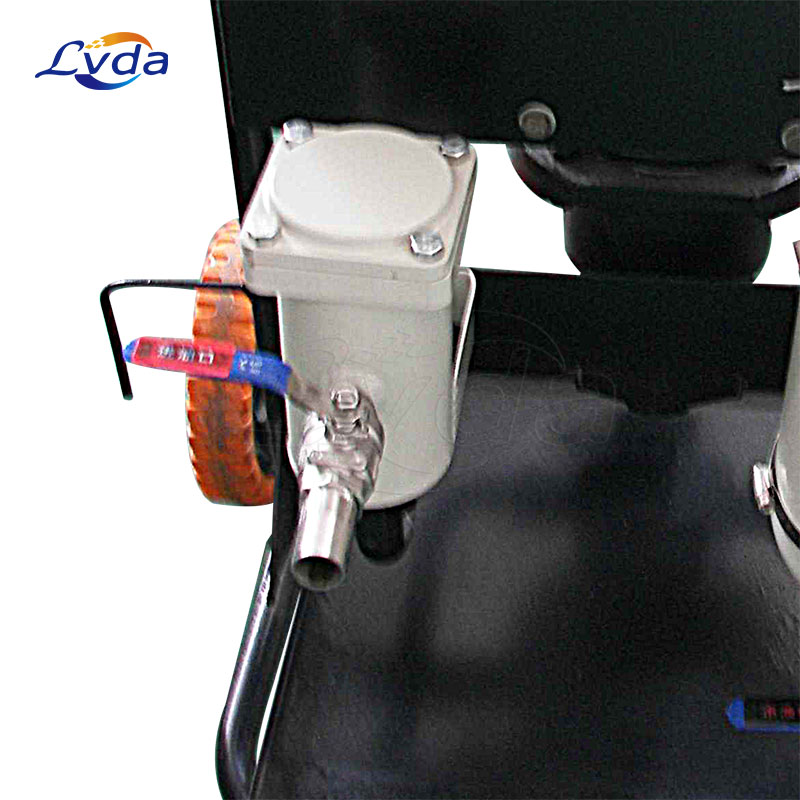

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Flow Rates Range from 1 GPM to 20 GPM
Electrical Service
1Phase/60Hz/115/230V
1Phase/50Hz/120/230V
3Phase/60Hz/230/460V
3Phase/50Hz/380-450V
Explosion Proof (Class 1)
Pump Specifications
Self-Priming Positive Displacement Gear Pump
Internal Relief Valve Set at 100 PSI
Motor Options
Class 1 Explosion Proof
Pneumatic Pump with Pulsation Dampener
50 Hertz, 3 Phase
Material of Construction
Assembly Frame: Lightweight Aluminum
Inlet Suction Strainer for Pump Protection
Tires: 10” Pneumatic (Puncture-Resistant)
Filter Assembly: Aluminum Head, Steel Canister
Hoses: Medium Pressure Hydraulic
Wands: 40” Stainless Steel
Operating Temperature
Nitrile (Buna-N): -40F to 150F
Fluorocarbon (Viton)*: -15F to 200F
High Temperature/Phosphate Ester Design
Applications
Transformer oil
Particulate and Water Removal
Hydraulic Reservoir Maintenance
Gearbox Flushing & Oil Change
Filtration System Upgrades
Turbine Oil Conditioning
Refinery Upset Conditions
Complete System Flushing
Liquid Coalescing and Separating
High Viscosity Lubrication and Hydraulic Oils
Transfer and Replenishment of New Fluids
Reusing Oil and Prolonging Machinery Life
