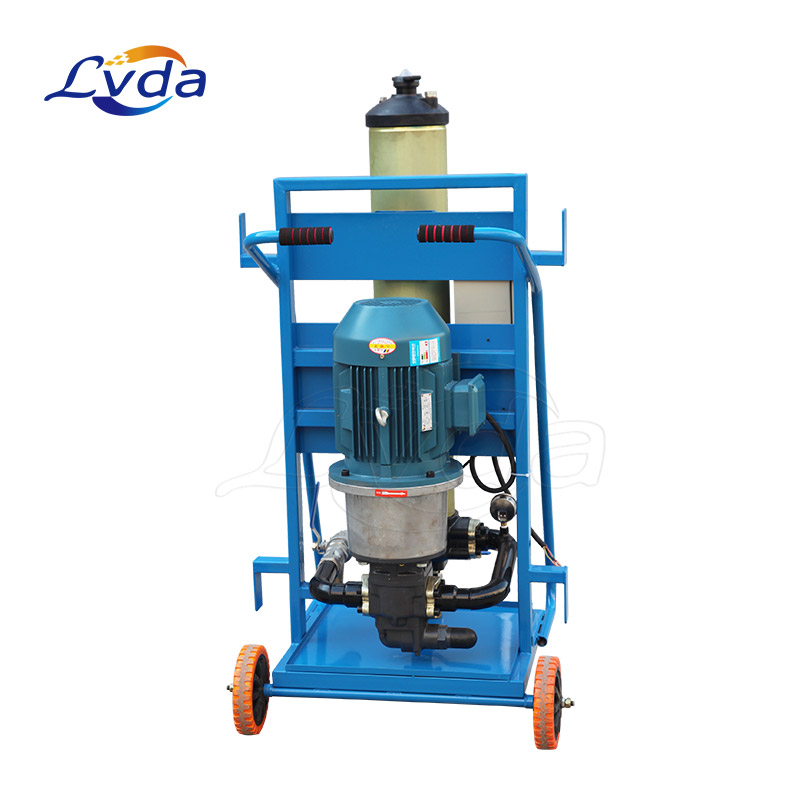

Moveable mechanical oil purifier
The series moveable mechanical oil purifier is designed for power station, electricity factory, mineral enterprise, lube depot, tractor station, petroleum, chemical engineering, metallurgy, national defense unit etc. for filtering water and impurities of transformer oil, turbine oil, engine oil, diesel oil, kerosene, aviation hydraulic oil as well as edible oil, while using stainless steel. The moveable mechanical oil purifier is made up of filter bed, oil pump and rough filter. There are filtering media such as filtering paper or filtering fuse, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse play a role of filtration. It’s characterized by simple structure, easy operation, low operation cost.
Series moveable mechanical oil purifier is composed of high pressure pump, oil storage tank and precise filtering, this machine is an ideal machine for cleaning the dirty oil pipes of those hydraulic equipments, gear ,turbine equipments as well as collecting and purifying the waste oil come back from the pipes. It can efficaciously remove impurities including sludge and carbon matters from oil, so as to recover the oil nature and make the machine work normally and effectively, for maintaining the hydraulic equipment from blocking and corrupting by impurities. It will greatly prolong the oil and equipments service life.
Parameters
Model | AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
Rated flow(L /min) | 25 | 32 | 40 |
50 | 63 | 100 | 150 |
Rated pressure(MPa) | 0.6 | ||||||
Mpa(MPa) | ≤0.02 | ||||||
Coarse filter precision(μm) | 100 | ||||||
Grade 1 filter rating(μm) | 10、20、40 | ||||||
Grade 2 filter rating(μm) | 3、5、 10、S-W | ||||||
Differential pressure | 0.2Mpa | ||||||
Working temperature(°C) | 5-80 | ||||||
Recommended viscosity(cSt) |
10- 160 | ||||||
Voltage(V) |
AC 380V(Three-phase)、50Hz | ||||||
Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 |
2.2 |
3.0 |
Weight(kg) | 46 |
78 |
90 |
96 |
102 |
120 |
160 |
Dimensions(mm) | 520x350 x950 |
520 x350x950 |
720x 680 x 1020 |
720 x<680 x 1020 |
720 x 680x 1020 |
720x 750x 1020 |
720x750x 122 |

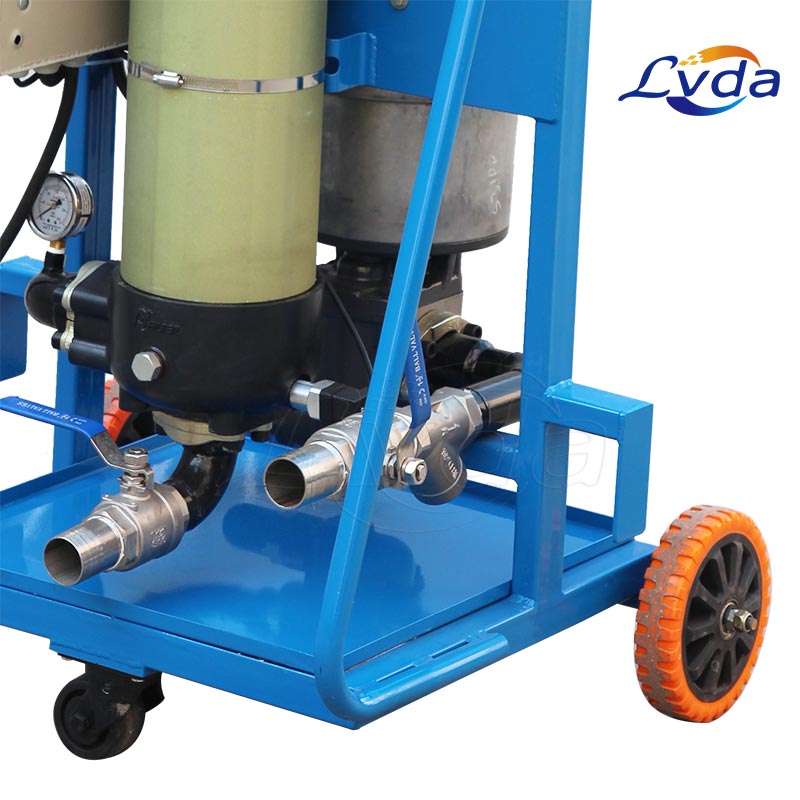

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
1.Using high-quality filter, pollutant carrying capacity, corrosion resistance, high temperature resistance, high mechanical strength, high precision filtering
2.The oil can get to the new oil standard after filtering the mechanical impurities in it
3.Provide the best performance and the most compact design
4.High efficiency, low noise, long life
5.It's characterized by simple structure, easy operation, low operation cost, etc..
Applications
The series moveable mechanical oil purifier can do precision filtering, remove the tiny or big sized impurity, particle, sediments,and sludes from waste oils, such as transformer oil, lubricant oil, hydraulic oil,turbine oil,gear oil,and industrial oils etc. It can be also as a pre-filter for all oil treatment equipments.
