Transformer Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 100

Working temperature(°C) : 5-80

​Voltage(V) : AC 380V(Three-phase)、50Hz

Recommended viscosity(cSt) : 10-160

Get Quotation

Product Details

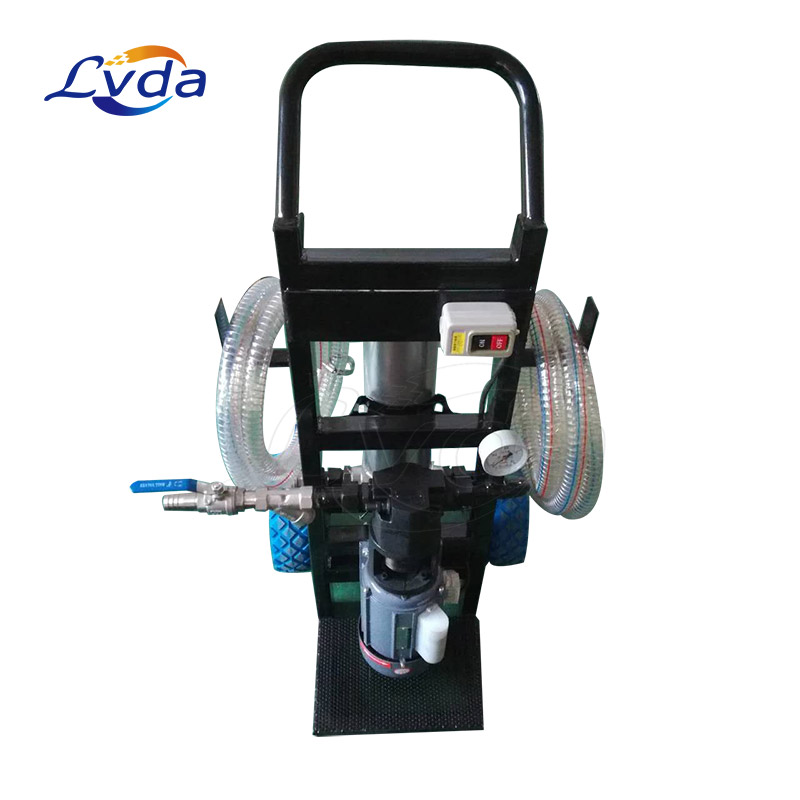

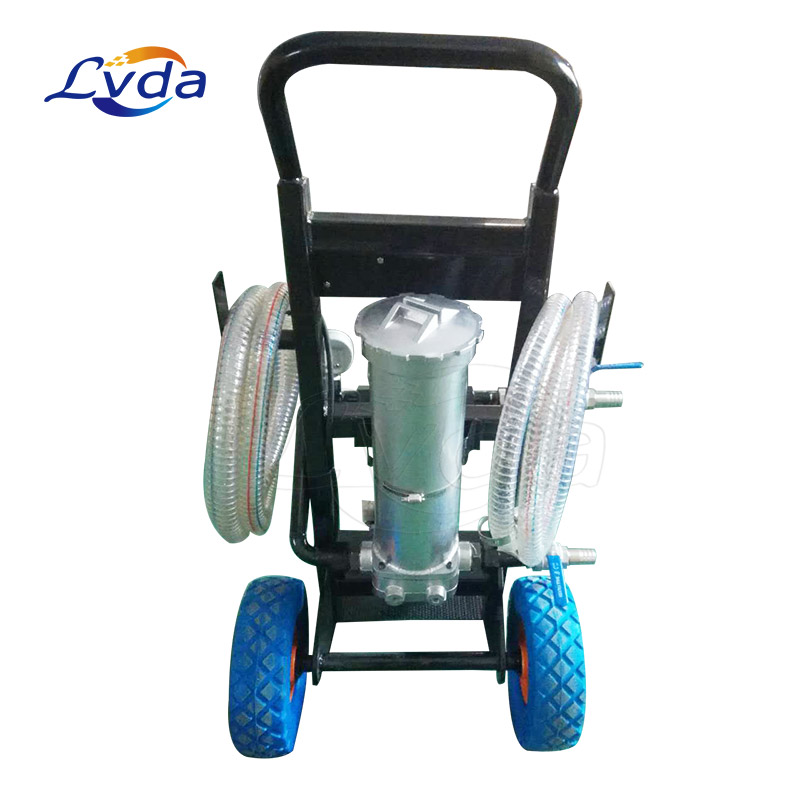

Moveable pressure oil purifier

Moveable pressure oil purifier can purify transformer oil, turbine oil, hydraulic oils, gear oils, lubricating oil and remove water, mechanical impurities. It is consisted of filter bed, plates, oil pump, motor and filtering papers. The filter bed and plates consist of a filter house, between the plates, the papers as filtering media. It also can purify fuel oil, cooking oil by using special materials and motor. Our series oil purifier has a simple structure, convenient filter replacement, high filtration precision, easy operation, low cost.

As composed of three-stage precise filter elements, this machine is an ideal portable moveable oil purifier, which can remove the big and tiny impurities effectively.

Parameters

Model AOP-B25

-*/**

A0P-B32

-*/**

A0P-B40

-*/**

A0P-B50

-*/**

A0P-B63

-*/**

A0P-B100

-*/**

A0P-B150

-*/**

Rated flow(L /min) 25 32

40

50 63 100 150
Rated pressure(MPa) 0.6
Mpa(MPa) ≤0.02
Coarse filter precision(μm) 100
Grade 1 filter rating(μm) 10、20、40
Grade 2 filter rating(μm) 3、5、 10、S-W
Differential pressure 0.2Mpa
Working temperature(°C) 5-80

Recommended viscosity(cSt)

10- 160

Voltage(V)

AC 380V(Three-phase)、50Hz
Motor power(kw) 0.55 0.75 1.1 1.1 1.5
2.2
3.0
Weight(kg) 46
78
90
96
102
120
160
Dimensions(mm) 520x350 x950
520 x350x950
720x 680 x 1020
720 x<680 x 1020
 720 x 680x 1020
 720x 750x 1020
720x750x 122

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.

The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.

Use thermal relay protection to prevent the motor from being damaged due to motor overload.

The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.

There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.

Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.

The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.

Features

1.Can purify the tiny and fine mechanical impurities oil to remove the harmful materials.

2. A prior choice for high precision removing impurities.

3. With the function of oil filling & oil drawing.(for equipments required small quantity of oil)

4. No heating system, saving energy.

5.The filter microns can be customized design for different quality oils.

6.It can be used for any oil which needs to remove particles.

7.It’s characterized by simple structure, easy operation, low operation cost, ect.

Applications

Effectively purify the tiny and fine mechanical impurities oil, enabling it to be a prior choice of power industry, petroleum,chemical, metallurgy, mechanics and railway enterprises for oil filtration, oil filling, oil drawing.
