Transformer Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 100

Working temperature(°C) : 5-80

​Voltage(V) : AC 380V(Three-phase)、50Hz

Recommended viscosity(cSt) : 10-160

Get Quotation

Product Details

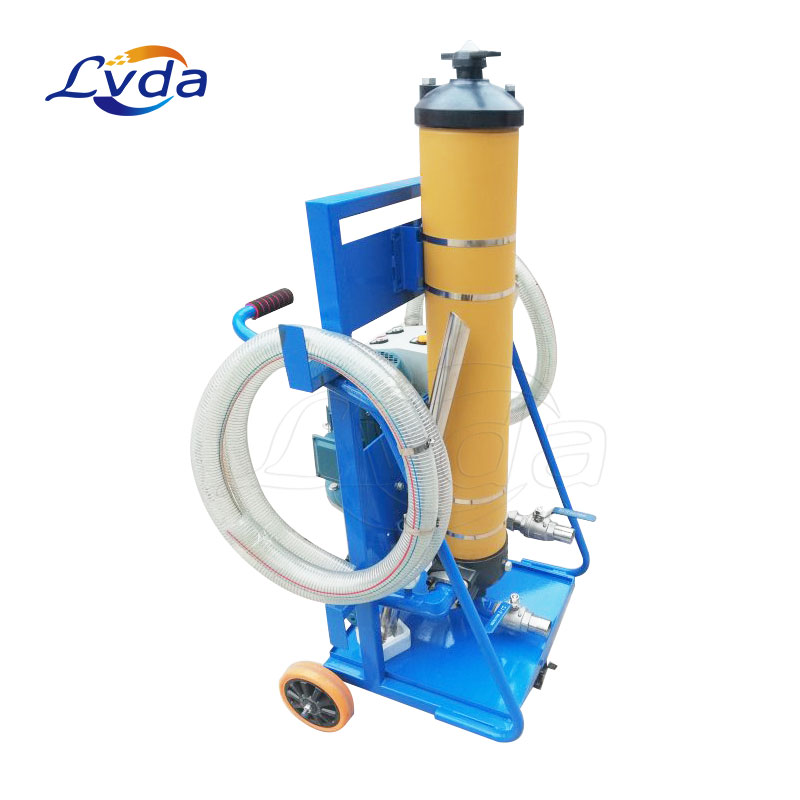

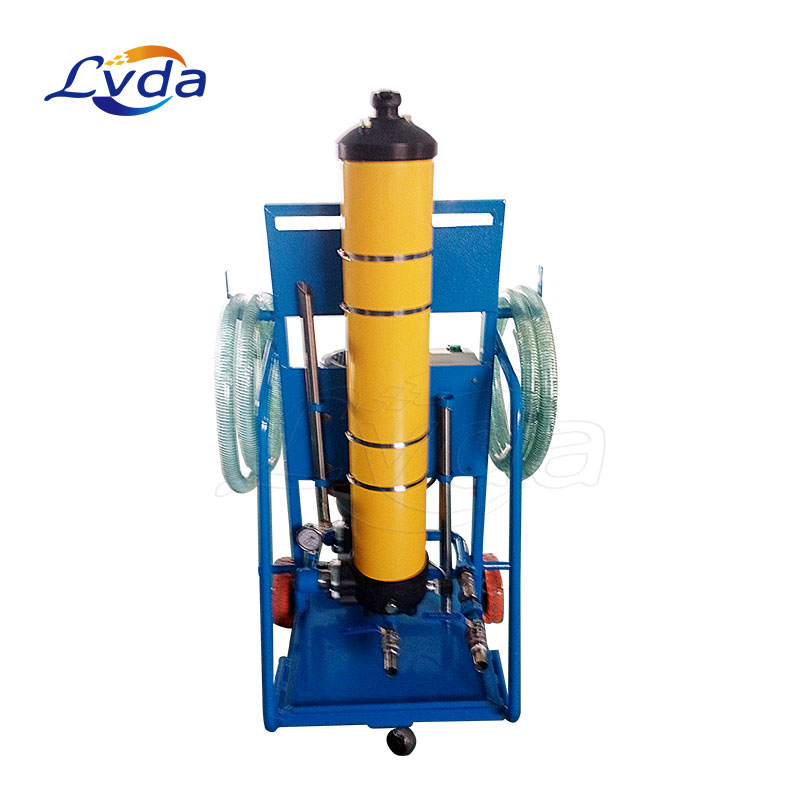

Transformer oil moveable purification unit

Transformer oil moveable purification unit is used for transformer oil filling & filtration, especially used for big impurities and tiny particles removal from used oil,applicable to filtrate mechanical oil, hydraulic oil, compressor oil, turbine oil, insulating oil, when it is made of stainless steel filter element.

Composed of precise filters, it is an ideal substitute of the board-frame oil purifier and the centrifugal oil purifier. It is an ideal equipment to transfer different kinds of oil from one container to another; at the same time the oil goes through filtration process.


After treatment:

Gas content is less than 0.1%

Impurity size is less than 1μm without free carbon

Water content is less than 3 part per million

Oil dielectric strength (breakdown voltage) is more than 75KV

Acidity value is less than 0.01 mg KOH/g

Dielectric loss factors at 90C is less than 0.001

Parameters

Model AOP-B25

-*/**

A0P-B32

-*/**

A0P-B40

-*/**

A0P-B50

-*/**

A0P-B63

-*/**

A0P-B100

-*/**

A0P-B150

-*/**

Rated flow(L /min) 25 32

40

50 63 100 150
Rated pressure(MPa) 0.6
Mpa(MPa) ≤0.02
Coarse filter precision(μm) 100
Grade 1 filter rating(μm) 10、20、40
Grade 2 filter rating(μm) 3、5、 10、S-W
Differential pressure 0.2Mpa
Working temperature(°C) 5-80

Recommended viscosity(cSt)

10- 160

Voltage(V)

AC 380V(Three-phase)、50Hz
Motor power(kw) 0.55 0.75 1.1 1.1 1.5
2.2
3.0
Weight(kg) 46
78
90
96
102
120
160
Dimensions(mm) 520x350 x950
520 x350x950
720x 680 x 1020
720 x<680 x 1020
 720 x 680x 1020
 720x 750x 1020
720x750x 122

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.

The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.

Use thermal relay protection to prevent the motor from being damaged due to motor overload.

The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.

There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.

Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.

The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.

Features

Dehydration and degassing and removing impurities from the used transformer oil.

Eliminate acidity, sludge, free carbon, discoloration elements, and other soluble matters in the oil, which decays the transformer.

It can vacuum dry transformers and on-line operation with transformer.

It is designed for purifying and filtering oils in workshops, in storage tanks or directly in transformers (energized or de-energized transformers).

Applications

It is mainly used for purifying the insulating oil, transformer oil, mutual oil, switch oil, dielectric oil and so on.It can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil.
