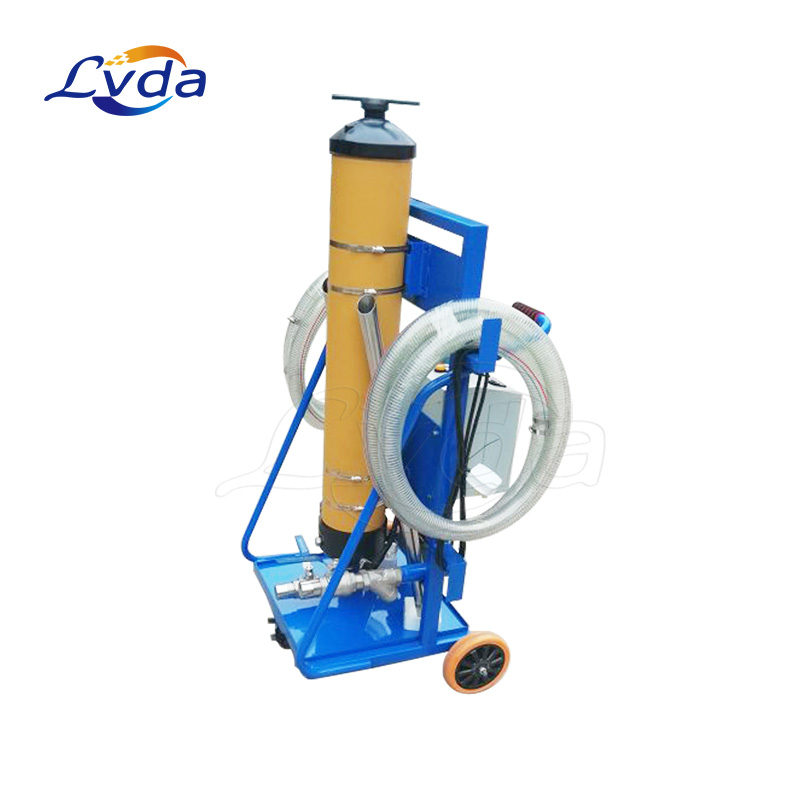

Mobile transformer oil purification system
With the rapid development of the hydraulic industry, higher requirements are put forward for the reliability of the hydraulic system. At present, about 70% of the faults in the hydraulic system are caused by the pollution of the oil. In order to control the pollution degree of the hydraulic system , in addition to installing an oil filter in the hydraulic system. The new oil injected into the system needs to be pre-filtered with an oil filter truck. At the same time, the oil filter truck can also be used to circulate and filter the hydraulic system to purify the system oil.
According to the needs of users, our company has developed an oil filter car with a metering function. The amount of oil added can be displayed by a digital flow meter, which can not only refuel quantitatively, but also filter the oil.
The biggest feature of this fine oil filter truck is high oil filter accuracy, reliable performance, compact structure, beautiful appearance and flexible movement, easy to use and maintain. Users can freely choose according to their needs. As long as the filter element of different precision is exchanged, the use requirements can be met.
The fine oil filter truck can be used for infusion or regular filtration of the oil in the hydraulic system, static pressure system, lubrication system and various oil systems. It also has a certain economic effect on dirty oil recovery. It is an ideal energy-saving device.
The fine oil filter truck only filters out impurities in the oil. It has no effect on the indicators of the oil.
Use and maintenance
*The oil pump cannot be reversed when the oil filter truck is started, and it can work normally only after the steering is confirmed.
*In order for the fine filter element to work normally, the exhaust valve should be opened in time to exhaust the air in the filter cartridge.
*After the oil filter truck is used for a period of time, the noise of the oil pump increases due to the blockage of the coarse filter element, and the coarse filter element should be cleaned in time.
*After the fine filter element has been used for a period of time, when the pressure is as high as 0.4 Mpa due to the blockage of pollutants, it should be cleaned or replaced in time.
*If the oil filter truck cannot pump oil, check whether the oil pump is turned correctly, whether the seal between the oil tank and the oil pump suction port is reliable, and whether the oil suction port is away from the oil surface or the oil has been sucked out.
* When it is found that the flow rate of the oil filter vehicle is reduced, it is necessary to check whether the coarse and fine filter elements are seriously blocked. Whether the shaft seal of the oil pump is worn or blown out due to reverse rotation, and air is sucked in.
Parameters
Model | AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
Rated flow(L /min) | 25 | 32 | 40 |
50 | 63 | 100 | 150 |
Rated pressure(MPa) | 0.6 | ||||||
Mpa(MPa) | ≤0.02 | ||||||
Coarse filter precision(μm) | 100 | ||||||
Grade 1 filter rating(μm) | 10、20、40 | ||||||
Grade 2 filter rating(μm) | 3、5、 10、S-W | ||||||
Differential pressure | 0.2Mpa | ||||||
Working temperature(°C) | 5-80 | ||||||
Recommended viscosity(cSt) |
10- 160 | ||||||
Voltage(V) |
AC 380V(Three-phase)、50Hz | ||||||
Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 |
2.2 |
3.0 |
Weight(kg) | 46 |
78 |
90 |
96 |
102 |
120 |
160 |
Dimensions(mm) | 520x350 x950 |
520 x350x950 |
720x 680 x 1020 |
720 x<680 x 1020 |
720 x 680x 1020 |
720x 750x 1020 |
720x750x 122 |

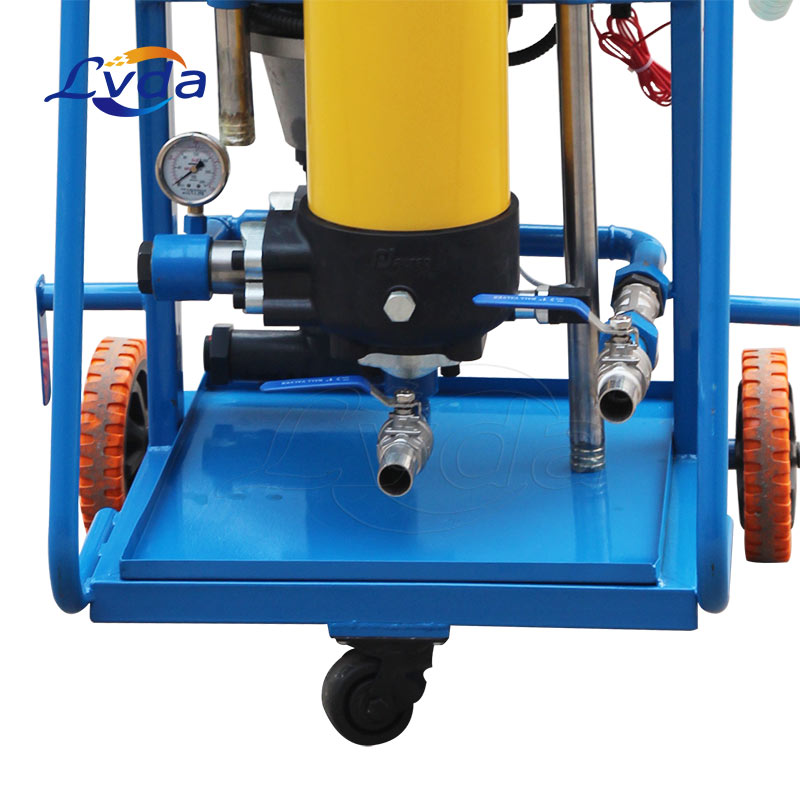

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
This transformer oil purification system can move around for on-site oil filtration job, easy and steady for transport. Since it is completely water proof, dust proof, it can protect the machine not to be damaged by raining weather, or in other bad circumstance use. So you can use the machine in any weather and many circumstances for any on-site oil filtration project.
Applications
Our mobile transformer oil purification system can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from insulating oil effectively to improve oil's dielectric strength to be above 75~80KV. It is suitable for on-site transformer oil purification and oil maintenance for different places. Besides this, this system can also vacuuming transformers and oil injecting transformers.
