Industrial oil impurity removal small cart oil filter
Industrial oil impurity removal small cart oil filter
Industrial oil impurity removal small cart oil filter

Industrial oil impurity removal small cart oil filter

Transformer Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 100

Working temperature(°C) : 5-80

​Voltage(V) : AC 380V(Three-phase)、50Hz

Recommended viscosity(cSt) : 10-160

Get Quotation

Product Details

Industrial oil impurity removal small cart oil filter

Our industrial oil impurity removal small cart oil filter is mainly used to get rid of solid impurities from all kinds of edible oil, motor oil, lubrication oil, insulation oil and so on. it also can use in the long-distance and the high- lift oil pumping and oil injection.

This machine has filters, which respectively pre-filter, and fine filter.The stainless steel filters element are applied that made from China, ensure this machine can run safely with high performance and can continuously run about 720 hours. Portable and flexible, and it is designed looks like go-cart for easy to operate. Environment-friendly and energy-saving, without filtration paper and will not pollute the location. There is a wider usage and longer life- span compare with ordinary pressure oil purifier. It contains pressure protector, which will alarm automatically when it’s overpressure; it contains heating system, when oil viscosity≥200cSt, you can choose this one. And  this is widely used in factory, power plant, oil storage and laboratory, also it can be used to clean oil filling.

Parameters

Model AOP-B25

-*/**

A0P-B32

-*/**

A0P-B40

-*/**

A0P-B50

-*/**

A0P-B63

-*/**

A0P-B100

-*/**

A0P-B150

-*/**

Rated flow(L /min) 25 32

40

50 63 100 150
Rated pressure(MPa) 0.6
Mpa(MPa) ≤0.02
Coarse filter precision(μm) 100
Grade 1 filter rating(μm) 10、20、40
Grade 2 filter rating(μm) 3、5、 10、S-W
Differential pressure 0.2Mpa
Working temperature(°C) 5-80

Recommended viscosity(cSt)

10- 160

Voltage(V)

AC 380V(Three-phase)、50Hz
Motor power(kw) 0.55 0.75 1.1 1.1 1.5
2.2
3.0
Weight(kg) 46
78
90
96
102
120
160
Dimensions(mm) 520x350 x950
520 x350x950
720x 680 x 1020
720 x<680 x 1020
 720 x 680x 1020
 720x 750x 1020
720x750x 122

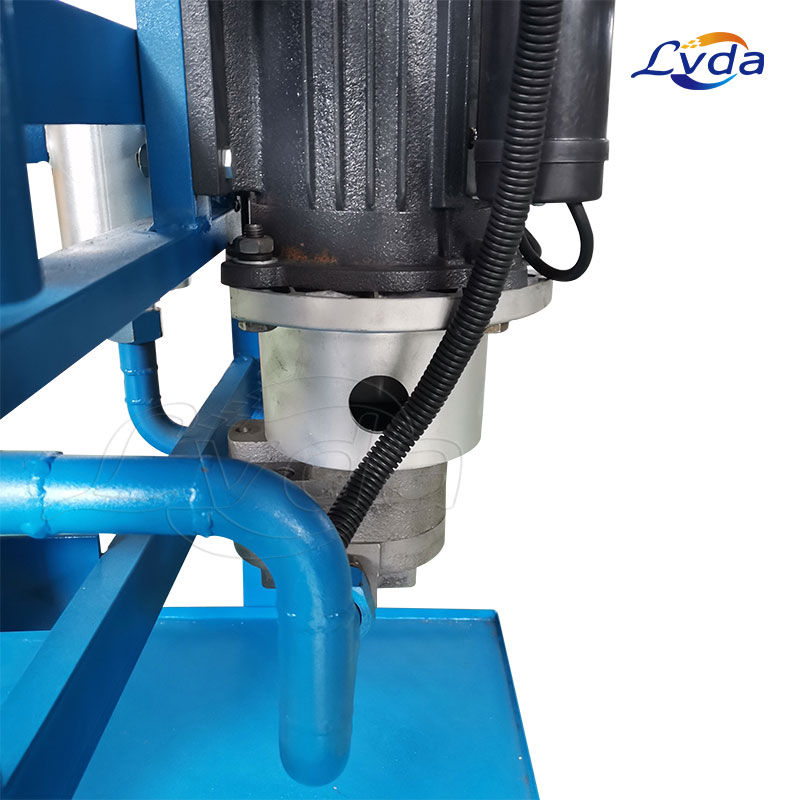

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.

The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.

Use thermal relay protection to prevent the motor from being damaged due to motor overload.

The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.

There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.

Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.

The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.

Features

This Industrial oil impurity removal small cart oil filter is composed of gear pump, filter, safety valve, oil return valve, filter bed, pressure gauge, filter plate, filter frame, oil filter paper, oil pan, front bracket, rear bracket, chassis , couplings, and motors and other components.

Applications

Industrial oil impurity removal small cart oil filter is specially designed for power plants, steel mills, oil depots and related factories and enterprises for hydraulic oil, lubricating oil, transformer oil, quenching oil, turbine oil, heat transfer oil, compressor oil, insulating oil, diesel oil It can be used to filter industrial oil, remove impurities and trace moisture, improve the cleanliness and pressure resistance of the oil, and has a good purification effect on the oil. It is an ideal oil filter recovery equipment.
