Portable plate pressure used oil purifier machine
Portable plate pressure used oil purifier machine
Portable plate pressure used oil purifier machine

Portable plate pressure used oil purifier machine

Transformer Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

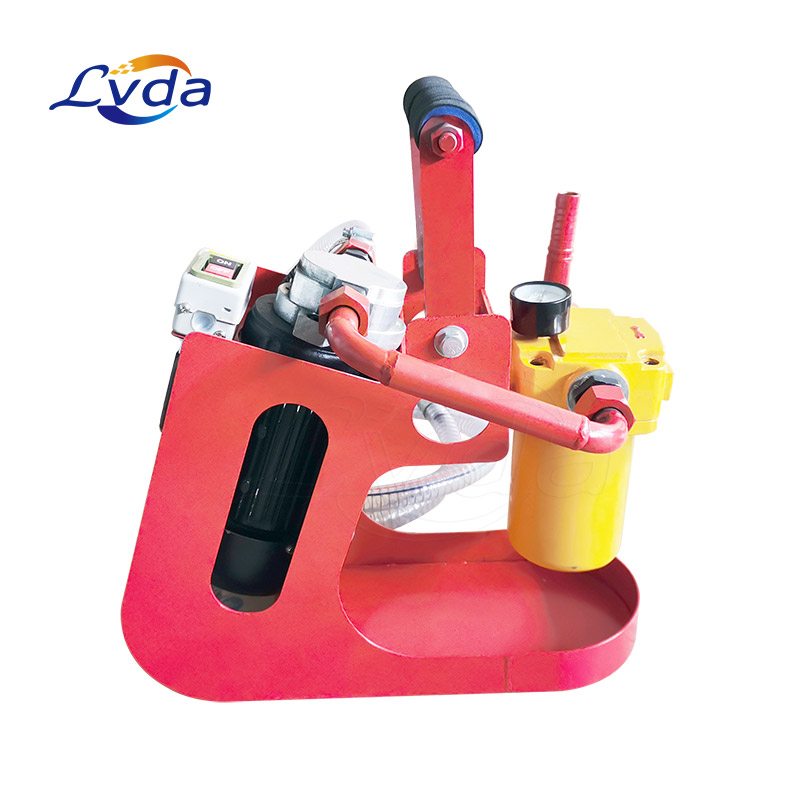

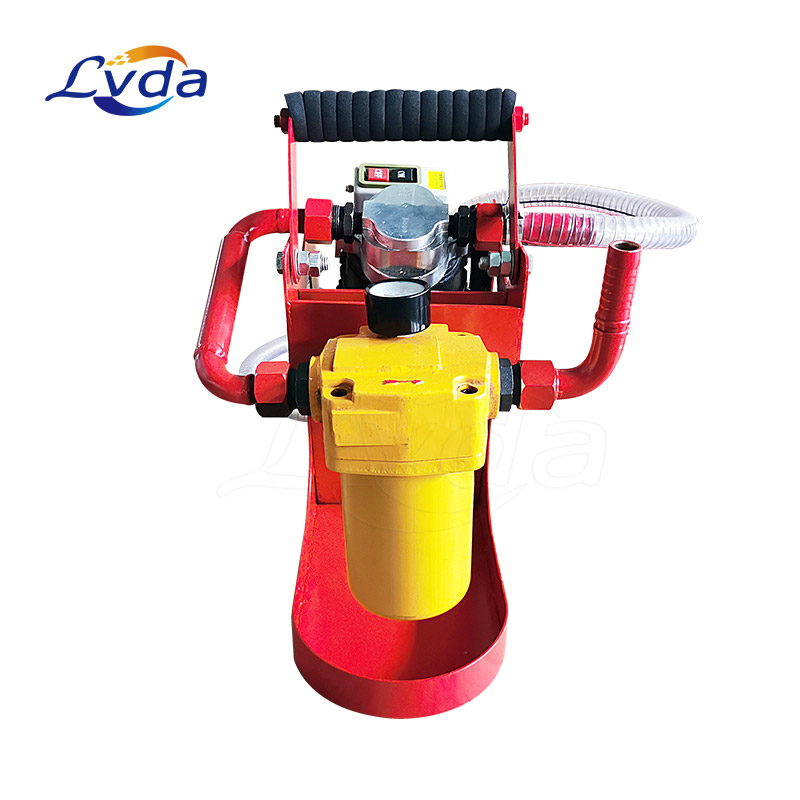

Portable plate pressure used oil purifier machine

We have developed a portable plate pressure used oil purifier machine which is used for fluid transfer, fluid circulated fltration so as to reduce contamination and impurity levels. They are the most compact, lightweight, easy-to-operate, and reliable filtration systems in the industry today.

We believe in prolonged time period and trustworthy relationship for transformer oil regeneration system, transformer oil filter machine, offline hydraulic oil fltration systems. Our enterprise spirit is, unity, innovation,rigorous, pioneering. Over the years of enterprise management and production operation, we have gradually formed the corporate culture atmosphere of "continuous innovation and pursuit" and the sustainable development of market and customer-oriented business management mode. Excellent corporate culture is an important symbol of building a strong enterprise and is an important part of the core competitiveness of the enterprise.

Portable plate pressure used oil purifier machine with a simple pump/motor/filter construction is convenient for end-users to cary and operate almost anywhere. Hand Held Filtration cart allows the hydraulic systems to continue operating without costly downtime. A water removal element can also be uilized on this oil fltration unit, which radically reduces the water contamination in the whole system.

And our mini oil filter machine is ideal for applications with minimal space, for fltering contaminated systems, flushing new or repaired systems, pre-filtering new oil, transferring oils, topping off reservoirs and dispensing new oils.

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

The machine is generally high-grade filtration, which can be made into multi-stage filtration according to customer needs.

Filters imported from abroad, the United States, Germany and Japan can be used, and of course you can also choose chinese filters.

Small size, light and flexible, easy to carry and operate.

The filter element is easy to clean. It can be cleaned by turning the T-shaped gong bolt above the filter.

Self priming positive displacement gear pumps direct coupled to electric motors

On-off switch - 220v, 1-phase, 50hz (other options available)

Inlet suction strainer for pump protection

Differential pressure gauges for positive indication when filter elements are plugged and need to be changed

Upstream/downstream oil sample ports

All systems come standard with 10 meters of clear pvc steel-wire reinforced oil hoses

Configurations include 1 or 2 or 3 flters as required

Lightweight and compact structure

It is fabricated to cary and position near difficult to access locations.

Applications

Hydraulic oil

Turbine oil

Lubrication oil

Gear oil

Transformer oil

Phosphate Ester (Fyrquel EHC Fluid)

PAO Fluid

It is also widely used in oil pumping of various industrial oils filtration such as cutting fluids, oil injection and etc..
