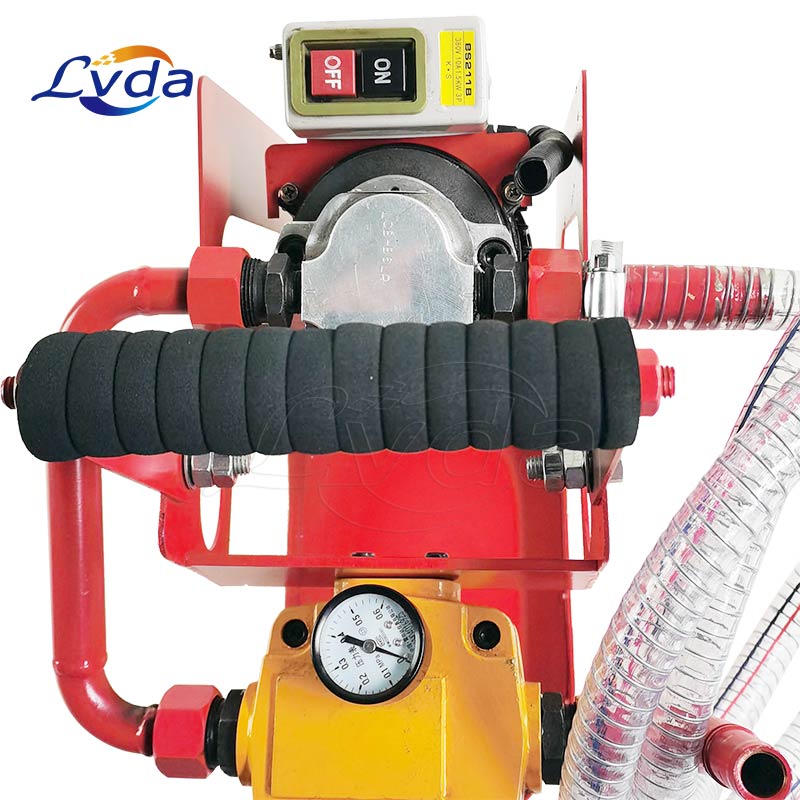

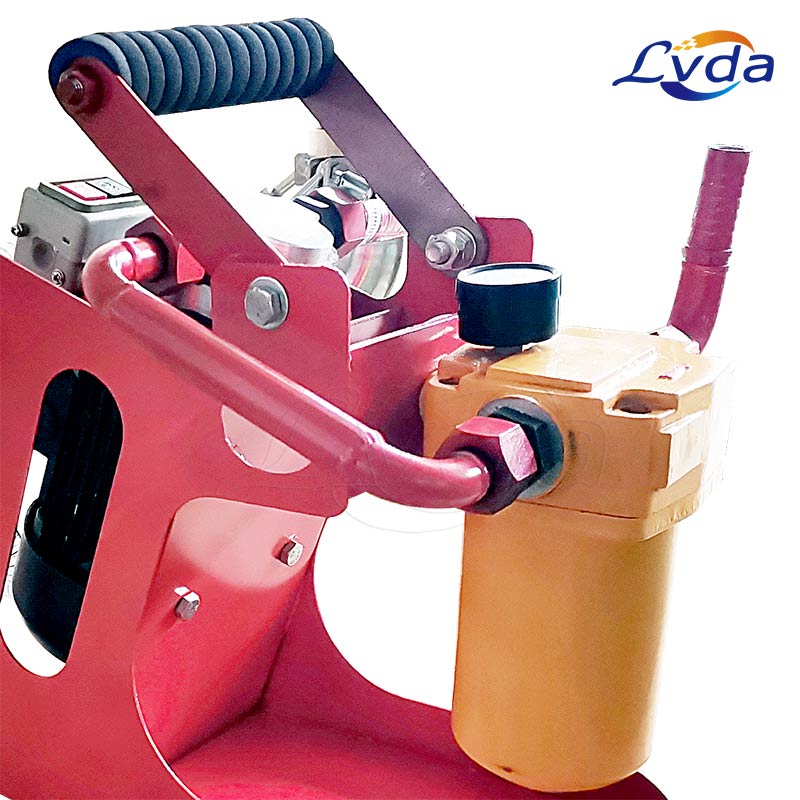

Portable oil filter machine oil transfer pump set

Portable oil filter machine oil transfer pump set is a hand-held oil filter machine used for oil transferring and oil filtering-out impurities, etc..

Composition of Oil Transfer Pump Set:

*Oil Inlet Valve;

*Strainer;

*Oil Pump with Motor;

*Fine Filter;

*Pressure Gauge;

*Sampling Valve;

*Frame and Bottom Bracket;

*Oil Outlet Valve

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

Model OFC filter carts adopt high-precision filter elements, which has strong dirt holding capacity.

Hand-held portable design, light weight makes it easy to be carried in one hand.

Low noise, long-service-life oil pump, stable operation performance.

High precision filter element can effectively remove solid particle impurities in the oil.

It is also applied to transformer oil filtration and transportation before filling into the transformer oil tanks.

Applications

Portable Oil Filter Machine Oil Transfer Pump Set is a hand-held oil filtration unit applied to filter out particles and impurities from oil before filling into a lubricant oil system, as well as oil transferring.

It is mainly used in power plants, substations, electrical equipment manufacturers, transformer factories, industrial and mining enterprises to filtrate transformer oil, turbine oil, capacitor oil, switch oil, coolant oil, stator oil, engine oil and other oil, by removing impurities and particles during the oil treatment, at the same time it can carry out oil transferring and filling.
