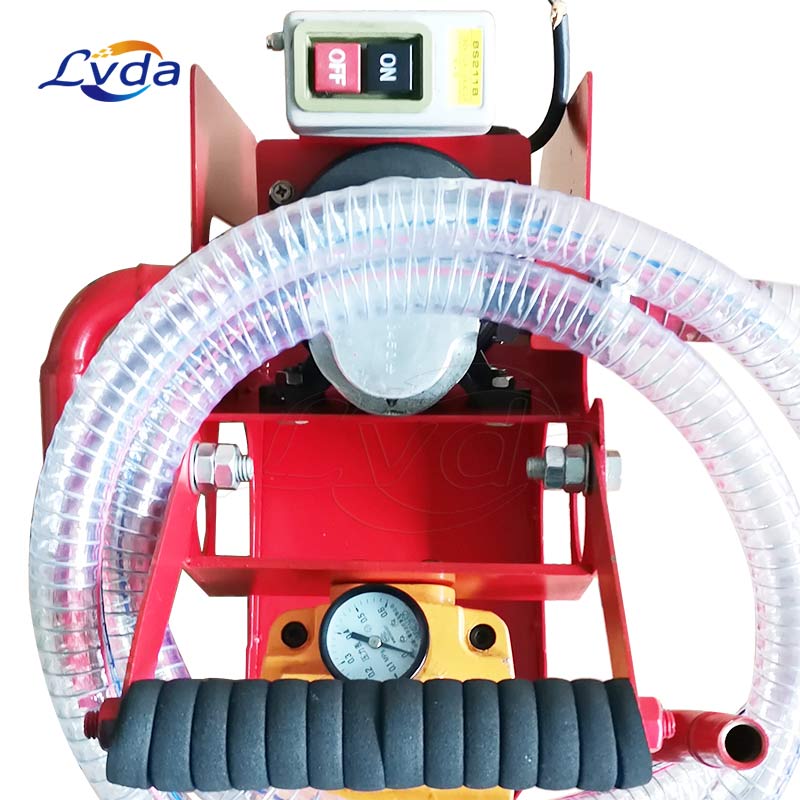

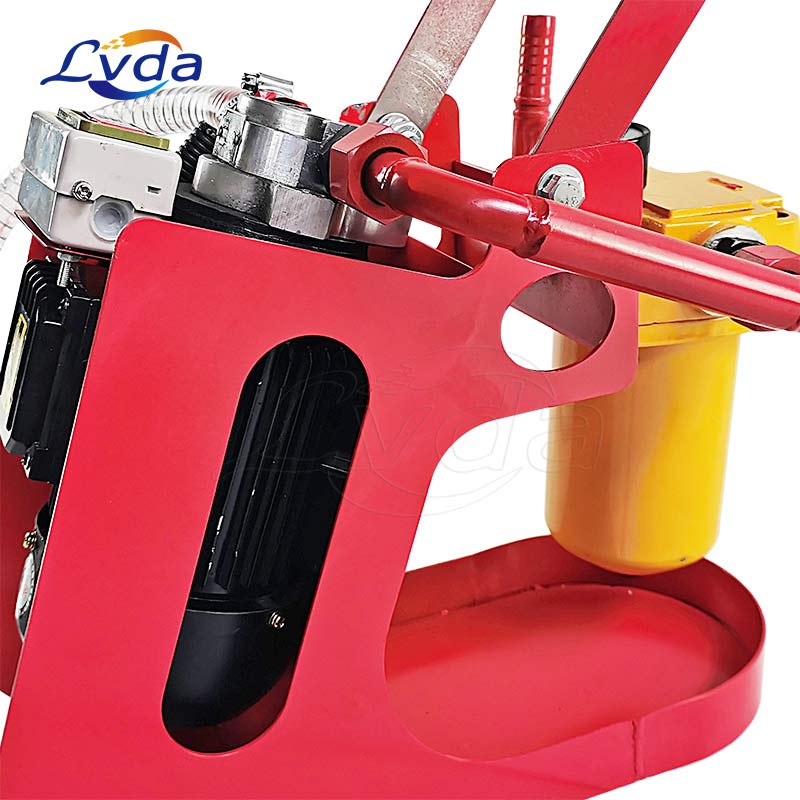

Handheld transformer oil treatment equipment
It’s common to find contaminants ranging from water to particulate in new shipments of oil. On average seven grams of particulate contamination is found in every 100 gallons of new barreled oil. In most cases the oil in your system is at a higher cleanliness level than the oil you receive from your supplier. Our handheld transformer oil treatment equipment is ideal for filtering particulate and water contaminants found in existing hydraulic and lube oil systems. By not removing these contaminants, critical components are often damaged leading to expensive repairs or replacements and down-time.
Parameters
Model | AOP-6-*/** | AOP-10-*/** | AOP-16-*/** |
Rated flow(L/min) | 6 | 10 | 16 |
Rated pressure(Mpa) | 0.34 | ||
Original pressure loss(Mpa) | ≤0.02 | ||
Coarse filtration accuracy(μm) | 40 meshes | ||
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 | ||
Alarm differential pressure(MPa) | 0.2MPa | ||
Use temperature(°C) | 6~80 | ||
Recommended viscosity for use(cSt) | 10~160 | ||
Power supply(V) | AC380V three-phase, AC220V three-phase | ||
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980 | 650x680x980 | 720x680x1020 |
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
5 & 11 GPM Flow Capacities
Double Filters
Longer Filter Life
2 Stage Filtration
Clean, Easy Filter Change-Out
Water Absorbing Elements
Industrial Quality Gear Pump
Heavy Duty Cart with Drip Pan
Pump Safety Relief Valve
“Y” Strainer on Pump Inlet
12’ Long Hose Assemblies
Easy to Read Pressure Gauges
Applications
Our Handheld transformer oil treatment equipment mainly deals with unqualified transformer oil, insulating oil, turbine oil, lubricating oil etc..
· Professional manufacturer with many years' experience
· Good quality with competitive price
· OEM & ODM are welcome
· Various payment items are acceptable
· Good service by experienced manager
