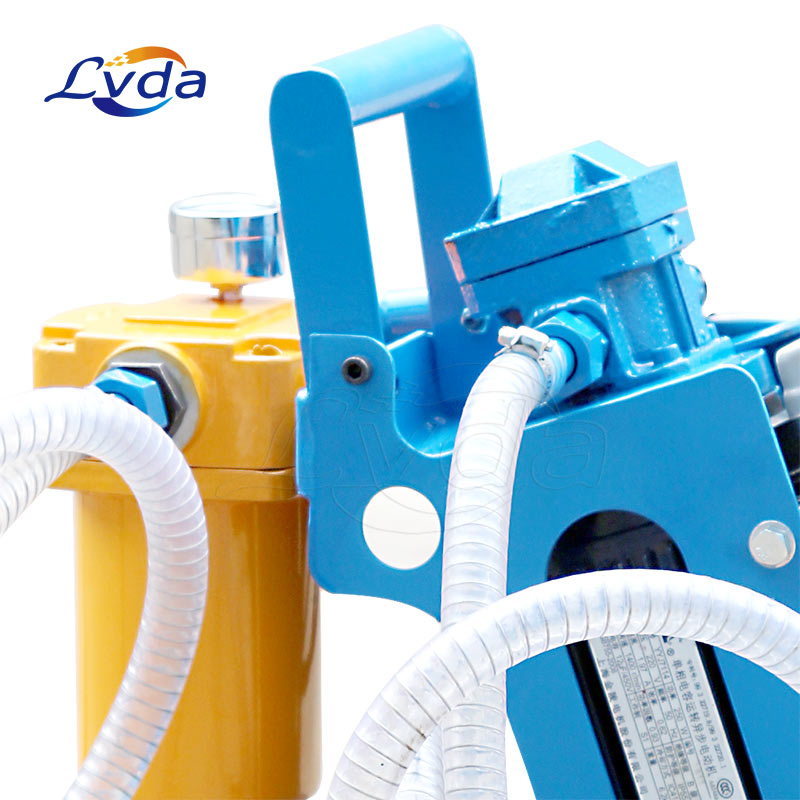

Handheld transformer oil process machine
When filtering your transformer oil with a handheld transformer oil process machine, you’re processing your oil at a steady slow rate allowing for optimal filtration. By using a combination of elements, both particulate, and water contaminants can efficiently be removed from petroleum-based oils.
Parameters
Model | AOP-6-*/** | AOP-10-*/** | AOP-16-*/** |
Rated flow(L/min) | 6 | 10 | 16 |
Rated pressure(Mpa) | 0.34 | ||
Original pressure loss(Mpa) | ≤0.02 | ||
Coarse filtration accuracy(μm) | 40 meshes | ||
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 | ||
Alarm differential pressure(MPa) | 0.2MPa | ||
Use temperature(°C) | 6~80 | ||
Recommended viscosity for use(cSt) | 10~160 | ||
Power supply(V) | AC380V three-phase, AC220V three-phase | ||
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980 | 650x680x980 | 720x680x1020 |
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
5 & 11 GPM Flow Capacities
2 Filters:
Longer Filter Life
2 Stage Filtration
Clean, Easy Filter Change-Out
Filtration Down to 1 Micron (Absolute)
Water Absorbing Elements
Industrial Quality Gear Pump
Heavy Duty Panel with Drip Pan
Pump Safety Relief Valve

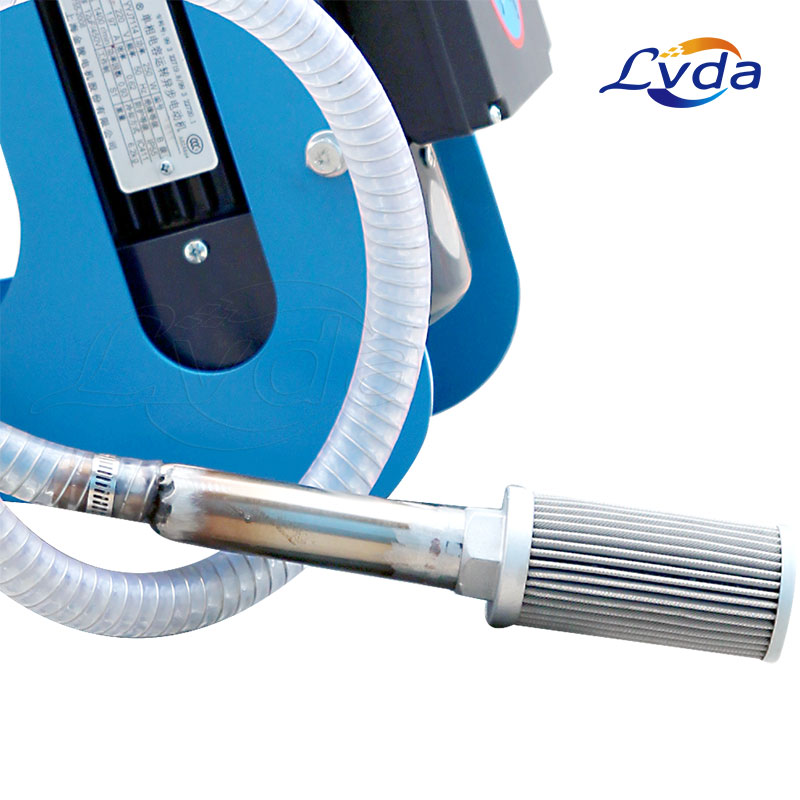

“Y” Strainer on Pump Inlet
Easy to Read Pressure Gauges
Independent Kidney-Loop System
Filter changed out without manufacturing down time
Applications
Transformer oil
Turbine Oils
Lubrication Fluids
Hydraulic Fluids
Coolants / Cooling Fluids
Fuels
Vacuum Pump Fluids
Machine Tool Fluids
Paper Machine Fluids
Water / Glycol Fluids
Phosphate Ester Fluids
Dielectric / Transformer Fluids
