Transformer Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

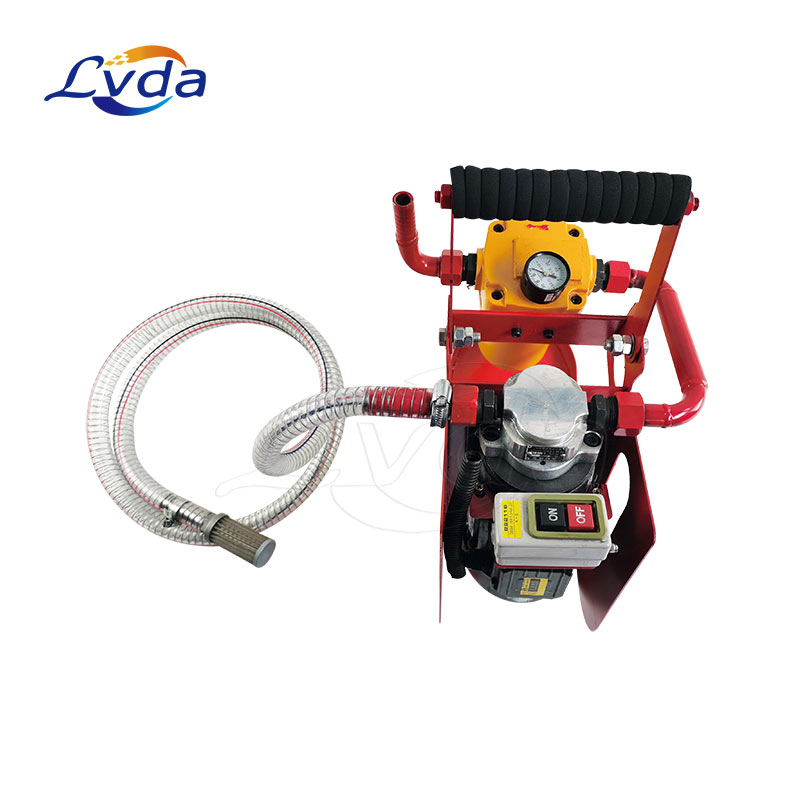

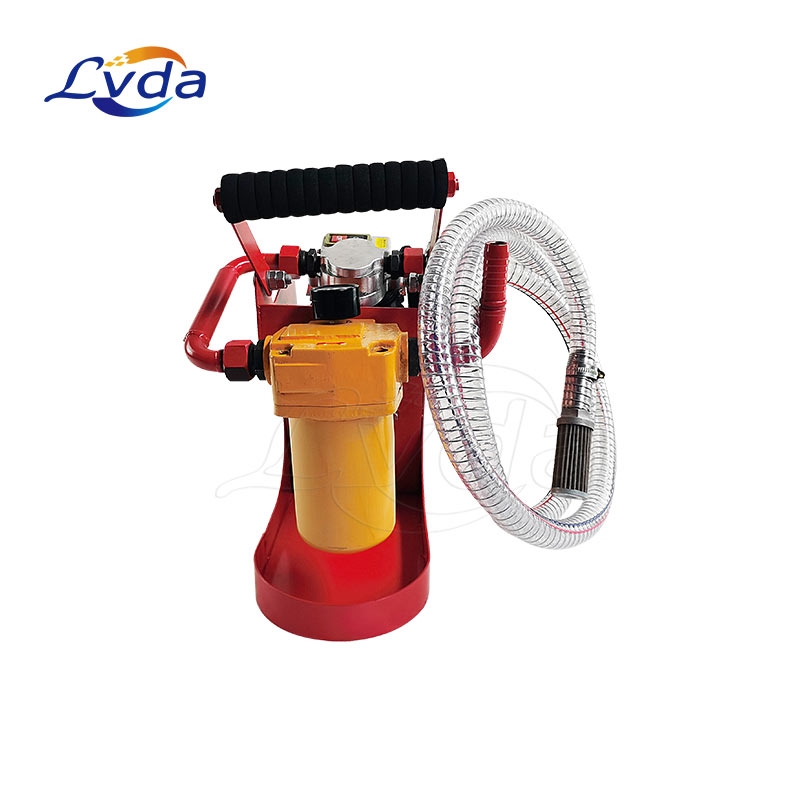

Hand held filtration system for dielectric / transformer fluids

Our Hand held filtration system for dielectric / transformer fluids was developed due to our customers need for a highly portable filtration system that can be used in close quarter locations.

Our Hand held filtration system for dielectric / transformer fluids have all the same features as our portable filter carts but are much more portable.

They also uses the same High-Capacity Spin-On Filters Elements available in Particulate Removal Increments & water removal option.

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

-Flow ranges between 0.5 & 3 GPM

-Particulate & Water Removal Filter Options

-Differential Change Filter Indicator

-Oil Sample Valves-Upstream & Downstream

-Pump Inlet & Outlet Pressure Gauge

-Includes 12’ Extension Cord

-Includes two 6 foot sections of heavy-duty Petroleum Transfer Hose

-Includes Inlet Strainer to protect pump

-110 to 220 Volt, 50 or 60 Hz Power Supply

-TEFC Motor to conform to NEMA 4 Electrical

Applications

Turbine Oils

Lubrication Fluids

Hydraulic Fluids

Coolants / Cooling Fluids

Fuels

Vacuum Pump Fluids

Machine Tool Fluids

Paper Machine Fluids

Water / Glycol Fluids

Phosphate Ester Fluids

Dielectric / Transformer Fluids
