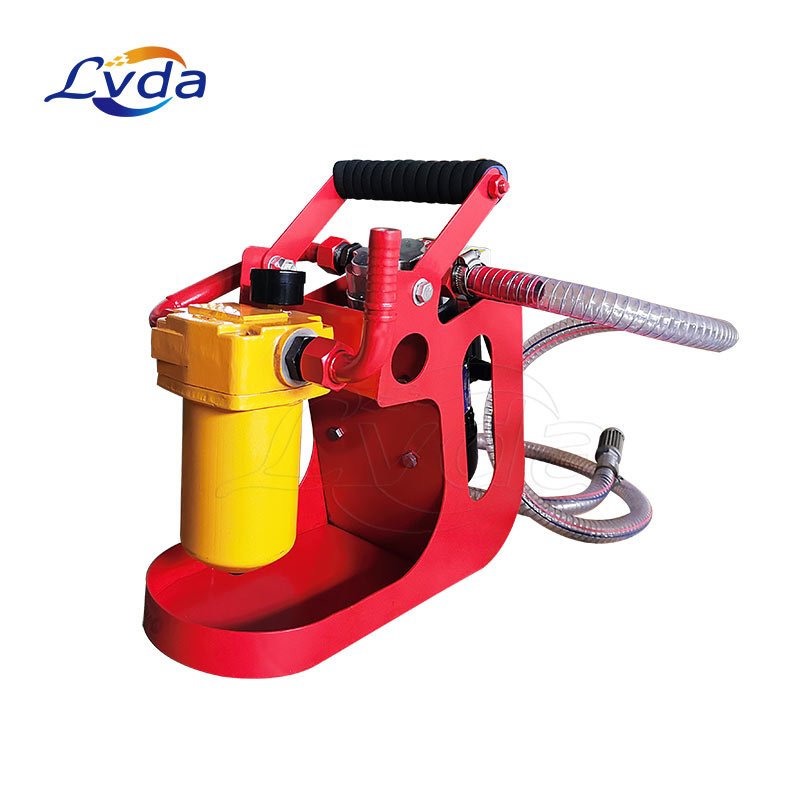

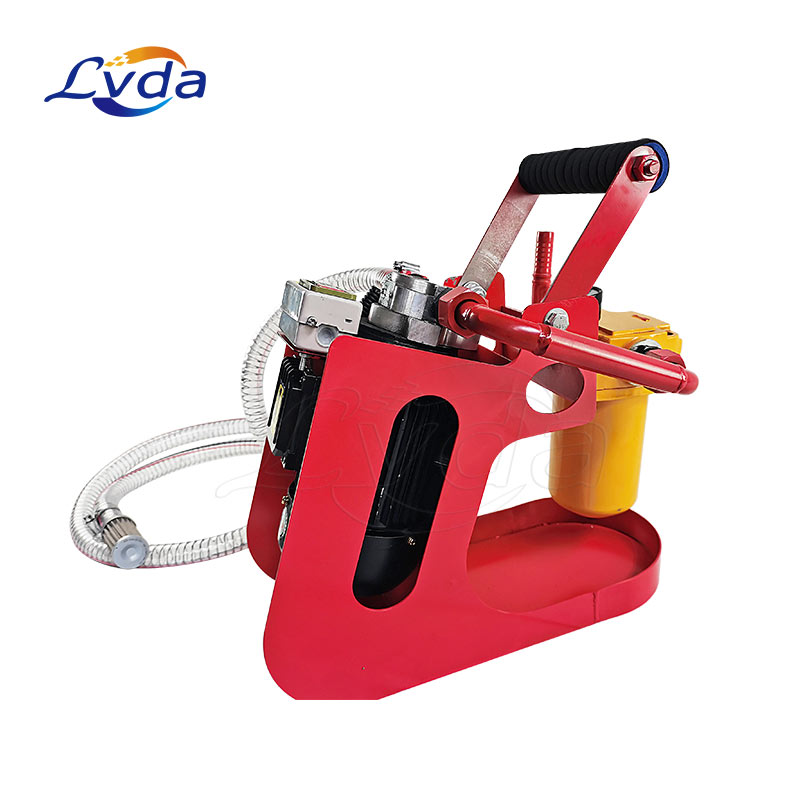

High-viscosity hand-held system
In the past choices were very limited when it came to filtering lubricants with viscosities greater than 500 SUS at 100oF. The problem with attempting to filter a high viscosity oil with a lower viscosity system is that the pump and filters are not designed to work with higher pressures required to push high viscosity fluids through the system. As a result these low viscosity units operate primarily in “bypass” mode where little if any of the high-viscosity oil gets filtered.
That is where our High-Viscosity Hand-Held System comes in. This system is specifically designed for high-viscosity fluids associated mainly with gear oils and can filter oils up to 7,500 SUS at 100oF (1600 cSt at 40oC).
To ensure that the equipment receives the cleanest oil possible, for increased equipment life, our high-viscosity hand-held system provides two-stage filtration. The oil flows through the primary filter first, where coarse particulate is removed. Then the fluid flows through the secondary filter where fine particulate and water are removed.
A variety of filter media elements are available to meet recommended manufacturer cleanliness levels.
Parameters
Model | AOP-6-*/** | AOP-10-*/** | AOP-16-*/** |
Rated flow(L/min) | 6 | 10 | 16 |
Rated pressure(Mpa) | 0.34 | ||
Original pressure loss(Mpa) | ≤0.02 | ||
Coarse filtration accuracy(μm) | 40 meshes | ||
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 | ||
Alarm differential pressure(MPa) | 0.2MPa | ||
Use temperature(°C) | 6~80 | ||
Recommended viscosity for use(cSt) | 10~160 | ||
Power supply(V) | AC380V three-phase, AC220V three-phase | ||
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980 | 650x680x980 | 720x680x1020 |
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
Differential Pressure Gauges – Indicates when elements need to be changed
Oil Sampling Ports – Two sampling ports available to monitor condition of oil
Dual Filters – Two-stage filtration for long element life and pump protection
Compact – Lightweight design provides flexibility to service equipment located in hard to reach areas
Hoses – Heavy-duty hydraulic hose
Applications
-Purification of turbine oil and transformer oil
-Water removal and impurity filtration of oil in hydraulic lubrication system
-The hydraulic,lubrication system bypasses filtration at work
-Overall improvement of cleanliness of hydraulic lubrication system
-Regeneration and purification of various oils
-Hydraulic lubrication system refueling and maintenance
