Handheld portable filtrating system for hydraulic machine
Handheld portable filtrating system for hydraulic machine
Handheld portable filtrating system for hydraulic machine

Handheld portable filtrating system for hydraulic machine

Transformer Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

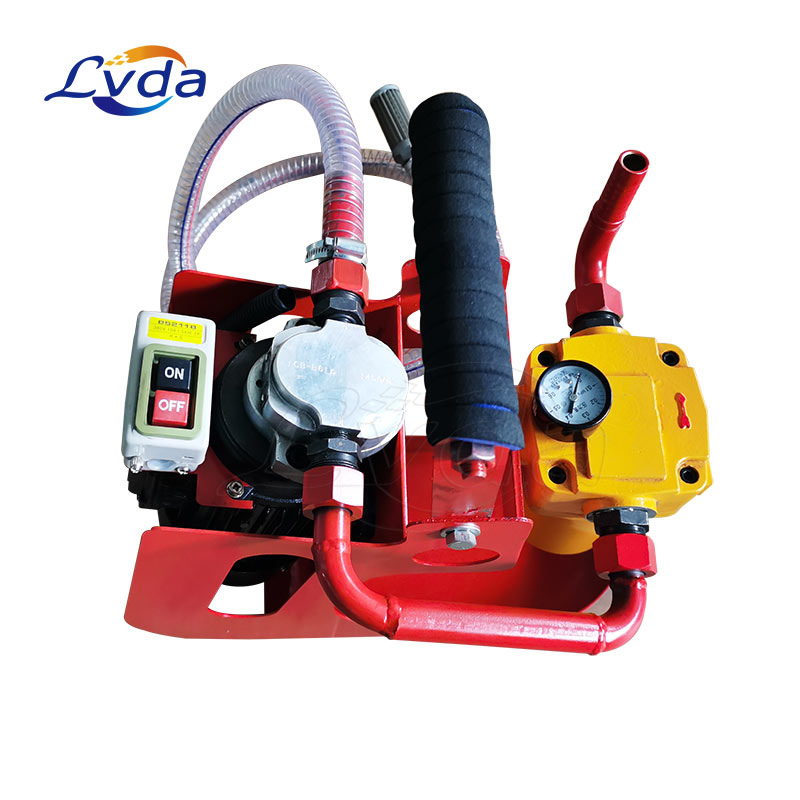

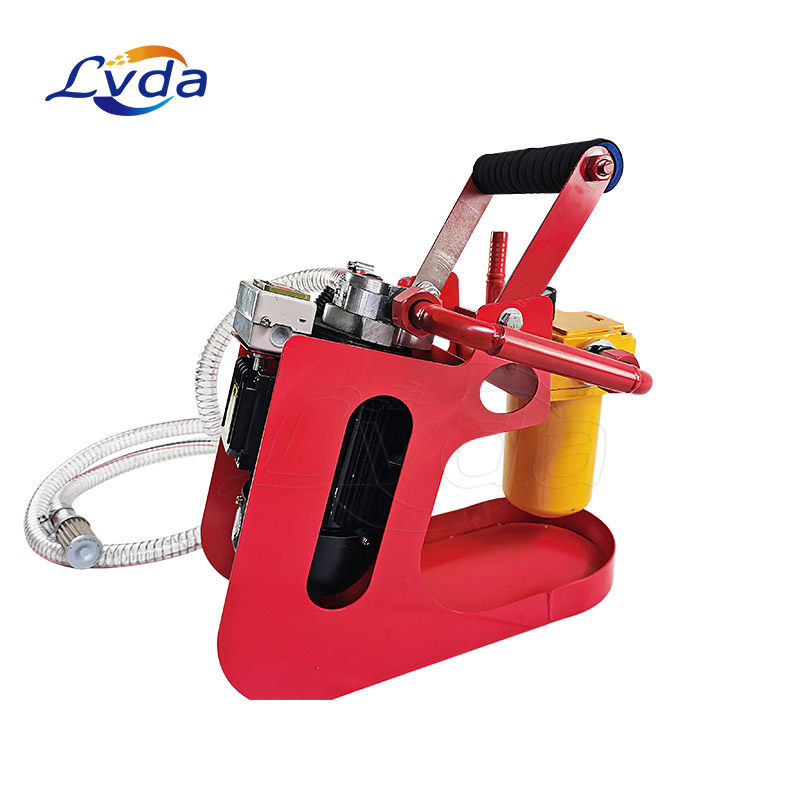

Handheld portable filtrating system for hydraulic machine

This handheld portable filtrating system for hydraulic machine gives the user a good filtration service. Its small size and light weight allow for carrying up and down stairs and access into tight or confined spaces. It also fits on the top of a drum for convenient transferring and filtering from drum to reservoir.

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

■High nominal flow rates of 15 /min / 4 US GPM respectively 110 l/min / 30 US GPM by using high-quality gear pumps and energyefficient, high-performance three phase motors suitable for continuous duty cycle

■Flexible use (mobile or stationary ffline filtration, filter elements available in different micro ratings)

■All Units are equipped with a 200 um pre filter

■Drip pan for residual oil

■Easy and safe handling

■Rugged construction

■Filter elements with 4Pro media provide high dirt holding capacity and filtration performance

■Made in China

Applications

Handheld portable filtrating system for hydraulic machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. It is especially for purifying the insulation oil in all kinds.
