Product Details

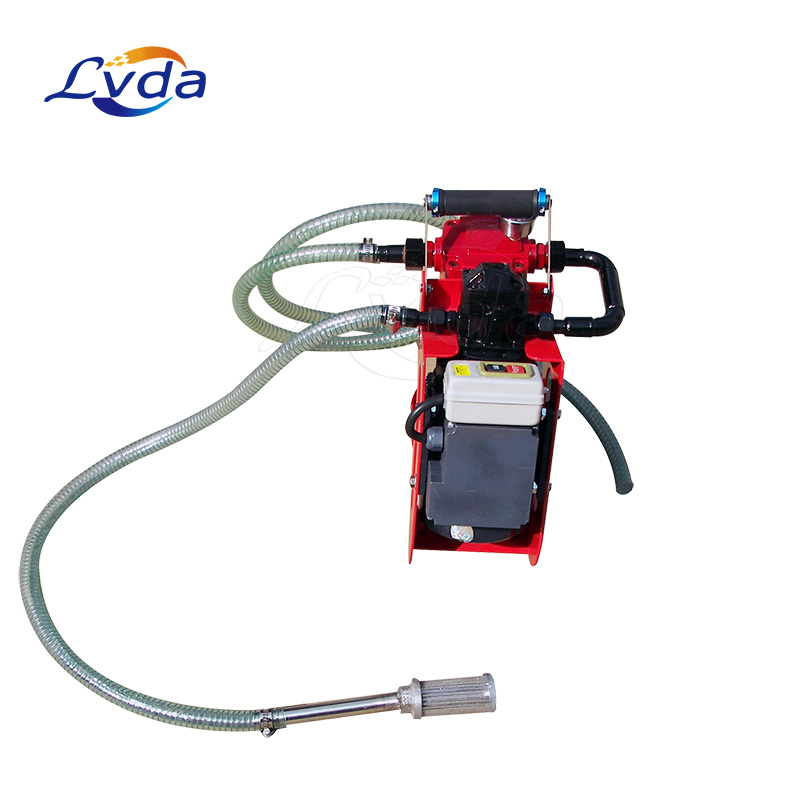

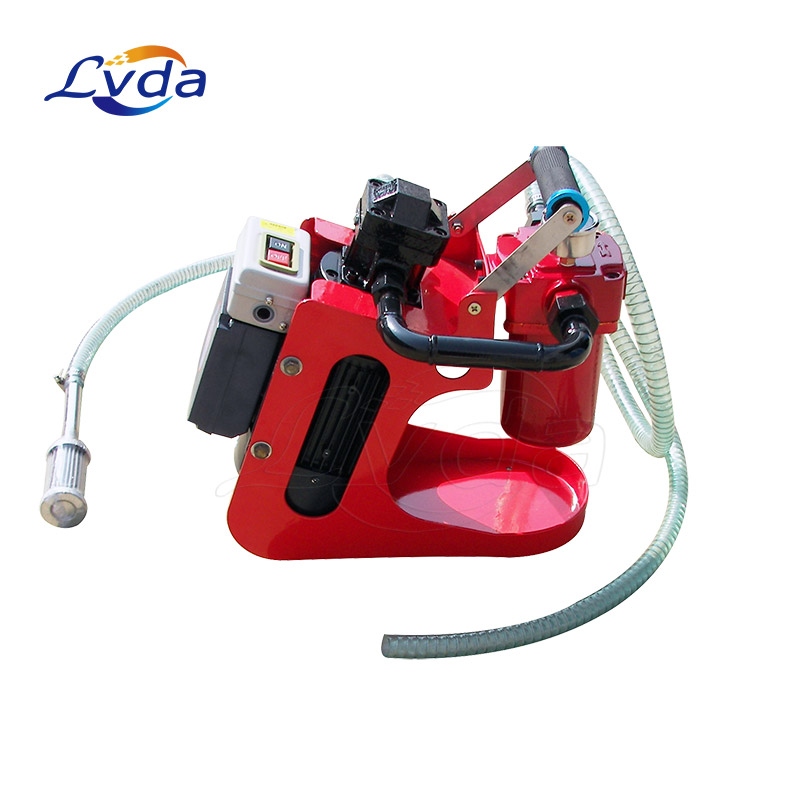

Mini mobile filtration system
Mini mobile filtration system is used for the transportation of insulating oil, lubricating oil, hydraulic oil, various mineral and vegetable oils, and other liquids and mechanical impurity filtration. Because the machine is made of micro components, it has compact structure, light and flexible, easy to carry and low price. Oil replenishment and impurity filtration are more economical and practical than using other large oil filtering equipment. Because there is no need to change the filter paper, it is more convenient and trouble-free to use, making the operator relaxed and happy. Therefore, the portable oil filter is widely used in workshops, maintenance, power plants, power stations, oil depots, factories and mines, aviation, chemical industry, laboratories, etc.
Applicable oil types: mechanical oil, hydraulic oil, lubricating oil, compressor oil, turbine oil, insulating oil, diesel oil, kerosene.
Mini mobile filtration system is also called portable oil filter. It consists of a special gear pump driven by a motor and a filter. The oil suction port is equipped with a coarse filter to protect the oil pump and prolong the service life of the main filter. Portable oil filter, small oil filter, oil pumping and refueling. The fine filter can choose different precision according to the different needs of users to meet the required requirements. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
●Compact structure, small size, light weight, easy to carry and operate.
●Internal use of filter element for filtration, repeated use, saving money and not polluting the site.
●Filter precision, product specifications can be freely selected according to needs.
Applications
●It is used for impurity filtration and oil transportation of fluids such as transformer oil, hydraulic oil, lubricating oil and turbine oil.
●Suitable for field portable operation and high-altitude operation. Portable oil filter, small oil filter, oil pump.
●Add oil and pump oil to the hydraulic lubrication system and filter the oil at the same time.
