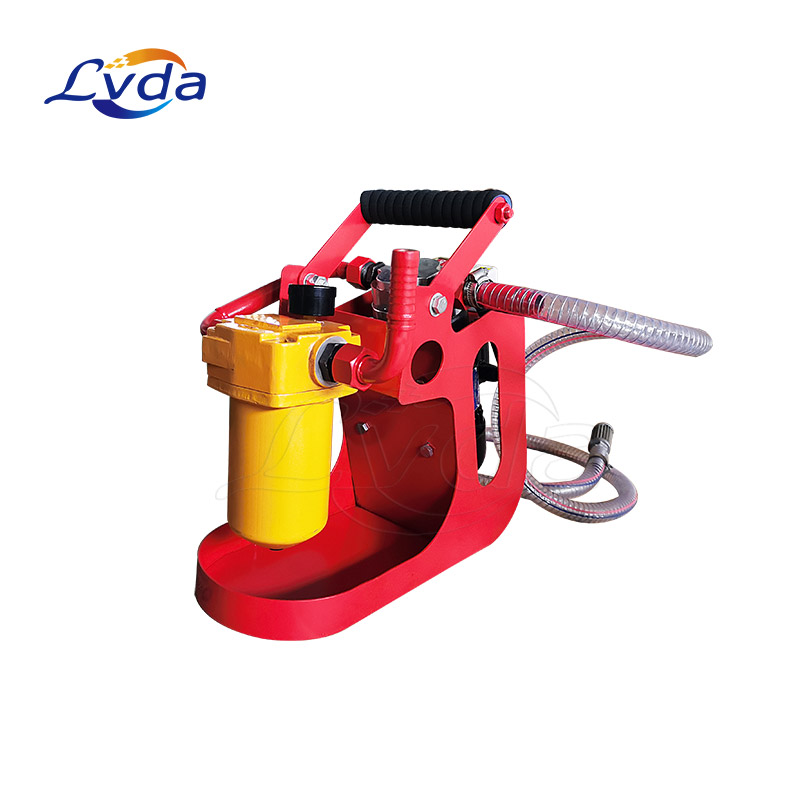

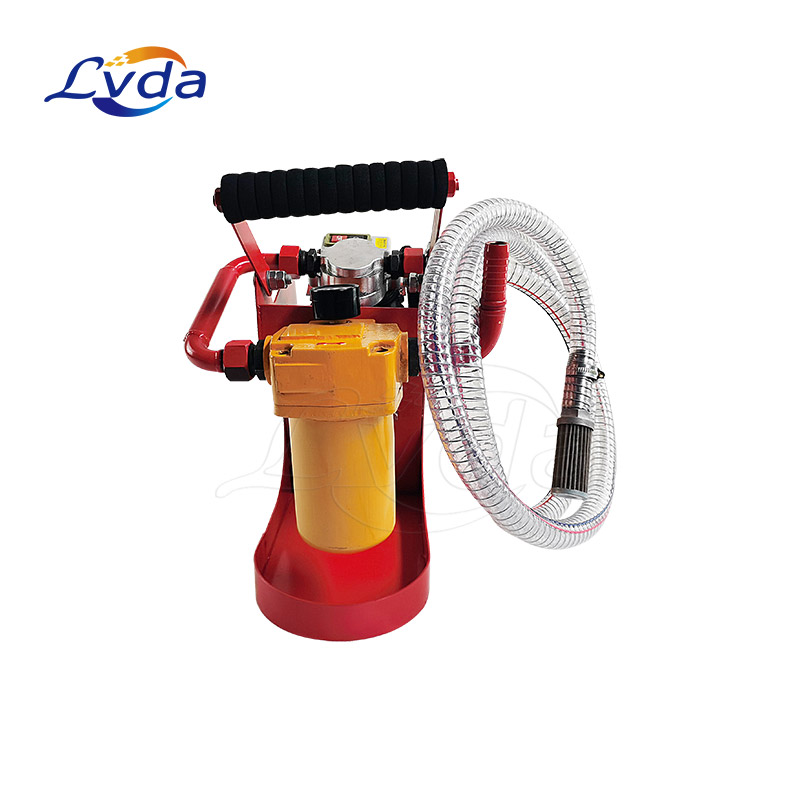

Small mobile fine oil purifier

The modernization of hydraulic technology has led to the hydraulic system parameters becoming increasingly high pressure, large flow and high purity. In order to ensure the harmony of the hydraulic system, the requirements for the cleanliness of the oil are getting higher and higher.

Our company's small mobile fine oil purifier can not only be used as a device for injecting new oil into the hydraulic system, but also as a device for regularly filtering pollutants in the system media. It can help you better deal with the pollution of the hydraulic system and prolong the hydraulic pressure. The service life of the components ensures the normal operation of the system.

Small mobile fine oil purifier  is a kind of filter equipment for processing all kinds of mechanical oil. The main part consists of filter element, oil pump, pressure gauge, etc.

Using the filter element as the medium, under the action of pressure, the oil passes through the filter element, and then passes to the purpose of removing impurities.


How to operate

(1) Place the small mobile fine oil purifier machine on a relatively flat ground or in a car box, carefully check whether the whole machine is loose, and pay special attention to the fact that the connection between the motor and the oil pump must be fastened and concentric.

(2) Connect the power supply correctly and start the oil pump to check whether the rotation direction is correct, otherwise, change the phase sequence of the power supply.

(3) After the power is turned on, check whether the state of the thermostat is normal, and set the required working temperature.

(4) Connect and tighten the oil inlet and outlet pipes, reminding the user that the oil outlet pipe and oil outlet must be fastened, otherwise as the pressure increases, the oil outlet pipe will be washed away, adding unnecessary trouble.

(5) After fixing the oil inlet and outlet pipes, start the motor button, and the oil pump starts to work normally. When the oil flows out of the oil outlet, the rotary heating switch starts the heater, and the oil after three-stage filtration is the purified oil. During the filtration process, please observe the pressure gauge. If the pressure reaches 0.4MPA, please clean and replace the filter element in time.

(6) When one barrel (box) of oil needs to be pumped out and another barrel (box) of oil needs to be pumped, it needs to act quickly to avoid the oil pump idling for a long time.


Repair and maintenance

(1) The small mobile fine oil purifier mainly adopts the mechanical filtration method, and gradually reduces the density of the filter screen to achieve the purpose of improving the filtration accuracy. It can be seen that during the working process of the equipment, the stage filtration is easy to be blocked by impurities. Oil is less than oil.

Treatment method: Remove the upper cover of the first-stage filter, take out the filter screen, and clean it with the same type of cleaning oil, and then the work can be restored.

(2) If the lift is too high during the refueling process, the temperature of the motor will rise rapidly and the noise of the oil pump will increase.

Treatment methods: 1. Work according to the specified lift; 2. Work intermittently.

(3) The noise of the oil pump increases abnormally:

Treatment methods: 1. Check whether the connecting shaft of the oil pump is concentric; 2. Whether the fastening screw is loose or dropped. The above phenomena can be ruled out after recovery.

(4) It is strictly forbidden to miss the direction, so as not to burn the motor.


Precautions

First, pay attention to the pressure gauge. When the impurities in the filter element are too high, the pressure of the pressure gauge will increase, and an alarm will sound at the same time. At this time, the filter element should be replaced or cleaned.

2. The cleaning of the filter element can be cleaned with the clean oil filtered out

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

This series of small mobile fine oil purifier has the advantages of compact structure, beautiful appearance, convenient maintenance and use, high precision and low noise. , 3μm, 5μm, 10μm, 20μm, 30μm, 40μm, you can choose freely, only need to replace the filter element with different filtration precision to achieve the filtering effect of different precision, there are other series of small mobile fine filter oil filter not only filter out oil The dirt in the oil has no effect on the technical indicators of the oil.

Applications

The small mobile fine oil purifier machine is mainly used to filter solid impurities such as transformer oil, turbine oil, lubricating oil, hydraulic oil, engine oil, diesel oil, peanut oil, kerosene, etc. More than three levels of filtering can be configured according to customer requirements, which are light and flexible, and easy to operate. The machine can also be used for long-distance, high-lift refueling and oil filling.
