Transformer Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

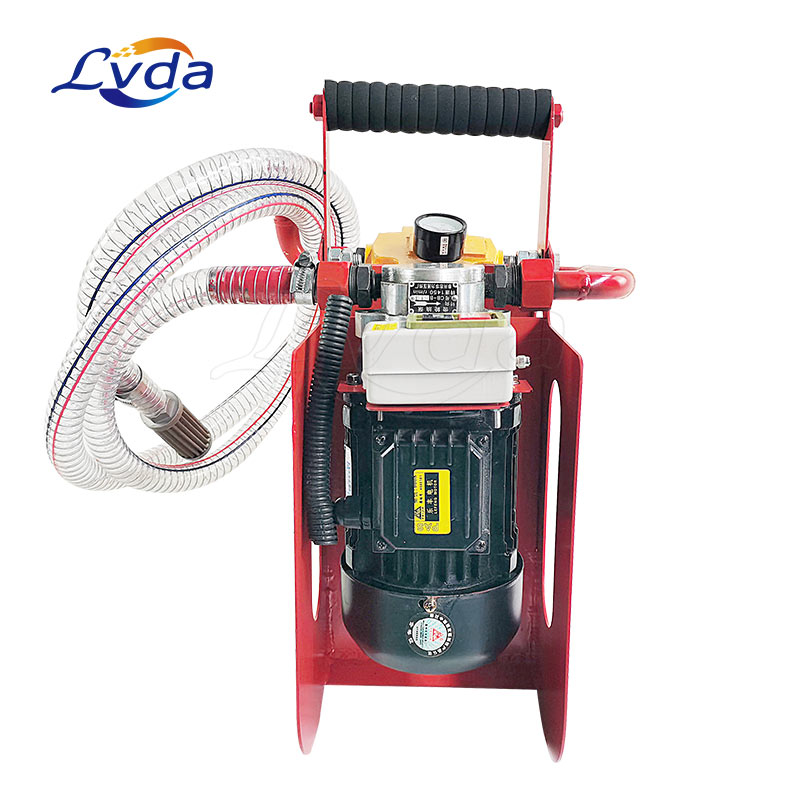

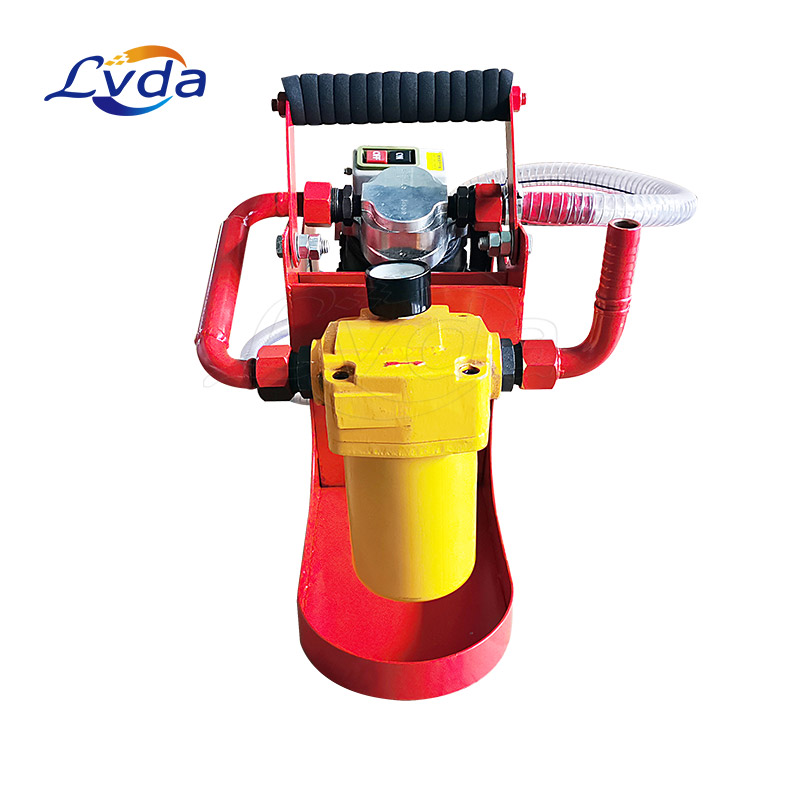

Compact vacuum oil purifier

Our 1 and 3 GPM compact vacuum oil purifier removes water, solvent, dissolved gasses and particulate from oil. This system is small and portable, has plenty of heat and vacuum to purify small transformer, insulating, lubricated, hydraulic and gear oil reservoirs and tanks. This purifier is excellent for small batch filtration and purification, such as small tanks, switch gears, transformers, drums and totes.

This compact vacuum oil purifier models are available for transformer and insulating oil applications, such as small oil filled transformers, load tap changers, medical devices and electrical equipment that requires clean dry insulating oil.

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

Small and light for easy transport

Compact size allows filtration in tight, confined spaces

Fits on drum top for convenient transfer and filtering from drum to reservoir

Rugged and durable frame for long service life

Cost effective filtration

The compact vacuum oil purifier is easy to use and easy to move around. Just move it into position, attach the hoses and power and within minutes it will be cleaning your oil.

Applications

Transferring and filtering new oil

Offline filtration

Water removal

Cleaning stored oil

System draining

Line flushing

Hose cleaning

Kidney loop filtration

Repairs and equipment rebuild flushing

Flushing during equipment commissioning
