Hand-held small oil purifier
Hand-held small oil purifier
Hand-held small oil purifier

Hand-held small oil purifier

Transformer Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

Hand-held small oil purifier


Main body material: high carbon steel

Working principle: Precision filtration, filter element intercepts impurities

Applicable oil products: Transformer oil, lubricating oil, hydraulic oil, turbine oil and other oil products.


Hand-held small oil purifier is also known as portable oil purifier.

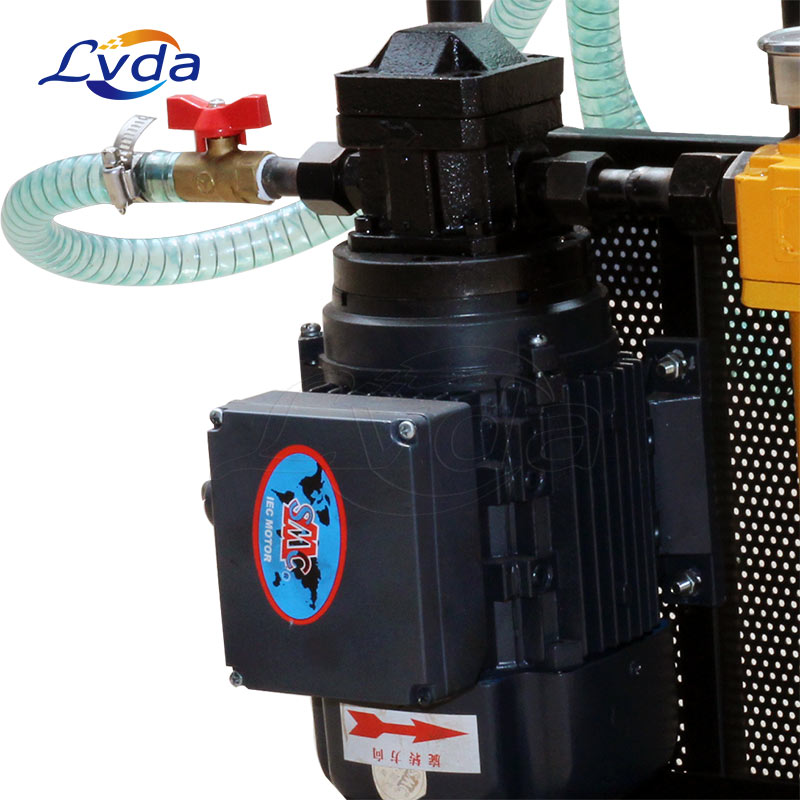

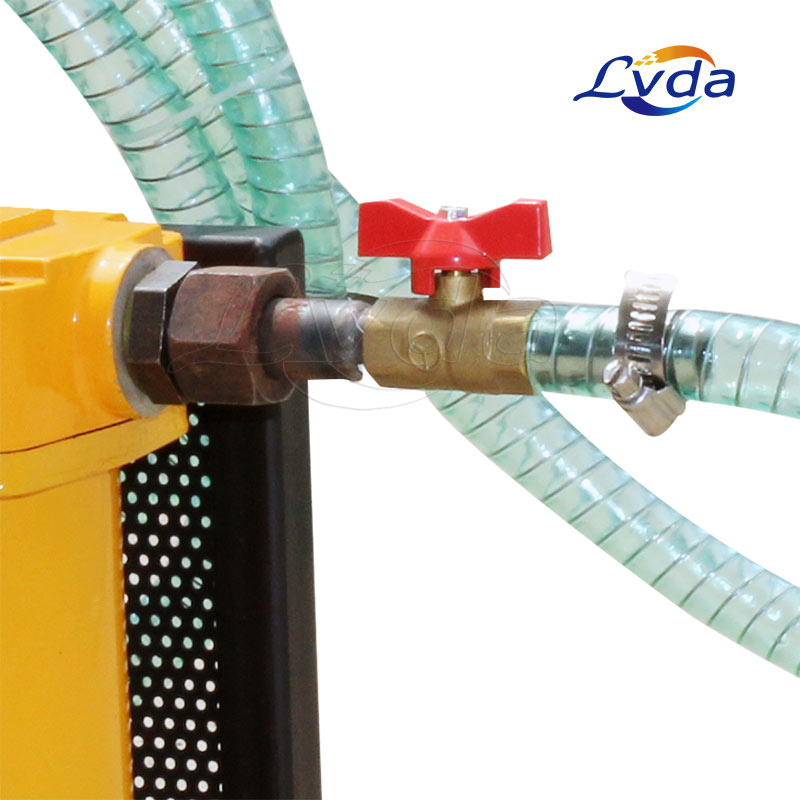

It consists of a gear pump driven by a motor and a filter. The oil suction port is equipped with a coarse filter to protect the oil pump and prolong the service life of the main filter.

The fine filter can choose different precision according to the different needs of users to meet the required requirements. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.


Parameters

                       Model              AOP-6-*/**
             AOP-10-*/**
            AOP-16-*/**

                   Rated flow

                      L/min

                   6
                   10                  16

               Rated pressure

                       Mpa

                                                                                         0.34
          Original pressure loss

                       Mpa

                                                                                         ≤0.02

       Coarse filtration accuracy

                       μm

                                                                                         40 meshes

       Fine filtration accuracy

                       μm

                                                                                  3、 5、 10、 20、 40

     Alarm differential pressure

                     MPa

                                                                                         0.2MPa

            Use temperature

                       °C

                                                                                         6~80

Recommended viscosity for use

                      cSt

                                                                                         10~160

               Power supply

                        V

                                                              AC380V three-phase, AC220V three-phase

               Motor Power

                       kw

                   0.18                    0.25                 0.35

                   Weight

                      kw

                    13                     16                  18

               Dimensions

                     mm

           650x680x980
            650x680x980
          720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.


Features

● Compact structure, small size, light weight, easy to carry and operate.

● The interior is filtered by filter element, which can be used repeatedly to save money and not pollute the site.

● Filtration precision, product specifications can be freely selected according to needs.

● According to need, it can be made into explosion-proof type.


Applications

● It is used for impurity filtration and oil transportation of fluids such as transformer oil, hydraulic oil, lubricating oil, and turbine oil.

● Suitable for field portable operation and high-altitude operation.

● Add oil and pump oil to the hydraulic lubrication system and filter the oil at the same time.
