Transformer Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

Small flow oil purifier

Small flow oil purifier is a technological product with low noise and strong self-priming ability. It is widely used in liquid measurement and control in the production process of machinery, electric power, petroleum, chemical industry, metallurgy, environmental protection, shipbuilding, food, catering and other industries.


17 liter small flow oil purifier operation method

1. Place the machine on a relatively flat ground or in a car box, carefully check whether the whole machine is loose, and pay special attention to the fact that the connection between the motor and the oil pump must be fastened and concentric.

2. Connect the power supply correctly and start the oil pump to check whether the rotation direction is correct, otherwise, change the phase sequence of the power supply.

3. Connect the oil inlet and outlet pipes and tighten them. Remind the user that the oil outlet pipe and oil outlet must be fastened. Otherwise, as the pressure increases, the oil outlet pipe will be washed away, adding unnecessary trouble.

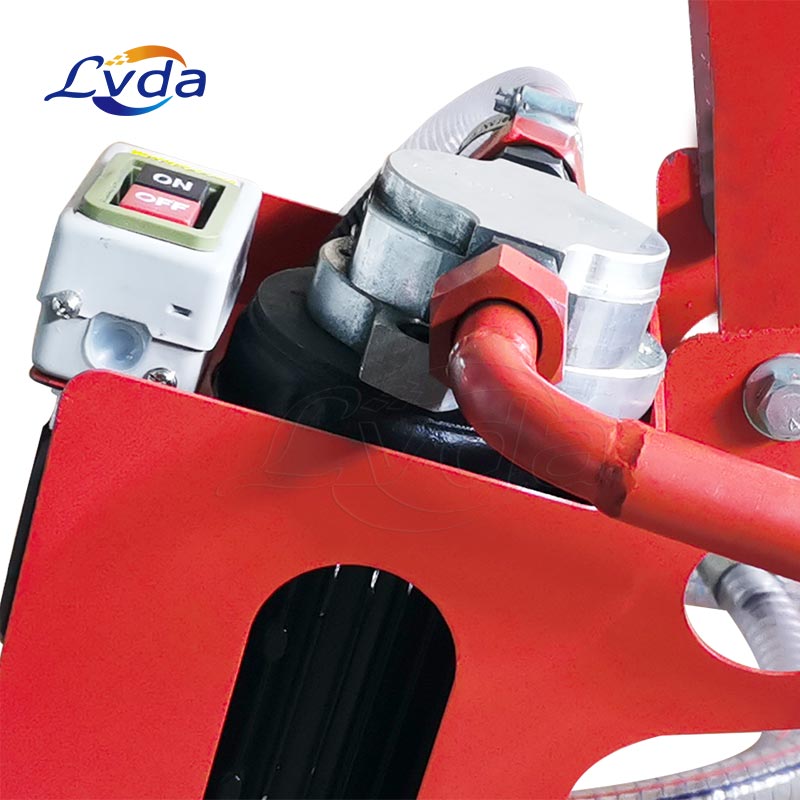

4. After fixing the oil inlet and outlet pipes, start the motor button, the oil pump starts to work normally, and the oil filtered out through the third stage is the purified oil.

5. When one barrel (box) of oil needs to be pumped and another barrel (box) of oil needs to be pumped, it needs to act quickly to prevent the oil pump from idling for a long time.


Parameters

                       Model              AOP-6-*/**
             AOP-10-*/**
            AOP-16-*/**

                   Rated flow

                      L/min

                   6
                   10                  16

               Rated pressure

                       Mpa

                                                                                         0.34
          Original pressure loss

                       Mpa

                                                                                         ≤0.02

       Coarse filtration accuracy

                       μm

                                                                                         40 meshes

       Fine filtration accuracy

                       μm

                                                                                  3、 5、 10、 20、 40

     Alarm differential pressure

                     MPa

                                                                                         0.2MPa

            Use temperature

                       °C

                                                                                         6~80

Recommended viscosity for use

                      cSt

                                                                                         10~160

               Power supply

                        V

                                                              AC380V three-phase, AC220V three-phase

               Motor Power

                       kw

                   0.18                    0.25                 0.35

                   Weight

                      kw

                    13                     16                  18

               Dimensions

                     mm

           650x680x980
            650x680x980
          720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.


Product features

This oil filter is an ultra-portable oil and oil filter developed by our company.

The machine is easy to carry and can be used to refill various hydraulic lubricating equipment anytime and anywhere in the field, and can purify the oil.

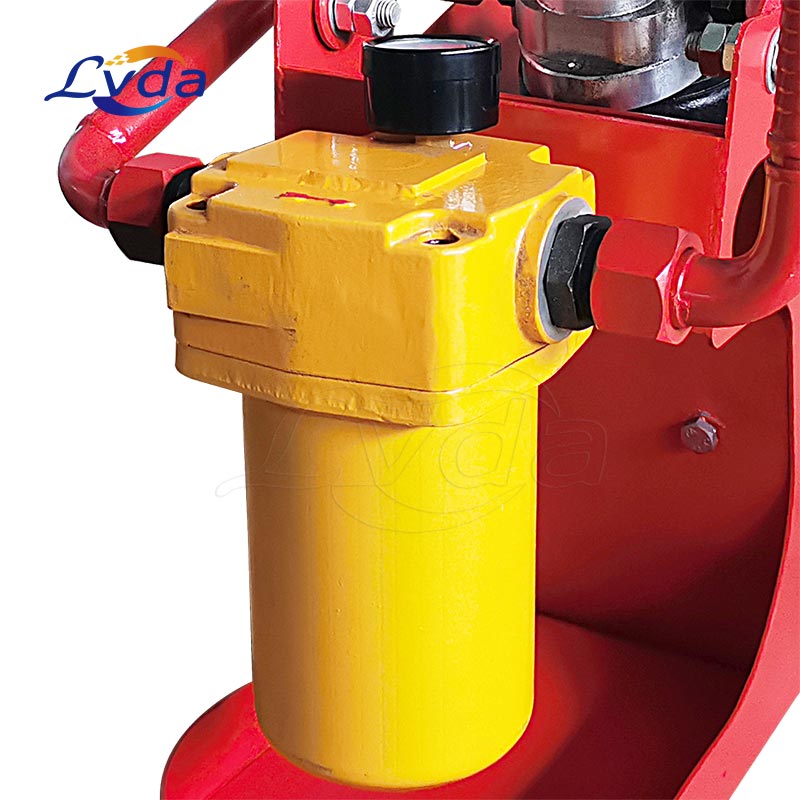

The suction port coarse filter protects the oil pump and prolongs the life of the main filter.

The fine filter can choose different precision according to the different needs of users to achieve the required results.


Product applications

This small flow oil purifier is used in power plants, power stations, power generators, electrical manufacturing plants, industrial and mining enterprises, it is an ideal equipment to filter moisture and impurity particles in oils such as transformer oil, turbine oil, switch oil, refrigeration oil, stator oil, engine oil, diesel oil, etc. .
