Product Details
High efficiency vacuum dehydration machine oil purifier remove impurity and water

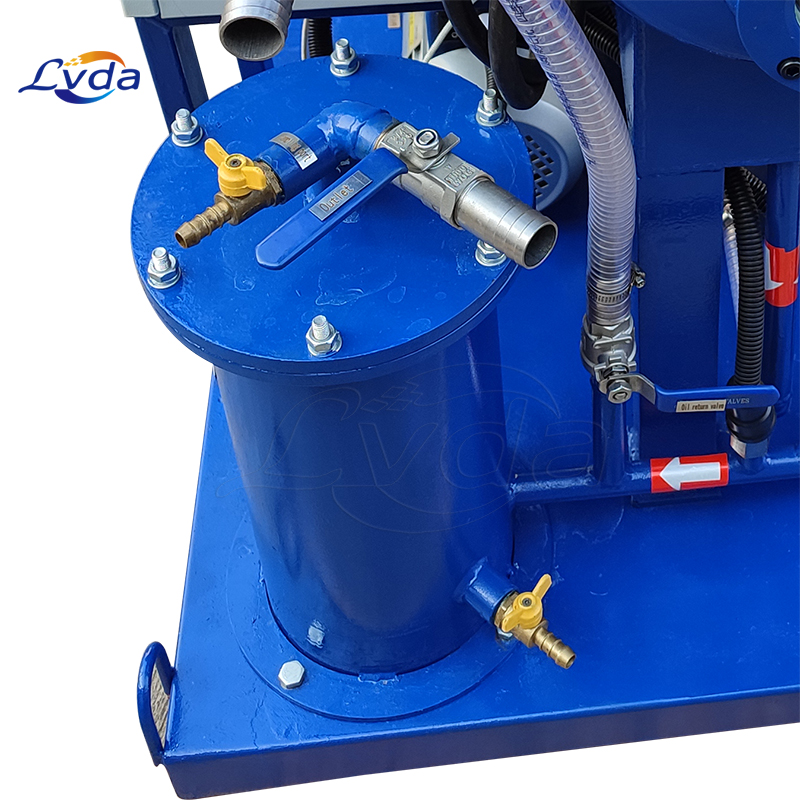

Working principle: When we turn on the machine, start to purify the oil, the oil will come into the primary fiter first by the vacuum negative pressure. To purify the bigger particles, normally 80μ.
After that oil will flow into the heater, then into the vacuum tank to dehydration and degassing by the vacuum.
Then the oil flow through the second flter, normally 50μ.
Then the oil will flow into the fine fiter, normally 5μ.
Oil comes out or keep the loop working.
How to do the maintenance
*After a certain period of running, the machine should be checked to see whether.
*The electrical control system is safe and reliable;
*The temperature controller is sensitive, reliable and accurate;
*Oil seals of the pump shaft are broken with leakage;
*There is any blockage with the running system and any abnormal noise with pumps or related motors;
*There is any air or oil leakage with the oil running system and at sealing joints.
*After each 3000 hours' running, grease shall be replenished to prevent motors from being bumt.
*Special vacuum pump oil or lubricating oil N46 should be used fro the vacuum pump and oil replaced or replenished if necessary at any time.
*If the machine will not be used over 1 month, Place the machine in a dry environment with the panel door and all valves closed, and the
machine proper protected by a covering.
Product parameters
Model
|
AOP-1V-25
|
AOP-1V-32
|
AOP-1V-50
|
AOP-1V-100
|
AOP-1V-150
|
AOP-1V-200
|
Flow rate(L/min)
|
25
|
32
|
50
|
100
|
150
|
200
|
Working pressure(Mpa)
|
|
|
0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
|
≤ - 0.095
|
|
|
|
Water content
|
|
|
5 - 30
|
|
|
|
Air content
|
|
|
≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
|
100 |
|
|
|
Grade 1 filter rating(μm)
|
|
|
10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
|
3/5 |
|
|
|
Pressure differentials
|
|
|
00.2Mpa |
|
|
|
Voltage(V)
|
|
|
AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
|
18 |
26 |
36 |
65 |
65 |
135 |
Weight(kg)
|
360
|
470
|
680
|
840
|
960
|
1500
|
Dimensions(mm) |
12500x920x1600
|
1350x980x1600
|
1500x1060x1800
|
1600x1080x2100
|
1800x1200x2200
|
2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
1. With high vacuum pump. Vacuum degree can up to -0.098 Mpa.
2.3D flashing by vacuum, it can eliminate the liquid water quickly. And Use UK micro technology to remove the trace water and other dissolved
water. The final oil water content can be <= 5ppm, gas content can be < 0.1%

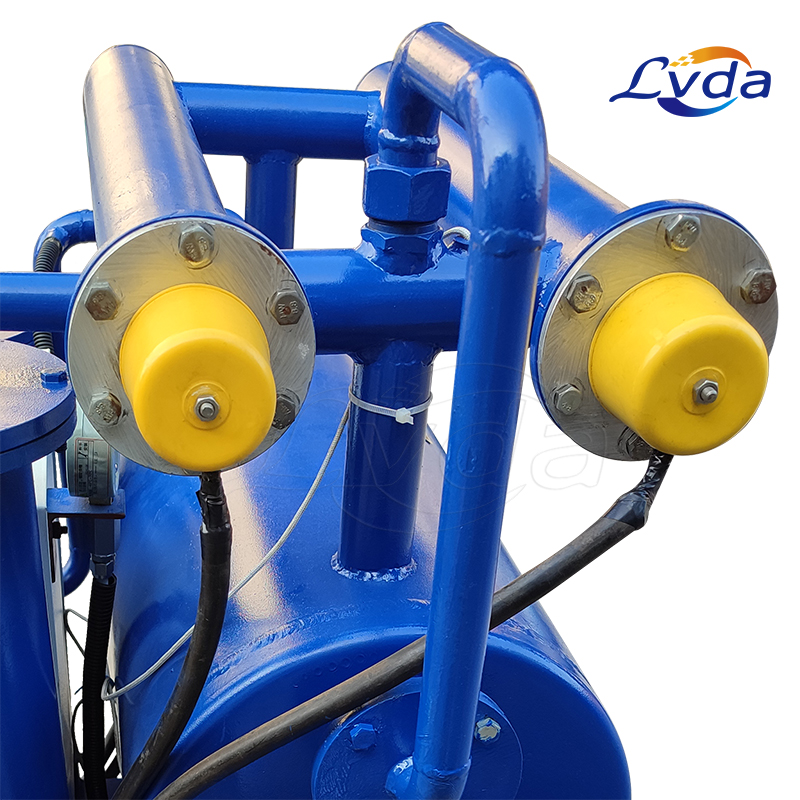

3. With Z type heater design, and the face of the heater is smooth, it can heating uniformity, avoid extra gas
4. Three stages flters, it combines double FH trapezoidal network and high polymer material absorption technology, the particle's precision can
5. We use fluoric cushion not nomal cushion, and double welding of the machine, with great sealing performance, can avoid extra gas and
have longer life
6. With automatically oil level control device
Product applications
This machine is applied to purify the unqualfed transformer oil, mutual inductor oil, switch oil and other insulation oil.
