Product Details

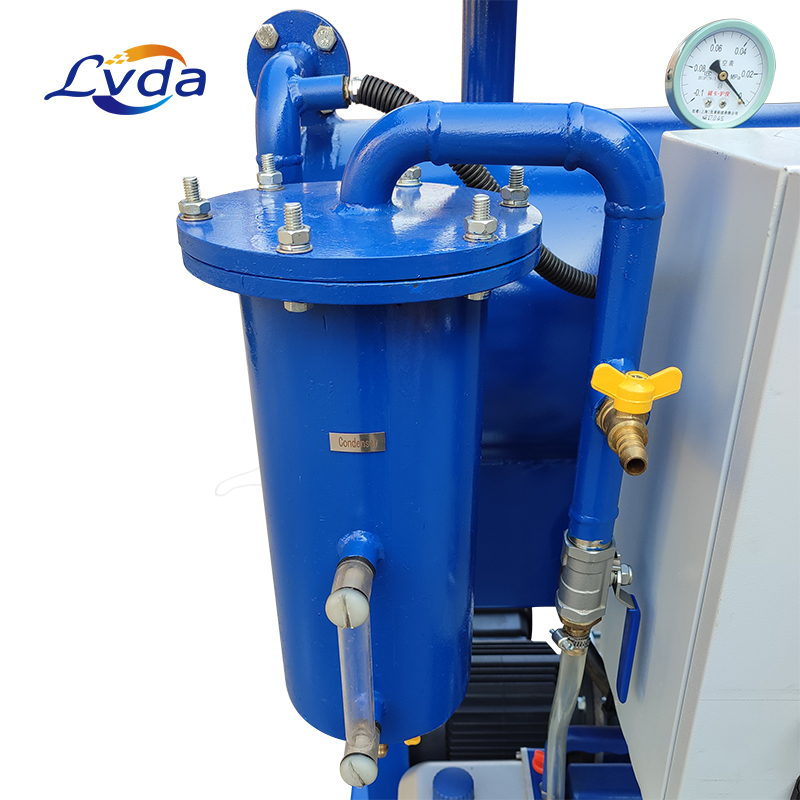

Vacuum oil filter machine
Our vacuum oil filter machine can be connected to off-line and on-line transformers, for dehydration in vacuum and filtration purification of transformer oil – at different processing rates depending on transformer sizes.
Our vacuum oil filter machine – are simple in operation, portable from one site to another, easy to maintain vacuum oil filter machines having processing rates respectively 500 l / h and 600 l / h (158.82 gal/hour)
The machines dry and decontaminate insulating oil to:
purification class (ISO 4406) -/14/12
moisture content below 10ppm
If lower moisture content is required, or the oil is very dirty and watered– the purity can be achieved by 2-3 passes through the machine.
The vacuum oil filter machine is installed to small power transformers, that are free breathing type or with a gas relay. A TSS transformer safety system securely connects the machine to an online transformer providing a reliable operation.
Product parameters
Model
| AOP-1V-25
| AOP-1V-32
| AOP-1V-50
| AOP-1V-100
| AOP-1V-150
| AOP-1V-200
|
Flow rate(L/min)
| 25
| 32
| 50
| 100
| 150
| 200
|
Working pressure(Mpa)
|
|
| 0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
| ≤ - 0.095
|
|
|
|
Water content
|
|
| 5 - 30
|
|
|
|
Air content
|
|
| ≤0.2% |
|
|
|

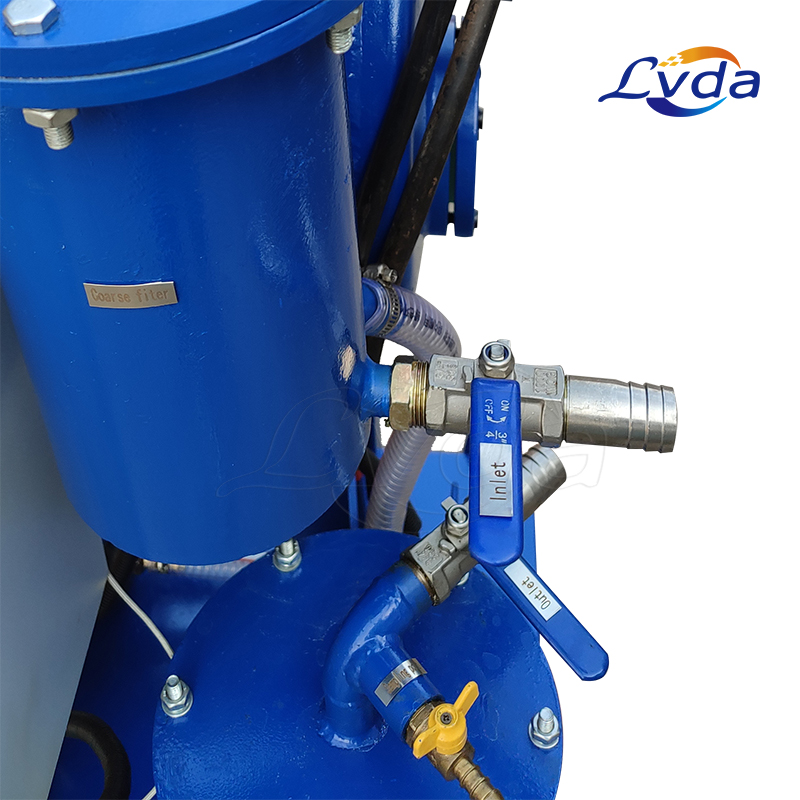

Coarse filtration(μm)
|
|
| 100 |
|
|
|
Grade 1 filter rating(μm)
|
|
| 10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
| 3/5 |
|
|
|
Pressure differentials
|
|
| 00.2Mpa |
|
|
|
Voltage(V)
|
|
| AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
| 18 | 26 | 36 | 65 | 65 | 135 |
Weight(kg)
| 360
| 470
| 680
| 840
| 960
| 1500
|
Dimensions(mm) | 12500x920x1600
| 1350x980x1600
| 1500x1060x1800
| 1600x1080x2100
| 1800x1200x2200
| 2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
Our vacuum oil filter machine is compact and transported on a trailer or semi-trailer to transformers or oil filled electrical equipment for servicing on-site. They are used during installation, maintenance and repair works – for filling, flushing, heating oil and transformer, evacuation, extracting solid matter, water and gas from oil.
The options include an extra vacuum assembly for transformer vacuuming, oil moisture sensors at the inlet/outlet and remote data monitoring and control.
An automatic operation is done through a PC.
We provide professional high quality vacuum oil filter machines to service power grid enterprises, transmission and distribution companies in power industry, power substations and utilities. Our mission is to create reliable equipment for the customer.
Product applications
Extra high voltage transmission and the manufacture of electrical apparatus.
In addition, it is applied in the degasification of cable oils including polybutenes.
Outside of the electrical industry, this process is used for dehydration and degasification of oils for radar and electronic equipment, vacuum pump sealing oils, brake fluids, refrigeration oils—including phosphate esters and silicones.
