Product Details

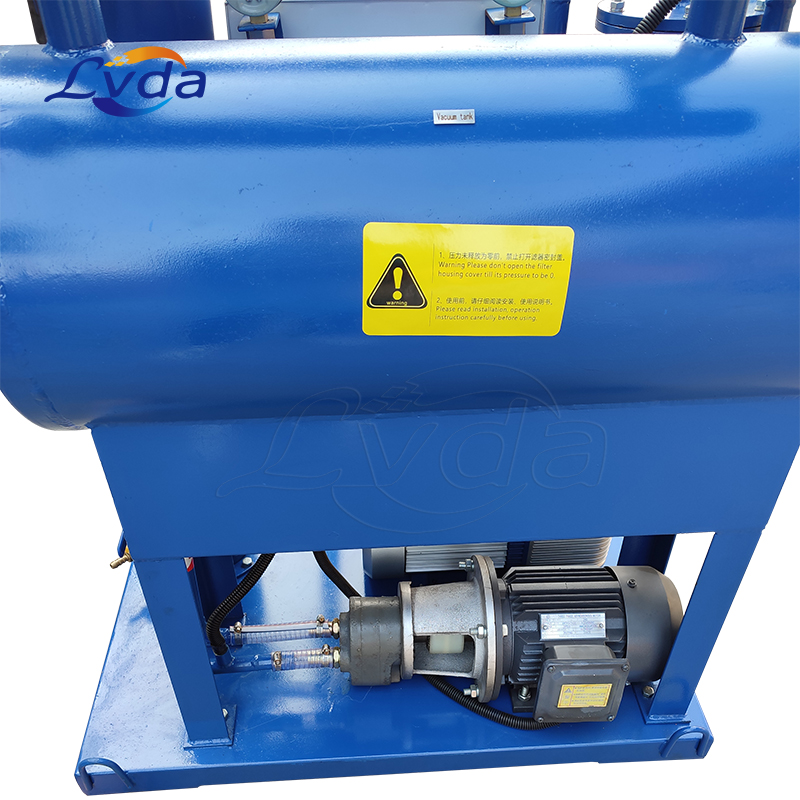

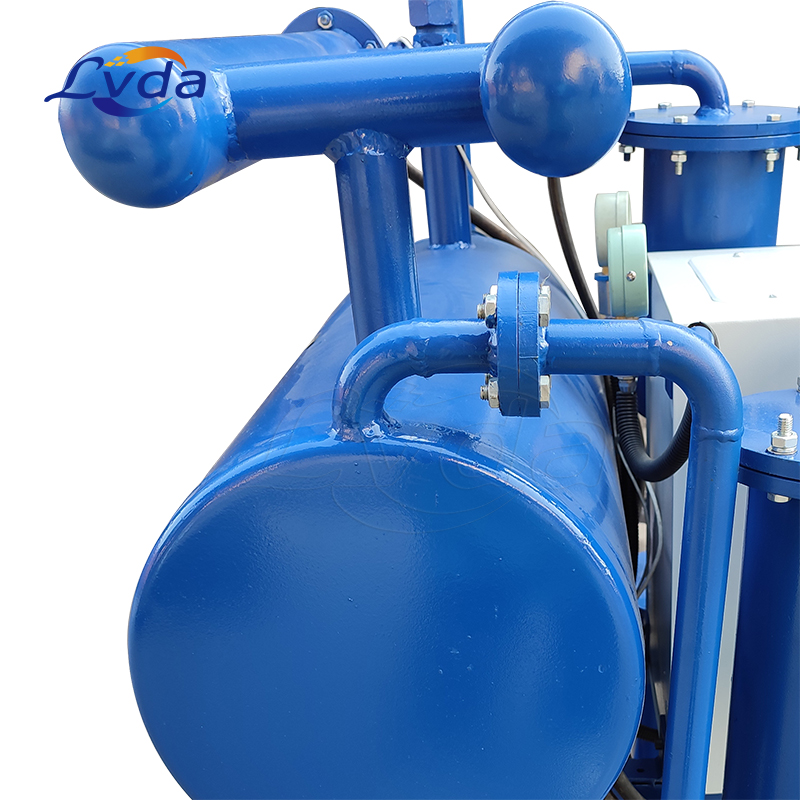

Highly effective vacuum oil purifier
Highly effective vacuum oil purifier absorbs the advanced thermo-vacuum technology. To achieve good oil filtering performance, it has high working vacuum, efficient oil filtering speed, oil quality protection. The equipment can quickly remove the trace moisture, gas and solid particles in transformer oil. It also can quickly increase the flash point and withstand voltage of transformer oil. The ZLA series can be fixed or trailer-mounted, suitable for oil treatment in the installation and maintenance of large transformer oils, as well as vacuum oiling cycle drying of transformers.
* Highly effective vacuum oil purifier is designed to remove contaminants (particulate, water, gasses, etc.).
* Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer’s insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages. Even some new oils still require treatment to limit these contents to acceptable levels.
Product parameters
Model
| AOP-1V-25
| AOP-1V-32
| AOP-1V-50
| AOP-1V-100
| AOP-1V-150
| AOP-1V-200
|
Flow rate(L/min)
| 25
| 32
| 50
| 100
| 150
| 200
|
Working pressure(Mpa)
|
|
| 0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
| ≤ - 0.095
|
|
|
|
Water content
|
|
| 5 - 30
|
|
|
|
Air content
|
|
| ≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
| 100 |
|
|
|
Grade 1 filter rating(μm)
|
|
| 10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
| 3/5 |
|
|
|
Pressure differentials
|
|
| 00.2Mpa |
|
|
|
Voltage(V)
|
|
| AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
| 18 | 26 | 36 | 65 | 65 | 135 |
Weight(kg)
| 360
| 470
| 680
| 840
| 960
| 1500
|
Dimensions(mm) | 12500x920x1600
| 1350x980x1600
| 1500x1060x1800
| 1600x1080x2100
| 1800x1200x2200
| 2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
Suitable for voltage grade ≤110KV transformers.
Portable and Compact in structure, simple in operation.
Convenient in maintenance, low cost.
The highly effective vacuum oil purifier adopts the most advanced oil filtering technology.
This product is manufactured with the highest quality fittings.
The machine filters transformer oil, hydraulic oil and other waste oils at a high speed, and the oil obtained by filtration has high quality.
Product application
Highly effective vacuum oil purifier applies to power plants, power stations, power companies, metallurgy, petrochemical, railway and other industrial and mining enterprises to clean and disqualify electrical insulating oil. Besides, this machine can be used together with the transformer oil regeneration decolorant device to remove acid, carbon,decolorization.
