Transformer Oil Purifier

Model Number:

Working pressure(Mpa) : 0.6

Rated vacuum(Mpa) : ≤ - 0.095

Water content : 5 - 30

Air content : ≤0.2%

Coarse filtration(μm) : 100

Get Quotation

Product Details

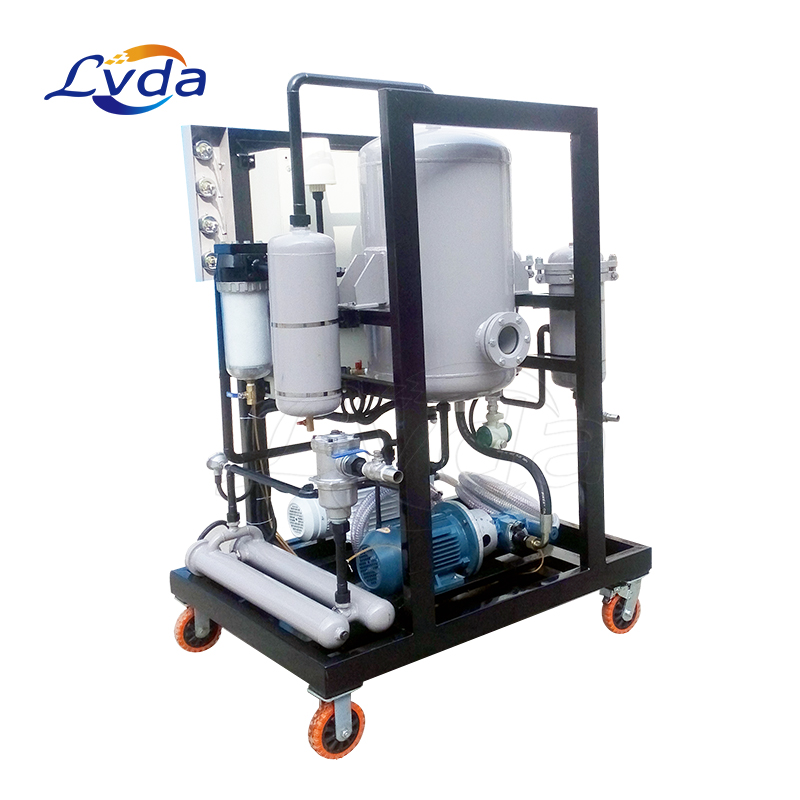

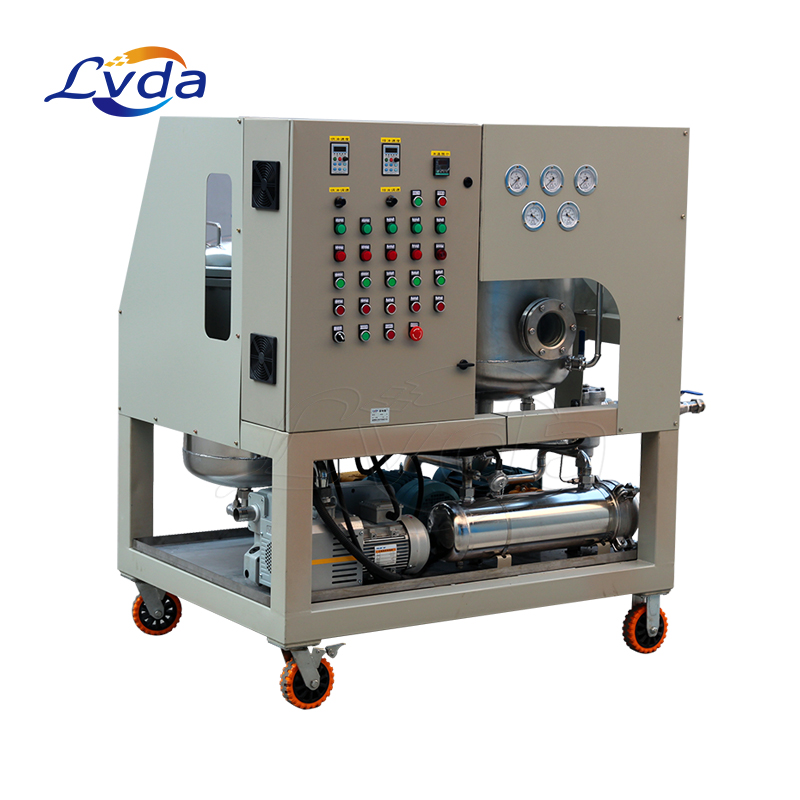

High efficiency single stage vacuum transformer oil purifier

High efficiency single stage vacuum transformer oil purifier is widely used in power industry and large industrial and mining enterprises to purify insulating oil for power transmission and transformation equipment below 220KV. It can also be used for the purification of hydraulic oil and lubricating oil. It can efficiently remove moisture, gas and impurity particles in oil, improve dielectric strength and oil quality, and ensure the safety and stable operation of electrical equipment.


Product parameters

 Model
AOP-1V-25
AOP-1V-32
AOP-1V-50
AOP-1V-100
AOP-1V-150
 AOP-1V-200
 Flow rate(L/min)
25
32
50
100
150
200
Working pressure(Mpa)


 0.6



Rated vacuum(Mpa)


≤ - 0.095



Water content


5 - 30



Air content


≤0.2%


Coarse filtration(μm)


100


Grade 1 filter rating(μm)


10、20


Grade 2 filter rating(μm)


3/5


Pressure differentials


00.2Mpa


Voltage(V)


AC 380V(Three-phase)、50Hz


Motor power(kw)
1826366565135
 Weight(kg)
360
470
680
840
960
1500

Dimensions(mm)

12500x920x1600
1350x980x1600
1500x1060x1800
1600x1080x2100
1800x1200x2200
2000x1200x2200

Note: * -is filter's rating,such as 03 is 3 microns.

**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate

hydraulic fluid

***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.

****-explosion-proof type: add F before type, Omission: normal type


Product features

1. Three-dimensional three-dimensional flash evaporation, efficient dehydration and degassing.

2. Impurity removal technology combining mesh filtration and polymer adsorption.

3. Double infrared liquid level automatic control.

4. Trinity interlock and protection device.

5. The machine can be used independently or in conjunction with the oil regeneration system.

6. This machine can be used for vacuum oiling and vacuum drying of insulated electrical equipment such as transformers.

7. It can randomly test the withstand voltage value and automatically print the test results.

8. This machine can be used together with other series of transformer oil decolorization devices to increase the functions of acid removal, decolorization, free carbon removal, and dielectric loss reduction.

9. The machine has the functions of vacuum oil filling and live online operation at the same time.

10. The machine has a trinity-integrated interlocking electrical automatic protection device (phase sequence protection, overload protection, overvoltage protection), and adopts the company's special precision oil pump, which has low noise and meets the high standards of world environmental protection.

Advantages: Transformer oil vacuum dehydration filter is a new type of high-efficiency vacuum oil filter, with three-dimensional three-dimensional flash evaporation and microgram technology, and adopts mesh filtration and polymer adsorption combined impurity removal technology,its efficiency is 5-8 times higher than that of ordinary vacuum oil purifiers, no other consumables are needed, and the energy consumption is extremely low.


Product applications

It is widely used in the power industry and large industrial and mining enterprises to purify the insulating oil of power transmission and transformation equipment below 220KV, and can also be used for the purification of hydraulic oil and lubricating oil. It removes oil efficiently

It can improve the insulation strength and oil quality, ensure the safe operation of electrical equipment, and specifically perform functions such as hot oil circulation drying, vacuum oil injection, and vacuum pumping of electrical equipment.
