Product Details

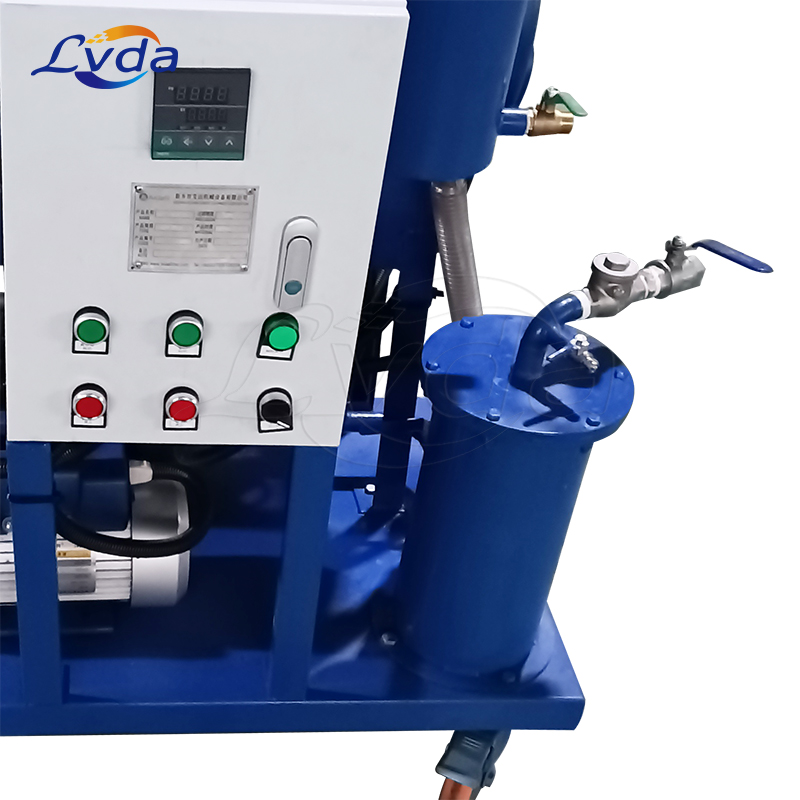

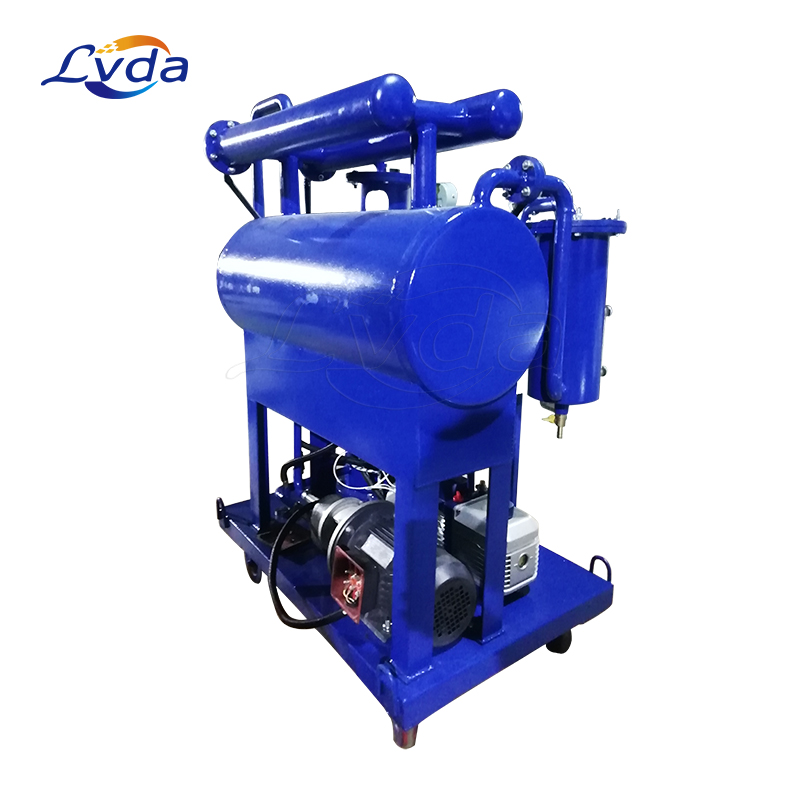

Vacuum Dehydration Oil Purification System
Leveraging more than 30 years of design and field experience, we delivers the third in its family of HLP series fluid conditioning purifiers—the Vacuum Dehydration Oil Purification System.
The series combines the water removal performance of mass transfer purifiers with high reliability and ease-of use to help ensure maximum equipment uptime and lowest cost of ownership. This enables you to focus on your process, not on your equipment.
Product parameters
Model
|
AOP-1V-25
|
AOP-1V-32
|
AOP-1V-50
|
AOP-1V-100
|
AOP-1V-150
|
AOP-1V-200
|
Flow rate(L/min)
|
25
|
32
|
50
|
100
|
150
|
200
|
Working pressure(Mpa)
|
|
|
0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
|
≤ - 0.095
|
|
|
|
Water content
|
|
|
5 - 30
|
|
|
|
Air content
|
|
|
≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
|
100 |
|
|
|
Grade 1 filter rating(μm)
|
|
|
10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
|
3/5 |
|
|
|
Pressure differentials
|
|
|
00.2Mpa |
|
|
|
Voltage(V)
|
|
|
AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
|
18 |
26 |
36 |
65 |
65 |
135 |
Weight(kg)
|
360
|
470
|
680
|
840
|
960
|
1500
|
Dimensions
(mm) |
12500x920x1600
|
1350x980x1600
|
1500x1060x1800
|
1600x1080x2100
|
1800x1200x2200
|
2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
Vacuum Dehydration Oil Purification System series come with the following standard
features that many suppliers charge extra for:
* Dissolved water sensor
* Low-watt density heater
* Condenser with gravity drain
Product application
The Vacuum Dehydration Oil Purification System is mainly suitable for on-site maintenance of various high and low voltage oil-carrying equipment (various types of oil-immersed transformers, oil-immersed currents, voltage transformers and Oil-less relays, etc.) are required. Its main applications are:
1. Filter transformer oil, turbine oil, engine oil, hydraulic oil, etc. to remove impurities and moisture in the oil;
2. Perform on-site oil filtering and oil replenishment for various types of oil-immersed transformers, oil-immersed currents, voltage transformers and oil-less relays and other electrical equipment;
3. It is more effective to carry out on-site hot oil circulation drying for oil-bearing power equipment, especially for hot oil circulation drying of oil-immersed current, voltage transformers and oil-less relays;
4. On-site vacuum oil injection and oil replenishment for various types of electrical sealing oil immersion equipment;
5. Vacuum all kinds of equipment;
6. Regenerate and purify the light and deteriorated transformer oil (insulating oil) to restore the performance of the oil.
