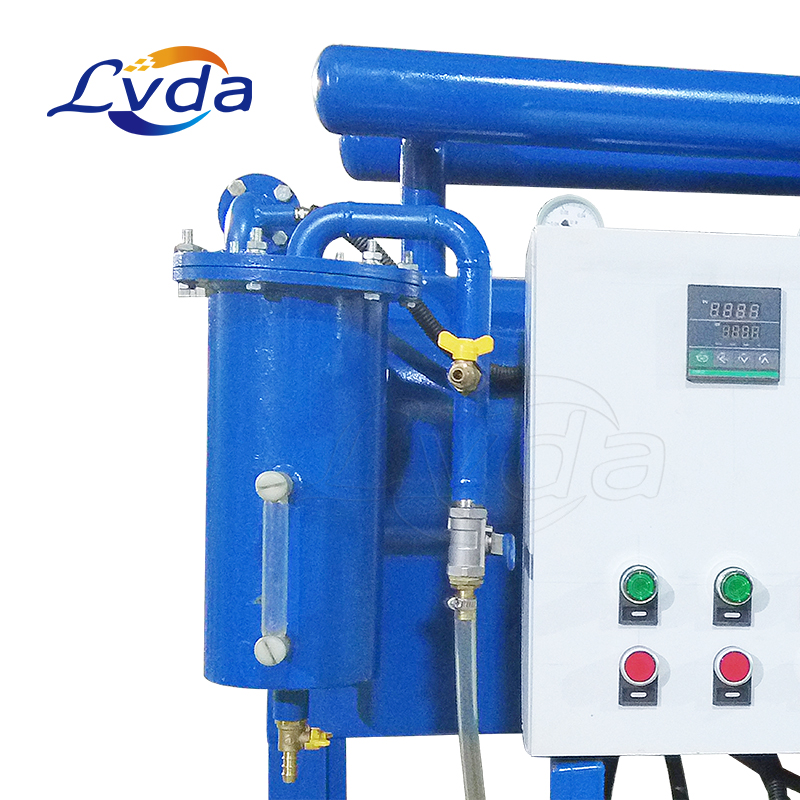

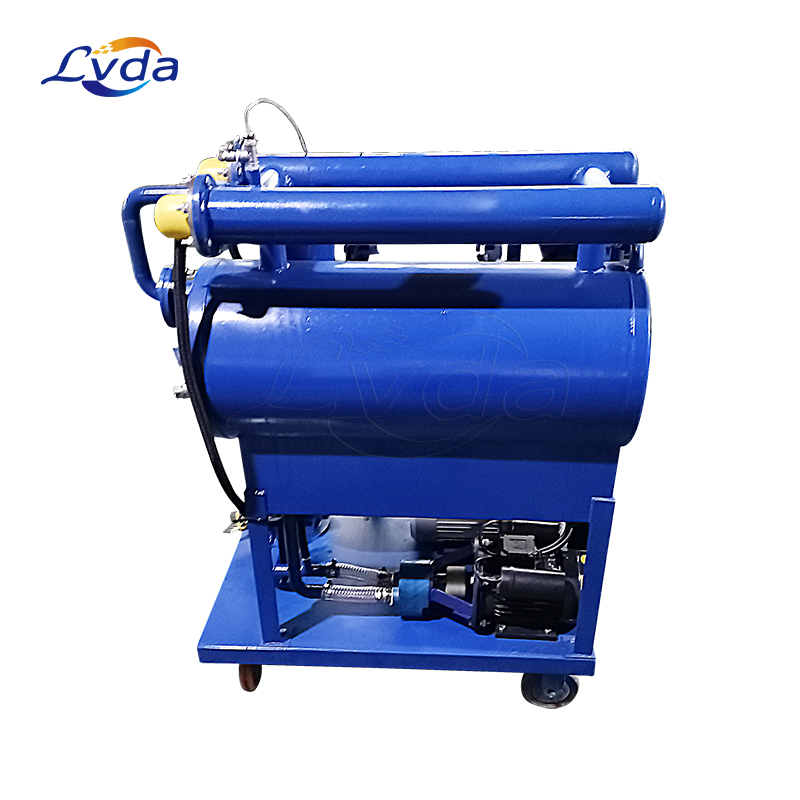

Vacuum Dehydrator Oil Purifiers
Vacuum Dehydrator Oil Purifiers
Vacuum Dehydrator Oil Purifiers

Vacuum Dehydrator Oil Purifiers

Transformer Oil Purifier

Model Number: Oil Purifiers

Working pressure(Mpa) : 0.6

Rated vacuum(Mpa) : ≤ - 0.095

Water content : 5 - 30

Air content : ≤0.2%

Coarse filtration(μm) : 100

Get Quotation

Product Details

Vacuum Dehydrator Oil Purifiers

Oil, at ambient or elevated temperature, is introduced into the vacuum chamber, where by vacuum distillation, water, dissolved air and gases, and other low-boiling-range volatile contaminants are removed.

Special chemically inert accelerator cartridges in the vacuum chamber are employed to serve the following functions:

First, their in-depth design structure allows free water to be rapidly separated from oil by coalescence even before it reaches the evaporation stage.

Second, millions of glass fibers 3-10 micrometer diameter provides a large total surface area for exposure of the thin oil film to the vacuum.

Third, sharp points of the glass fibers promote fast release of gases and vapors from oil.

Fourth, the elements act as a fine filter removing solid contaminants. The cartridges are easily replaced and disposable.

This method is more efficient than previously used spray nozzles and baffles, which required several passes to obtain the same degree of degasification.


Product parameters

Model
AOP-1V-25
AOP-1V-32
AOP-1V-50
AOP-1V-100
AOP-1V-150
 AOP-1V-200

Flow rate

(L/min)

25
32
50
100
150
200
Working pressure(Mpa)


 0.6



Rated vacuum(Mpa)


≤ - 0.095



Water content


5 - 30



Air content


≤0.2%


Coarse filtration(μm)


100


Grade 1 filter rating(μm)


10、20


Grade 2 filter rating(μm)


3/5


Pressure differentials


00.2Mpa


Voltage(V)


AC 380V(Three-phase)、50Hz


Motor power(kw)
18 26 36 65 65 135
Weight(kg)
360
470
680
840
960
1500

Dimensions(mm)

12500x920x1600
1350x980x1600
1500x1060x1800
1600x1080x2100
1800x1200x2200

2000x1200x2200

Note: * -is filter's rating,such as 03 is 3 microns.

**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate

hydraulic fluid

***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.

****-explosion-proof type: add F before type, Omission: normal type


Product features

Our Vacuum Dehydrator Oil Purifiers are extremely customizable, some of the

options that are available include:

Extra heater capacity for faster temperature rise

Outlet heater to assist in maintaining transformer temperature

Diesel boiler to minimise power consumption

Viton gaskets

Dual control system

Fuller’s earth/regeneration connections

Dry Air systems, breathable options

Onboard power generator

Onboard fullers earth system (E575A series)

Inline dielectric strength tester

Inline gas analyzer

Fully air-conditioned operators cabin

Data logging & reporting

Remote monitoring

Chilled trap

Interstage chiller

Wireless emergency dial out, email, SMS text

Touchscreen HMI controls

TOLMS (Transformer oil level monitoring system) for energized transformers

Reverse flow changeover valves

Hose storage reels or live reels

Power cable storage reel or live power reels

Multi-voltage power input

Oil mist eliminator

Interstage condenser

Refrigerated cold trap

Full aluminum trailer, from tagalong up to 53ft semi-trailer

Soft-side tarpaulin tagalong trailer

Container Mounted or soft side lifting frame

EEx or NEMA 7 explosion-proof

Full stainless-steel option


Product applications

VACUUM OIL-PURIFICATION SYSTEMS

The most important applications of high vacuum dehydrator oil purifiers are in the field of extra high voltage transmission and in the manufacture of electrical apparatus for it. In addition, the high vacuum process is used in the degasification of cable oils including polybutenes. Outside of the electrical industry, this process is used for dehydration and degasification of oils for radar and electronic equipment, vacuum pump sealing oils, brake fluids, refrigeration oils—including phosphate esters and silicones.

We offers Vacuum Oil-Purifier series designed for maximum efficiency in your operations…performance tested by experts, requiring minimum maintenance, and providing long, trouble-free service.

Backed by the full resources of our technical specialists, plus “knowhow” and thorough research, your Vacuum Oil-Purifier is unique. Designed for unattended operation and suitable for operation on energized equipment—complete monitoring equipment is also available.
