Latest Stainless steel filter cartridge with top quality

Product Details

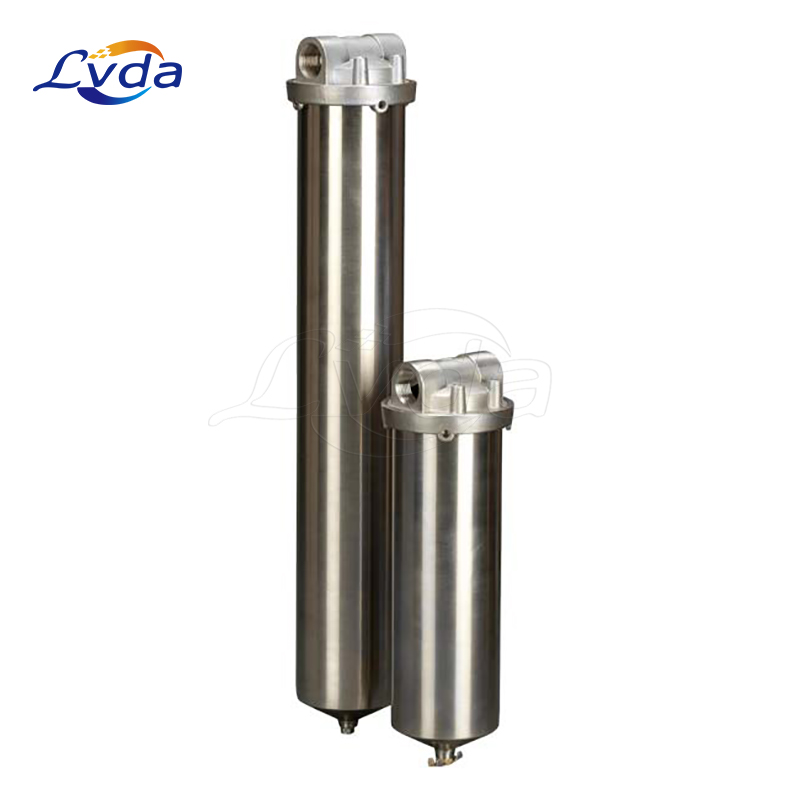

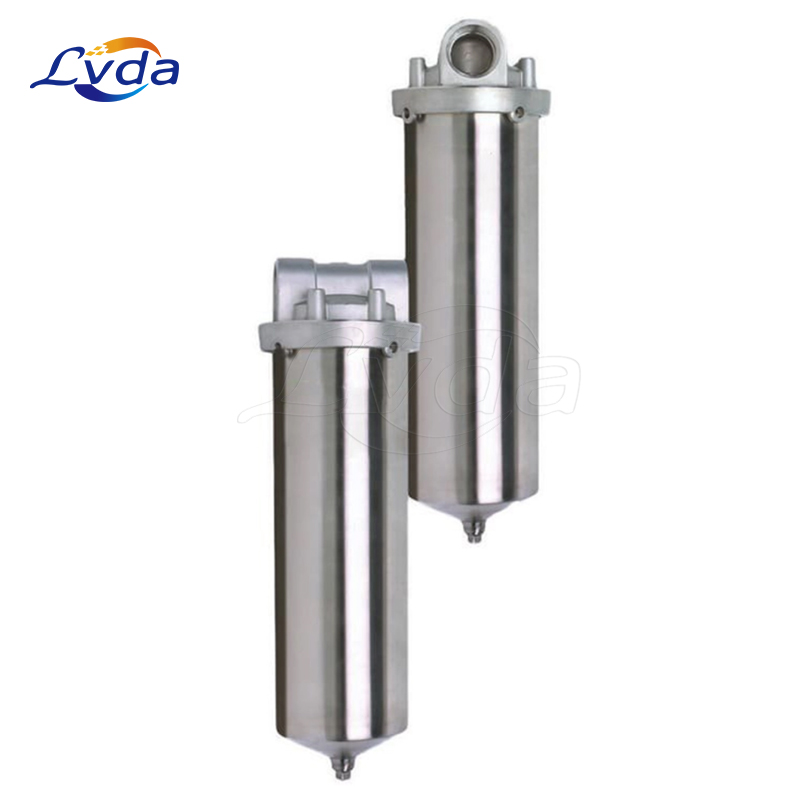

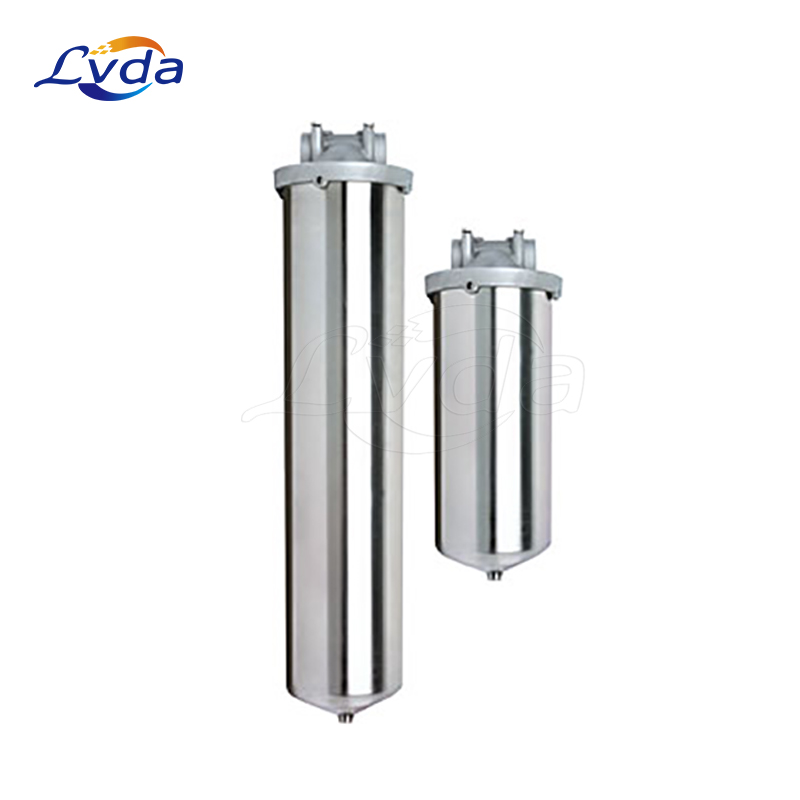

4.5” x 20” Commercial/Industrial Stainless Steel Single Cartridge Filter Housing

The US Water Systems SS Filter Housings are made of 304 stainless and accept any double open-end (DOE) cartridge. These housings are designed for high-temperature (up to 200°F) and high- pressure (up to 300 psi). The spring-loaded knife seal edge provides a positive seal for 19.5” or 20” cartridges.

Product features

Ring-Nut Closure – Provides easy filter change with a positive seal.

All Stainless Steel - Ideal for a variety High Purity commercial and industrial applications

1” Inlet and Outlet – Flows up to 22 GPM

Includes Mounting Bracket and Screws – For easy installation

Uses DOE Cartridges – Readily available

Meets FDA Requirements – Safe for all potable water, food and beverage applications

Product parameters

Inlet/Outlet: 1”

Drain (on bottom): 1/4”

Body: 304 Stainless Steel

Head: 304 Stainless Stel

O-Ring: EPDM

Maximum Working Pressure: 300 psi (20.68 bar)

Maximum Operating Temperature: 200°F (93°C)

ADDITIONAL INFORMATION

WARRANTY10 Years on SS Head and SS Sump

FILTER SIZE4.5 x 20

MANUFACTURER Xinxiang AIDA Machinery Equipment Co., Ltd

Product applications

Applications

Chemicals

Electronics

Wastewater

Potable Water

Food & Beverage

RO Pre-filtration

Plating Solutions

Coolants & Inks

Paints & Coatings

Photographic Solutions
