Air compressor coolers

The air compressor is used because the compressed air is stored in the tank by the compressor during the working process. Due to the high pressure, more heat energy is generated. If the temperature cannot be cooled in time, there is a risk of overheating. The air compressor cooler is a machine used for cooling to cool down, which can better maintain the continuous operation of the air compressor. After long-term use, the air compressor cooler should also be cleaned in time to prevent its own scale, which will increase the inlet and exhaust temperatures of the air compressor and affect the cooling effect.

Specification reference

Working principle

Compressed air coolers, also known as air compressor coolers, are mainly divided into air-cooled compressed air coolers and water-cooled compressed air coolers. Regardless of whether the cooler adopts air cooling or oil cooler, the working principle is the same. The fins of the air-cooled cooler are easily covered by dust and affect the cooling effect. The exhaust temperature will be too high and cause the machine to jump. Therefore, it is necessary to pay attention to the cleaning of the cooler in the maintenance. When it is blocked, it must be cleaned by a special liquid soaking method to achieve the real effect of removing impurities.The function of the cooler is to ensure that the entire air compressor is not in a high-temperature working state, reduce the temperature of the entire machine, and ensure that the operating temperature of the air compressor tends to a stable range. Our AIDA cooling system adopts high-efficiency heat exchanger, which is a special heat exchanger for high temperature and high humidity environment. The heat exchange area is increased by more than 30%, and the well-known brand low-noise cooling fan is selected, which is energy-saving and efficient.

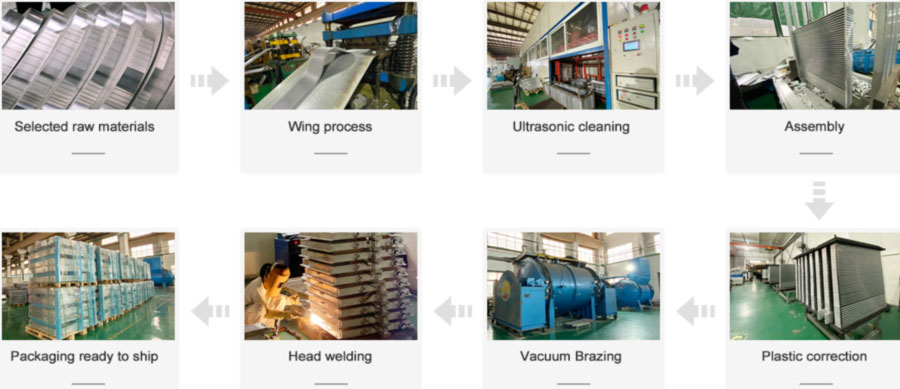

Process flow

How to clean the cooler?

After the air compressor cooler is used for a long time, the calcium, magnesium and other bicarbonate substances in the air compressor cooler water will form scale in it, which will increase the air compressor inlet and exhaust temperatures, and the air cannot be cooled to the predetermined level. temperature, so it is very important to clean the air compressor cooler.

* Air-cooled air compressor cooler cleaning

Stop the air compressor equipment and confirm that the pressure has been released, and pull down the main power switch. Open the air hood to clear the cover, or remove the cooling fan. Use compressed air to blow back the dirt, and then take the dirt out of the air hood; if it is very dirty, spray some degreaser before blowing. When the air compressor cooler cannot be cleaned by the above method, it needs to be removed, soaked or sprayed with cleaning fluid and cleaned with a brush. Install the cover or cooling fan.

* Water-cooled air compressor cooler cleaning

Shut down and confirm that the pressure has been released, and pull down the main power switch. Disconnect the cooling water inlet and outlet pipes. Inject the cleaning solution to soak or use the pump to circulate. Rinse with clean water. Install the cooling water inlet and outlet pipes.

* Air compressor oil cooler cleaning

When the scale of the oil cooler is serious and the above methods are not ideal for cleaning, you can remove the oil cooler separately, open the end caps at both ends, and use a special cleaning steel brush or other tools to remove the scale. Scale can be removed chemically.

Some common part numbers:
