Product Details

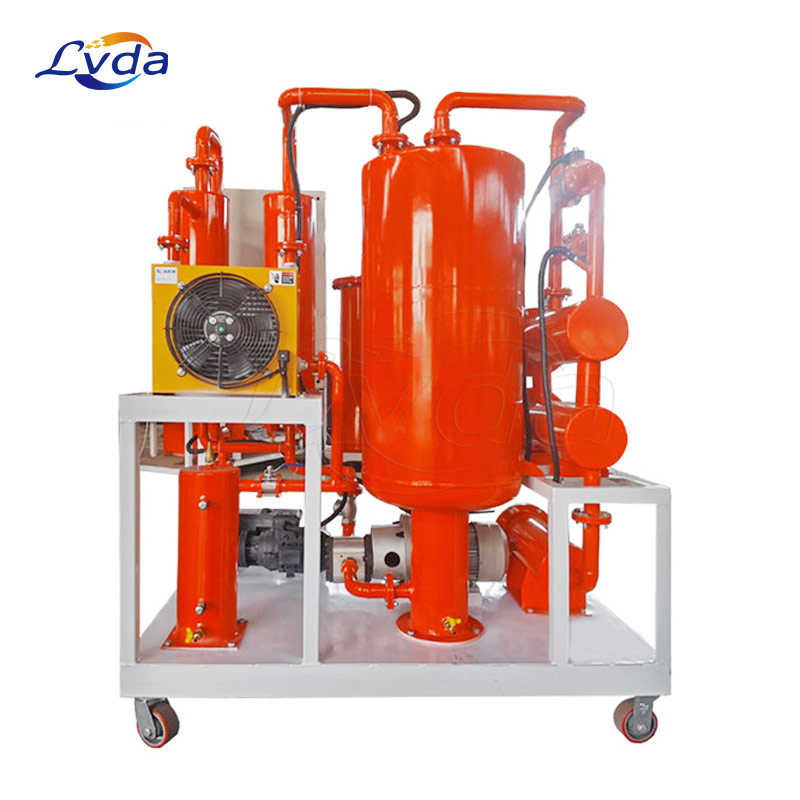

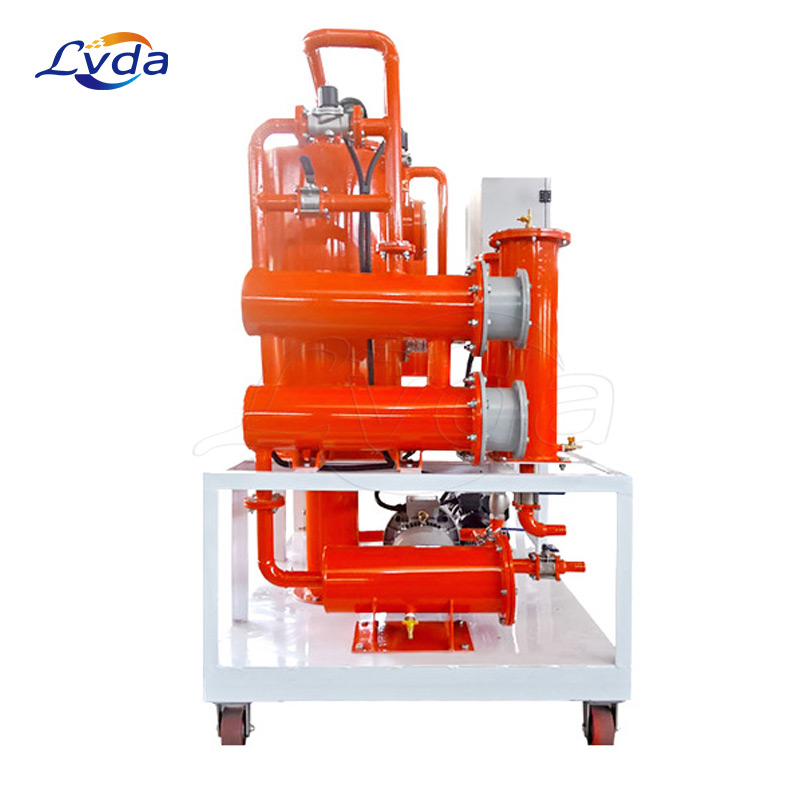

High viscosity lubricating oil purifier vacuum recycling machine oil equipment is a kind of oil filter equipment. This high viscosity lubricating oil purifier vacuum recycling machine oil equipment is mainly a kind of filter equipment for processing high viscosity oil. High viscosity lubricating oil purifier vacuum recycling machine oil equipment can filter high viscosity oil during use and can filter to the desired precision. Mainly through the method of pressurization and then remove the unclean impurities to get the desired oil.
Working principle of high viscosity lubricating oil purifier vacuum recycling machine oil equipment:
Mainly add high-viscosity oil at the inlet of the high viscosity lubricating oil purifier vacuum recycling machine oil equipment, then start the high viscosity lubricating oil purifier vacuum recycling machine oil equipment through the motor, and then pressurize the oil to enter the filter element structure through the pipeline, squeeze it, and then filter it. A process that ultimately achieves results.
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features
*The high viscosity lubricating oil purifer vacuum recycling machine oil equipment conveys the oil filtration process smoothly and evenly.
*The high viscosity lubricating oil purifer vacuum recycling machine oil equipment is economical and efficient, it can filter corrosive media, and the temperature is high.
*This high viscosity lubricating oil purifer vacuum recycling machine oil equipment can handle high viscosity media.
Applications
*To filter high-viscosity gear oils or lubricants
*To fill-up high-viscosity gear oils or lubricants
*The by-pass filtration for working hydraulic lubricants system
