Product Details

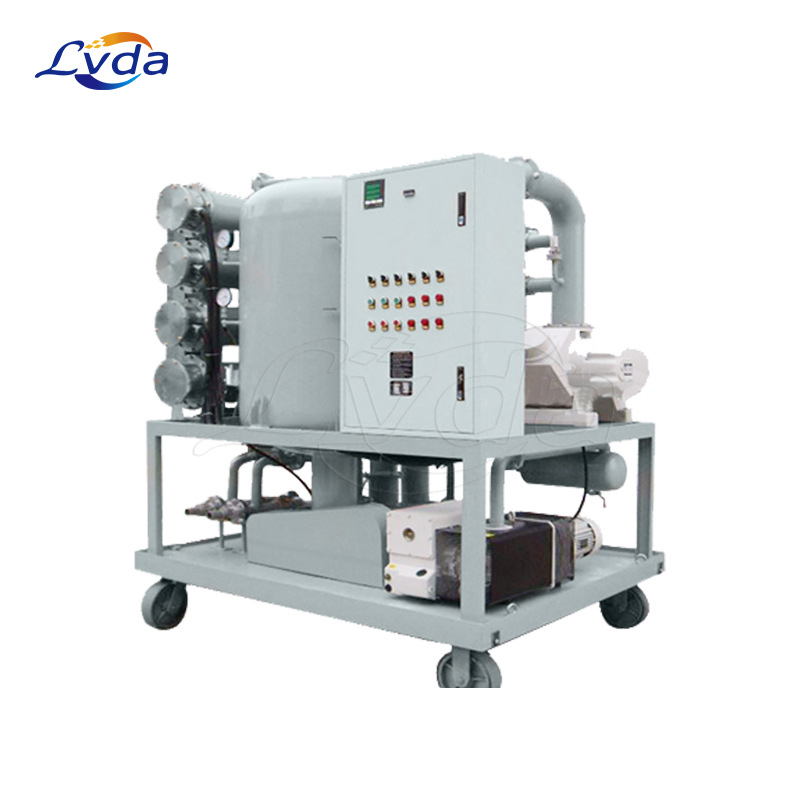

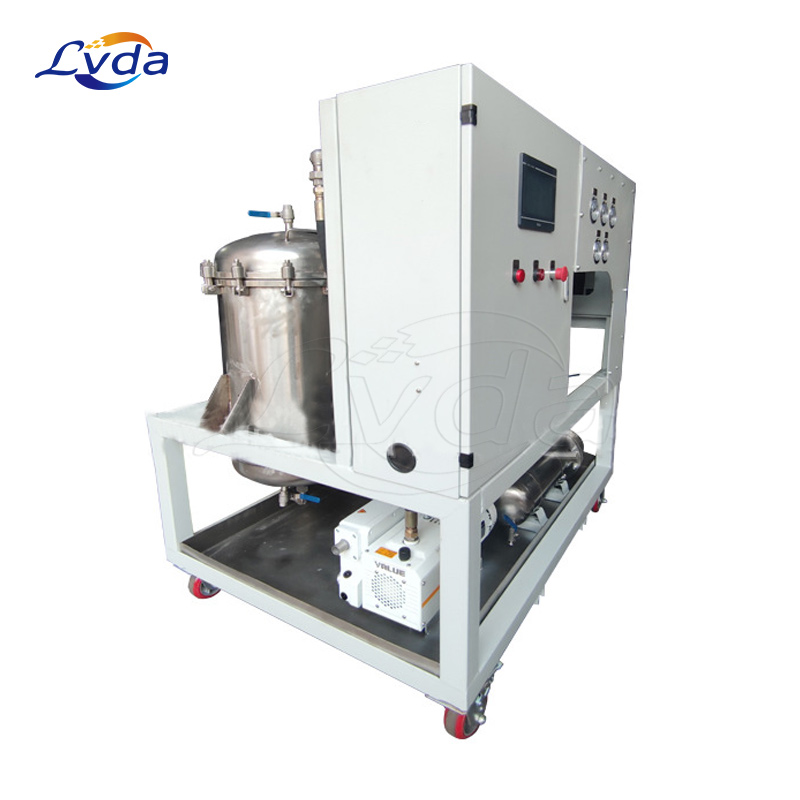

The high-viscosity vacuum oil purifier is specially designed for high-viscosity oil above No. 220. It is used for the regeneration and purification of high-viscosity gear oil, hydraulic oil and lubricating oil of heavy-duty machinery and equipment in industries such as cement, mining, metallurgy, etc. The impurities and moisture in the oil can ensure the normal operation of the equipment, reduce the consumption of oil products, and save costs for the enterprise.
After the purified oil has been purified by this machine several times, the following indicators can be reached:
1. Residual moisture: 7mg/kg
2. Residual gas: 0.3%
3. Filtration precision: 3μm
4. Appearance: transparent
5. Cleanliness: NAS<7
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features
1. The graded filter element (imported filter material) is used for step-by-step encryption. It will not reduce the filtration precision while improving the oil flow capacity.
2.. Adopt advanced vacuum negative pressure dehydration and degas technology to remove micro water in oil.
3. The polymer magnetic material filter element effectively breaks the demulsification and adsorbs particulate impurities; the three-dimensional compound three-dimensional flash evaporation technology effectively dehydrates and degass.
4. The independent circulating heating system has low operating power consumption, only less than 40% of the total power; the heating element of the material ensures that the oil is heated evenly and avoids carbonization.
5. The digital display type intelligent temperature controller overcomes the defect that the traditional pointer type temperature controller can only set one heating point, and can set the upper and lower limits arbitrarily at 0 ~ 100 ℃, and there is no turbulence at the set critical point, which is more intuitive Displays the instant temperature of the oil.
6. There are protection measures such as overpressure, overcurrent, overload, and anti-dry burning.
7. The whole machine is controlled by interlocking, which can run online for more than 200 hours.
Applications
Filtration and filling of high viscosity lubricating oil.
Bypass filtration when working with high viscosity lubricating oil systems.
Electronics and pharmaceuticals: used for pretreatment and filtration of reverse osmosis water and deionized water, pretreatment of cleaning solution and glucose.
Textile and packaging: The filter element is used for the purification and uniform filtration of polyester melt in the wire drawing project, the protection and filtration of the air compressor, and the oil and water removal of the compressor.
Thermal power and nuclear power: purification of steam turbine, boiler lubrication system, speed control system, fan and dust removal system.
