Product Details

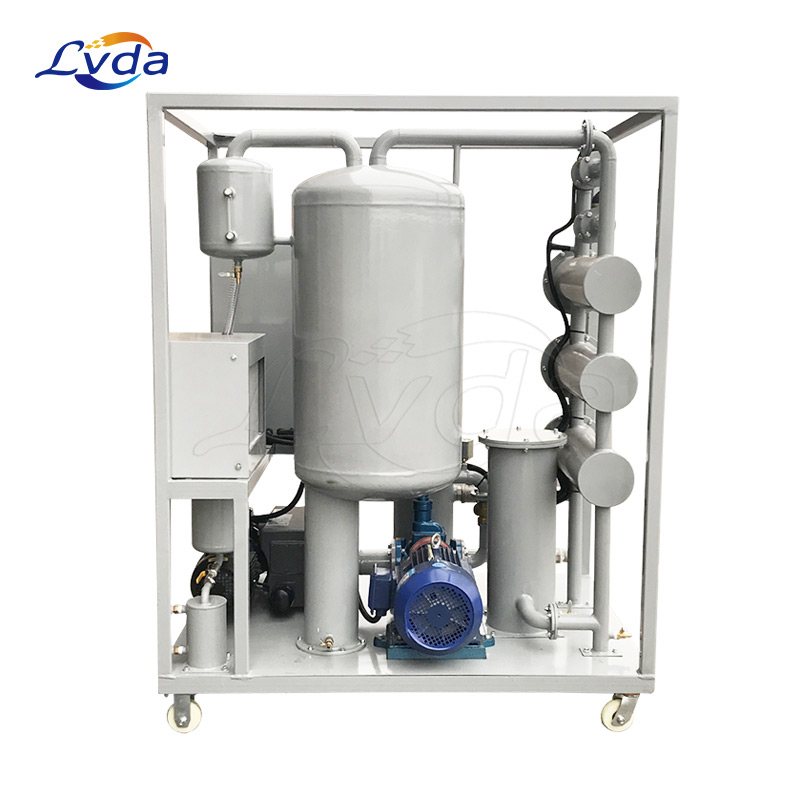

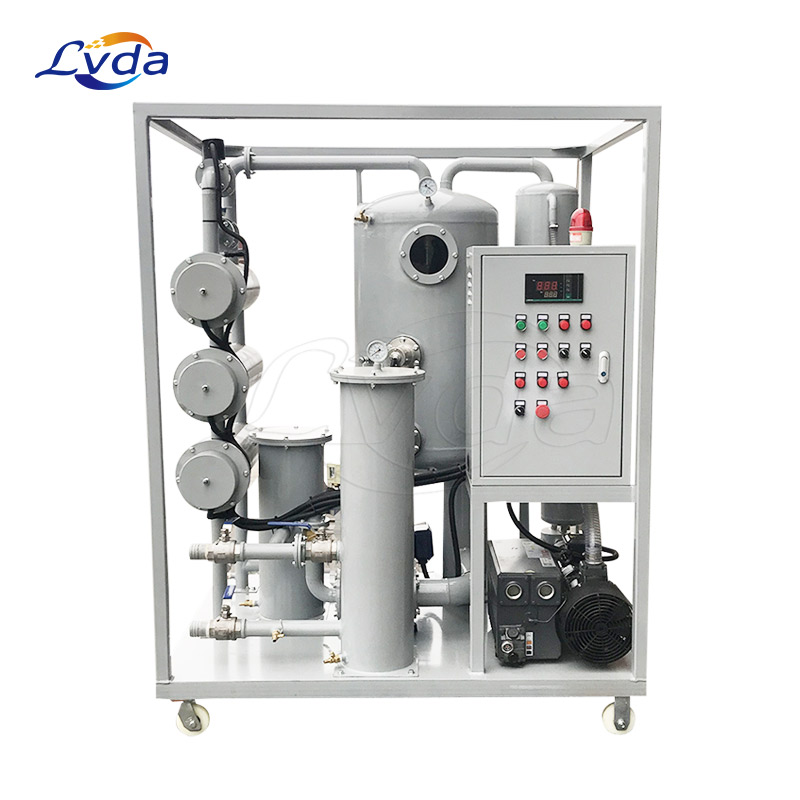

This high viscosity mobile oil filter/purifier machine/oil filter machine is specially designed for the purification treatment of high-viscosity oil products above 220#. Regeneration and purification treatment can effectively remove impurities and moisture in the oil, ensure the normal operation of the equipment, reduce oil consumption, and maximize energy saving and efficiency for customers. At the same time, the high viscosity mobile oil filter/purifier machine/oil filter machine can also handle common lubricating oil, hydraulic oil, etc., such as all oil products from 32# to 680#, so that one machine can be used for multiple purposes.
The high viscosity mobile oil filter/purifier machine/oil filter equipment is generally mobile open type, and can also be designed as fixed installation, fully enclosed type, complete machine explosion-proof, etc. as required; oil pumps, vacuum pumps, and electrical components are provided with domestic, imported or joint venture brands for selection; filter element pollution detection alarm can be added as required , automatic drainage, automatic vacuum adjustment and other additional functions.
Basic technical indicators after oil purification:
residual water
≤100PPM
residual gas
≤0.1%
Mechanical impurities
none
Filtration accuracy
≤5～20μm
Oil cleanliness
≤6NAS
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features
→ The screw pump specially designed for this model is used as the oil inlet pump, with low speed, strong suction performance, and insensitivity to impurities, ensuring smooth delivery of oil into the equipment and extremely low operating noise.
→ Equipped with a vacuum oil inlet switching device, which can cut off the oil inlet pump when processing general lubricating oil and hydraulic oil, and directly use the vacuum suction method to enter the oil to reduce unnecessary power consumption.
→ The multi-stage gradual-density filtration system adopts the company's special stainless steel filter element for high viscosity oil, which has high filtration accuracy, strong flow capacity, easy cleaning, high filter element strength, can be used repeatedly, and has a longer life than ordinary filter elements. The traditional way of ensuring the flow capacity and service life of the filter element at the expense of filtration accuracy.
→ A backwashing system is set up to quickly backwash the blocked filter element to ensure normal purification and avoid manual disassembly and cleaning.
→ The balanced heating system adopts two-stage cascade heating without dead oil area. It can automatically control the heating power input amount according to the setting and timely oil temperature, which can not only quickly heat the full power and reduce viscosity when the oil temperature is low, and the oil temperature reaches the preset value When the temperature is high, it can automatically run at low power to maintain the oil temperature, which makes the equipment more energy-saving, only about 45% of the total power, and at the same time avoids overheating and carbonization of the oil.
→ Special external circulation heating interface, rapid preheating reduces oil viscosity, reduces the influence of oil viscosity factors on the filter capacity of the filter element, and ensures the purification effect.
→ Fuzzy area heating control, which can automatically control the operation of the heating system according to the set temperature, no turbulence at the critical point of heating, and more stable and balanced heating.
→ Three-dimensional compound three-dimensional flash evaporation quickly removes water and gas in oil.
→ The liquid level control adopts the combination of electric float ball controller and solenoid valve to realize automatic oil feeding and automatic oil level balance; the control is accurate and reliable to avoid oil running; it can be interlocked to protect the heating and prevent dry burning.
→ The digital display intelligent temperature controller can set the upper and lower limits of the heating temperature, the control is stable, and the temperature display is more intuitive. The temperature measuring probe directly detects the oil temperature, and the temperature measurement is sensitive, accurate, and has no hysteresis.
→ Strong wind condensing system: It can quickly condense the water vapor separated from the oil into water, improve the dehydration rate and reduce the vacuum pump load.
→ The whole machine is equipped with double overpressure, overcurrent, overload and anti-dry burning protection measures to ensure the safe operation of the equipment.
Applications
1. Filtration of high viscosity oil
2. The filling of high viscosity oil
3. The bypass filtration when high viscosity oil system at work
