Product Details

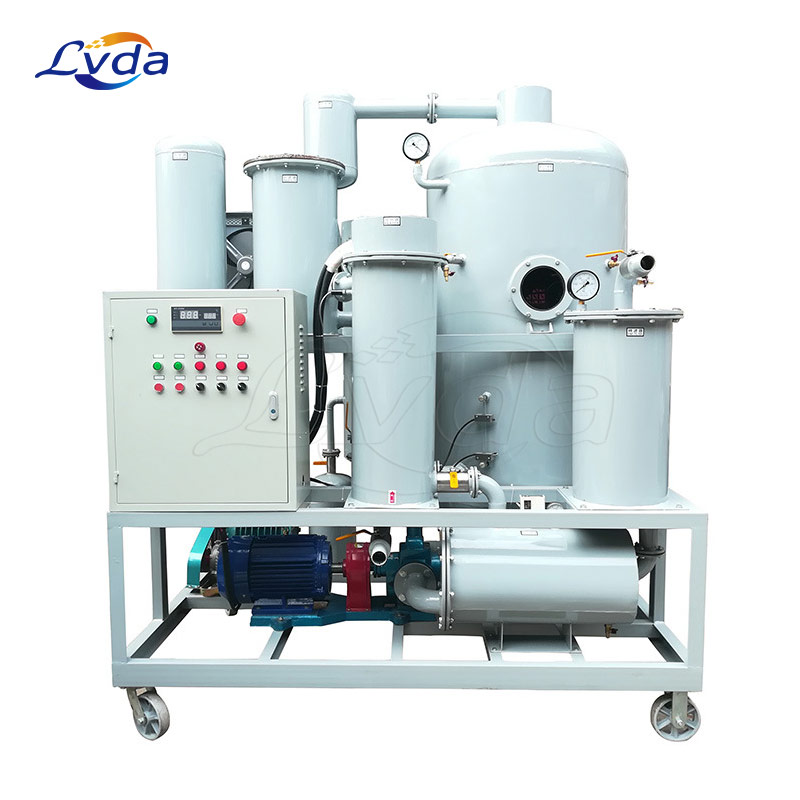

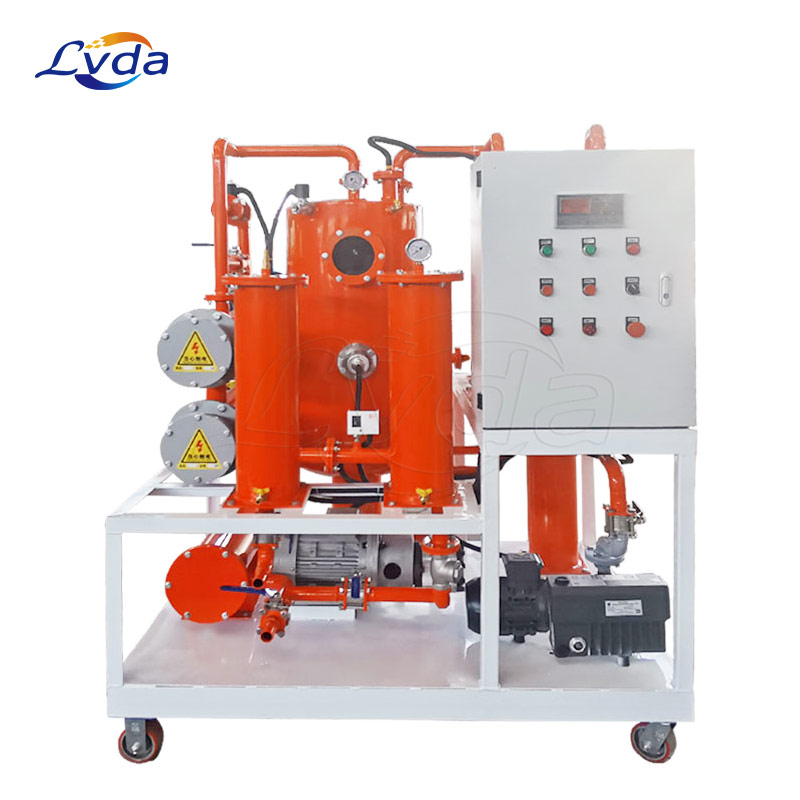

This high viscosity mobile oil purifier is mainly used to deal with unqualified gear oil, high-viscosity oil filtration, etc. The device handles values of oil viscosity (150-680). This high viscosity mobile oil purifier machine is usually equipped with three or more filtration systems, and can also be equipped with more than five filtrations according to customer requirements. The equipment is light and flexible, and the operation is simple. High viscosity mobile oil purifier series is equipped with a heater system and a constant temperature control system, which can set the heating temperature arbitrarily and automatically control the working state of the heater, especially suitable for filtration of high-viscosity lubricating oil. The treated lubricating oil has low emulsification value, high filtration precision and low impurity content, which can meet the parameter requirements after filtration, and can be used repeatedly in high-precision hydraulic, pneumatic, and lubrication equipment at home and abroad. The high viscosity mobile oil purifier machine can also be used for long-distance, high-lift refueling and oil filling. High viscosity mobile oil purifier is suitable for purification and regeneration of various lubrication in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and other industries.
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features
*The special pump for high-viscosity oil is used to deliver smooth fluid, no pulsation, low noise, low vibration, and strong self-priming ability.
*It can filter a variety of corrosive media, and the operating temperature can reach 200 °C.
*Especially suitable for filling and filtering of high viscosity oil.
*The pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
*Adopt thermal relay protection to prevent motor damage caused by motor overload.
*The oil suction port coarse filter protects the oil pump and prolongs the service life of the main filter.
*According to the different needs of users, the fine filter can choose different precisions to meet the required requirements.
Applications
*To filter high-viscosity gear oils or lubricants
*The by-pass filtration for working hydraulic lubricants system
