Product Details

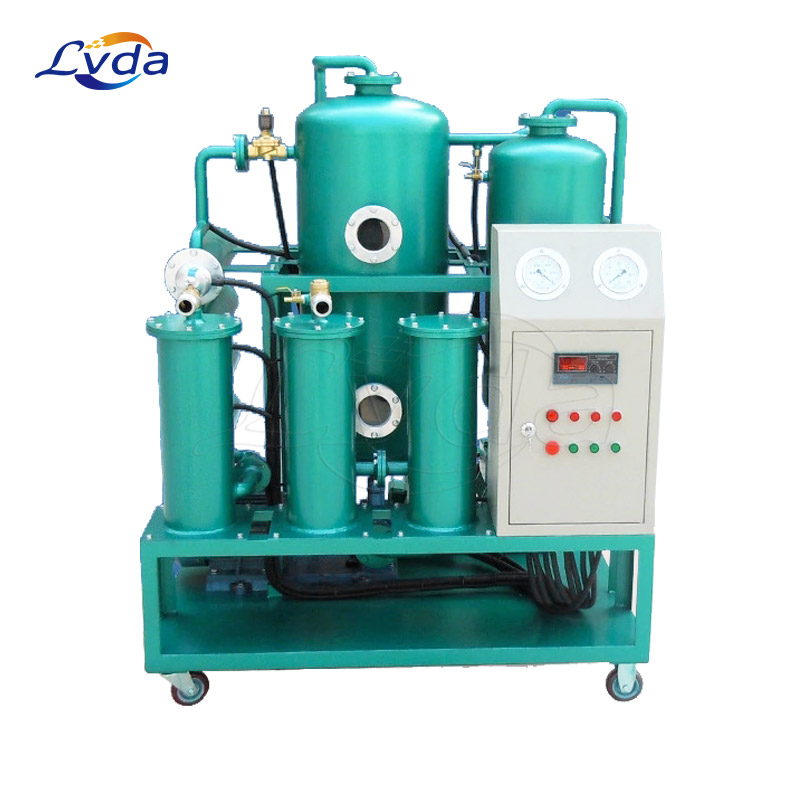

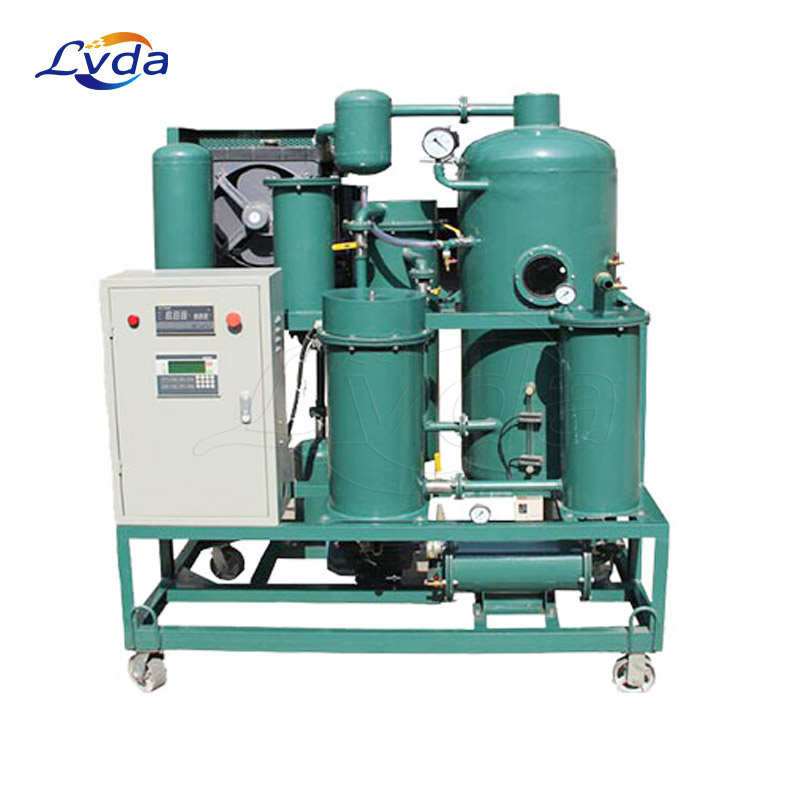

Our high viscosity oil filter oil purifier is mainly used in various industries such as electric power, petroleum, chemical industry, mining, metallurgy, manufacturing and so on.
Various types of substandard insulating oil, such as No. 10, No. 25, No. 45 transformer oil, transformer oil, switch oil, etc. This machine adopts three-dimensional compound flash evaporation technology, which can quickly and effectively remove the moisture, gas (hydrogen, acetylene, methane, etc.) harmful components in the insulating oil under the state of vacuum negative pressure, restore and improve the insulating performance of the insulating oil, and effectively guarantee The electrical equipment operates safely and normally. This machine can also be used for different purposes such as vacuum drying, vacuum oil injection, and hot oil circulation for power equipment, such as transformers, capacitors, etc.
Product Description:
1. The special pump for high-viscosity oil is used to deliver smooth fluid, no pulsation, low noise, low vibration, and strong self-priming ability.
2. It can filter a variety of corrosive media, and the operating temperature can reach 200 °C.
3. Especially suitable for filling and filtering of high viscosity oil.
4. The pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
5. Adopt thermal relay protection to prevent motor damage caused by motor overload.
6. The oil suction port coarse filter protects the oil pump and prolongs the service life of the main filter.
7. According to the different needs of users, the fine filter can choose different precisions to meet the required requirements.
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features
The multi-stage precision filtration system adopts the mesh filter element of AVIC Filter Factory combined with the impurity removal technology of polymer filter material imported from the United States, which realizes the high efficiency of solid-solid separation and solid-liquid separation.
The new high-efficiency far-infrared carbon fiber heating system has low heating load, uniform heating and low energy consumption.
Using the whole machine interlocking protection device, the heater, oil pump and liquid level controller work together.
Applications
Filtration and filling of high viscosity lubricating oil.
Bypass filtration when working with high viscosity lubricating oil systems.
Electronics and pharmaceuticals: used for pretreatment and filtration of reverse osmosis water and deionized water, pretreatment of cleaning solution and glucose.
Textile and packaging: The filter element is used for the purification and uniform filtration of polyester melt in the wire drawing project, the protection and filtration of the air compressor, and the oil and water removal of the compressor.
Thermal power and nuclear power: purification of steam turbine, boiler lubrication system, speed control system, fan and dust removal system.
