Product Details

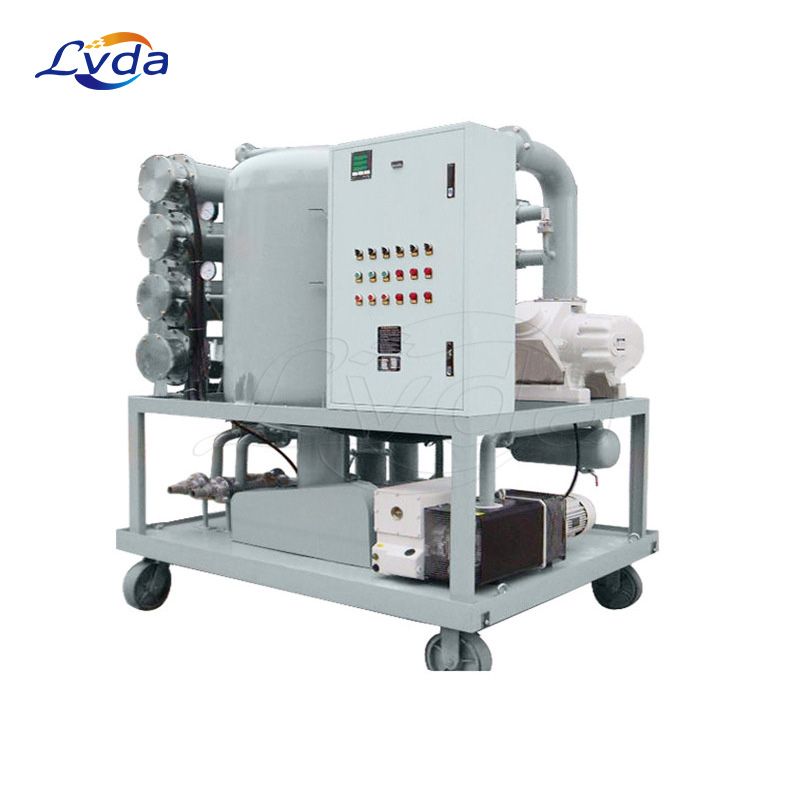

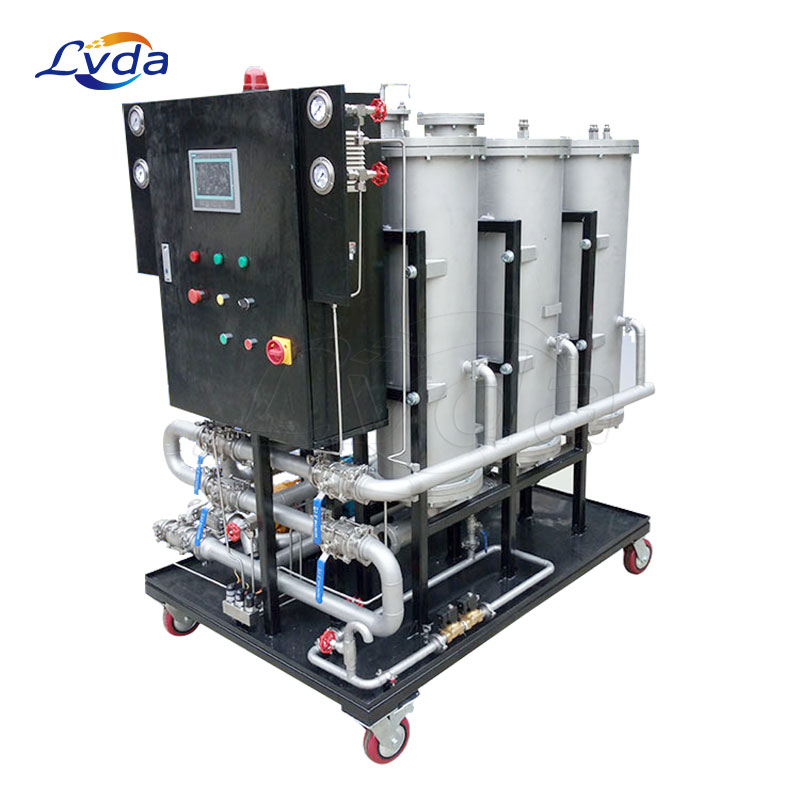

The high-viscosity oil filter is a device for filtering and purifying high-viscosity oil. It can meet the needs of customers to filter various high-viscosity oils. The modified oil purifier has many advantages such as fast filtration, high precision, low noise, and easy movement.
The high-viscosity oil purifier is a device for filtering and purifying high-viscosity oil. It can meet the needs of customers to filter various high-viscosity oils. The modified oil purifier has many advantages such as fast filtration, high precision, low noise, and convenient movement. It can be widely used in lubricating oil stations, gear oil stations, and waste oil reuse. It is specially developed for the hydraulic lubrication systems of various steel mills, steel making, steel pipes, continuous rolling, profiles, etc. It can effectively remove impurities and water in the oil, and has the function of vacuum dehydration. It is suitable for the filtration and dehydration of precision hydraulic oil and lubricating oil with viscosity in the range of 0~640mp.s. The filter element adopts gradual consolidation pore size filter material, which has large scale holding capacity, high filtration precision, and maintains the cleanliness of oil. Levels 6-7 in the NAS.1638 standard.
Precautions: In the selection, you must choose the appropriate filtration and purification equipment according to your own oil viscosity value (oil grade). The high viscosity of the oil means that the oil is thick and not easy to flow. When filtering this type of oil, the precision should not be too high. Too high precision will cause the pressure difference of the filter element to rise rapidly and affect the service life of the filter element.
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features
The oil purifier includes a special high-viscosity oil gear pump driven by a high-efficiency motor, which has the characteristics of low noise, strong self-priming ability and stable operation.
1. The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
2. Adopt thermal relay protection to prevent motor damage caused by motor overload.
3. The oil suction port coarse filter protects the oil pump and prolongs the service life of the main filter.
4. The fine filter can be adjusted according to the different needs of users, and the accuracy of the cascade ratio can ensure the filtering effect and the smooth operation of the equipment.
5. The oil filter housing adopts a quick-opening structure, which can quickly and quickly open the upper cover and replace the filter element without any tools. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.
6. Equipped with a heater, which can heat high viscosity oil to reduce the viscosity of oil.
Applications
Filter when filling high viscosity hydraulic oil and lubricating oil
High-viscosity oil is filtered in the bypass circulation of hydraulic and lubricating systems
