Product Details

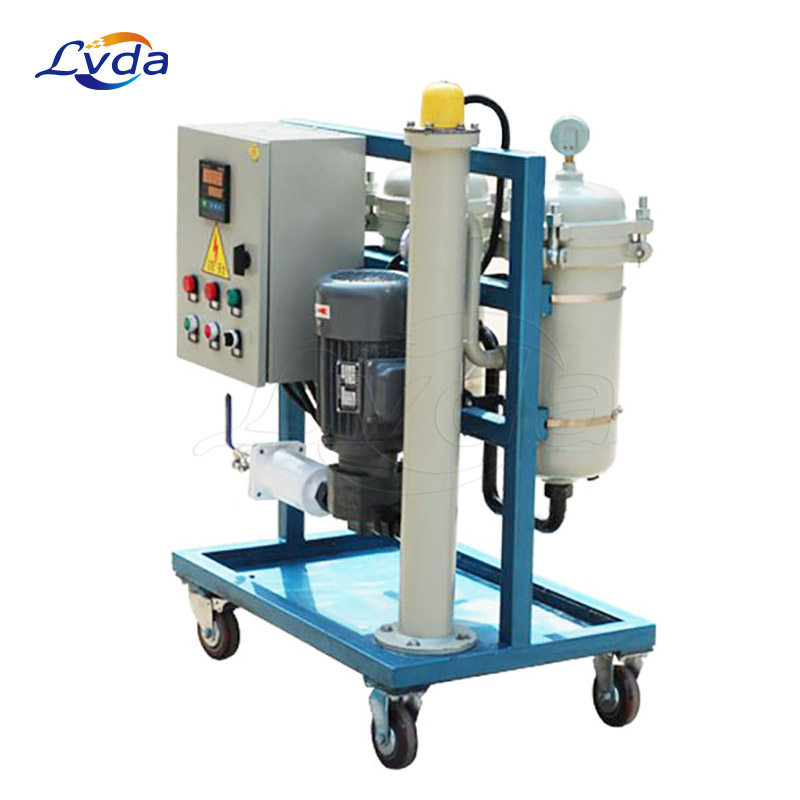

AOP-VS series high-viscosity oil purifier is a device for filtering and purifying high-viscosity oil. It can meet the needs of customers to filter various high-viscosity oils. The modified oil purifier has many advantages such as fast filtration, high precision, low noise, and easy movement.

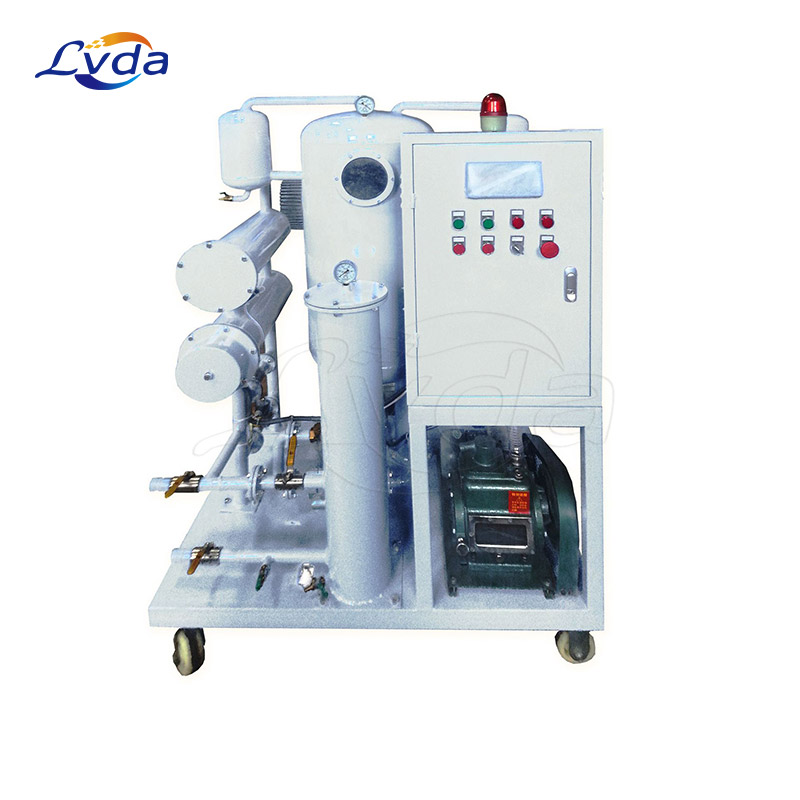

The high-viscosity oil purifier is a device for filtering and purifying high-viscosity oil. It can meet the needs of customers to filter various high-viscosity oils. The modified oil purifier has many advantages such as fast filtration, high precision, low noise, and convenient movement. It can be widely used in lubricating oil stations, gear oil stations, and waste oil reuse. It is specially developed for the hydraulic lubrication systems of various steel mills, steel making, steel pipes, continuous rolling, profiles, etc. It can effectively remove impurities and water in the oil, and has the function of vacuum dehydration. It is suitable for the filtration and dehydration of precision hydraulic oil and lubricating oil with viscosity in the range of 0~640mp.s. The filter element adopts gradual consolidation pore size filter material, which has large scale holding capacity, high filtration precision, and maintains the cleanliness of oil. Levels 6-7 in the NAS.1638 standard.
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary
filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating
module, Omission: no heating module, R: heating module
****- oil pump,
Omission: gear pump, LG: screw pump
Features
This oil purifier adopts a special pump for high- -viscosity oil, which conveys the fluid smoothly, without pulsation, low noise, low vibration, and has a strong self- -priming ability.
It can filter a variety of corrosive media ,particularly suitable for the fling and filtration of high viscosity oils.
The pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
Thermal relay protection is used to prevent motor damage caused by motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main filter.
The fine filter can be selected according to the different needs of users with different precision to achieve the required results.
Applications
●To filter high-viscosity lubricants
●To fill-up high-viscosity lubricants
●The by-pass filtration for working hydraulic lubricants system
