Product Details

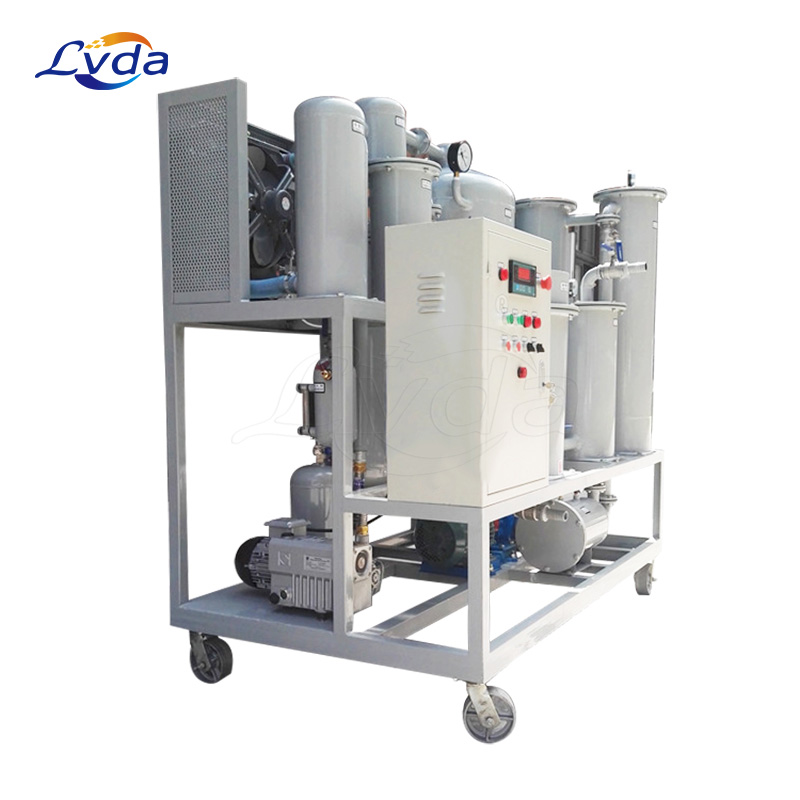

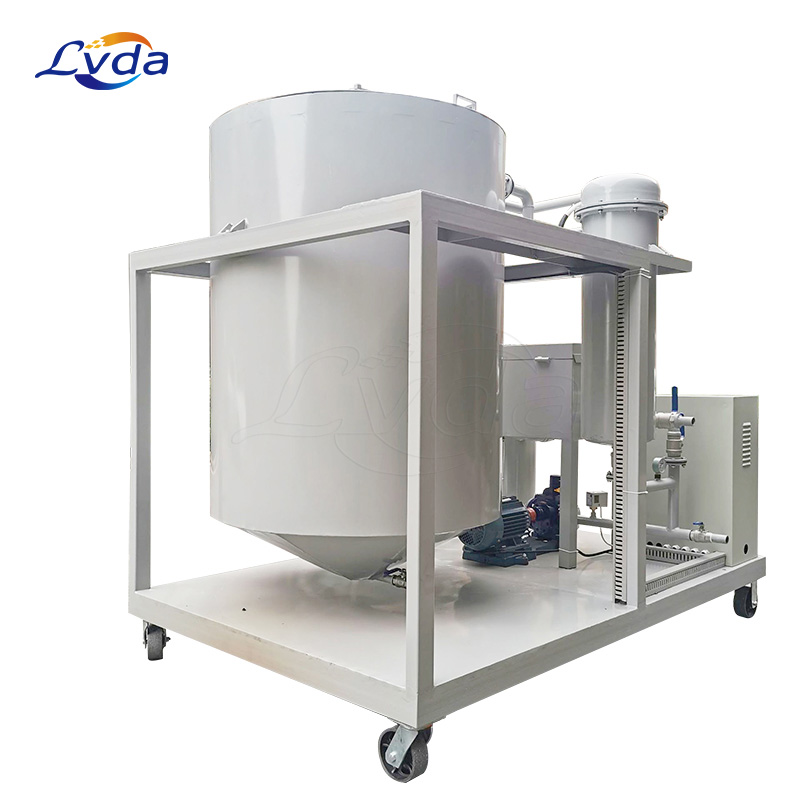

The oil decolorization lube oil filter machine with roots vacuum pump is a china-made machine, it's made in xinxiang, henan province, china.
And the made is made by good materials.
This oil decolorization lube oil filter machine with roots vacuum pump is usually used for regular centralized treatment of scrapped oil products, the oil products can meet the relevant oil product standards and can be reused many times, that greatly saves the company's costs for purchasing new oil and reduces the money of the corporation. At the same time, because the oil is in good condition, the wear and tear of the equipment is reduced, the maintenance cost of the equipment is reduced, and the service life of the equipment is improved.
So,it's a good machine to be used.
Product parameters
| Technical item | Unit |
|
|
| Model |
|
|
|
|
| AD-30 | AD-50 | AD-100 | AD-150 | AD-200 | AD-250 | AD-300 |
| Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 |
| Average power | Kw/h | 7 | 7 | 9 | 9 | 12 | 15 | 15 |
| Heating power | Kw/h | 3 | 4.5 | 6 | 6 | 9 | 9 | 11 |
| Working vacuum | Mpa |
|
|
| -0.04～-0.098 |
|
|
|
| Working oil temperature | ℃ |
|
|
| 30～160 |
|
|
|
| Working pressure | MPa |
|
|
| ≤0.8 |
|
|
|
| With power supply | V |
|
|
| 380 |
|
|
|
| Noise | db(A) |
|
|
| ≤70 |
|
|
|
Features
- Great ability to break emulsification of H.P.M high molecule polymer materials.
- The combination of coalescing separation and vacuum duplex 3D stereo-evaporation, eliminating water.
- Deep and highly precise FH rectangle filtering system.
- Our companys high molecule absorption material technology.
- Regeneration device could effectively remove polar materials, such as acid. free carbon and so on.
- Hydraulic lubricating oil treated by this machine contains low emulsification value, few water and impurities that it can be used repeatedly in the highly prcise hydraulic lubricating equipments at home and abroad.
Applications
This machine is applied to recover and purify various high-precision lubricating oil such as hydraulic oil, biodiesel oil, mechanical oil, polyester oil, coolant oil, gear oil, heat treatment oil, industrial oil, mineral oil, car oil, motor oil, engine oil and so on.
The machine can fast degas, dewater, and remove the impurity and the volatile matter (for example ethy1 alcohol, gasoline, ammonia and so on). Enhances the oil quality, restores the lubricating oil viscosity, augments the flash point and improves the operational performance. This machine suit for many lines, such as the mine, metallurgy, electric power, transportation, manufactures and so on.
